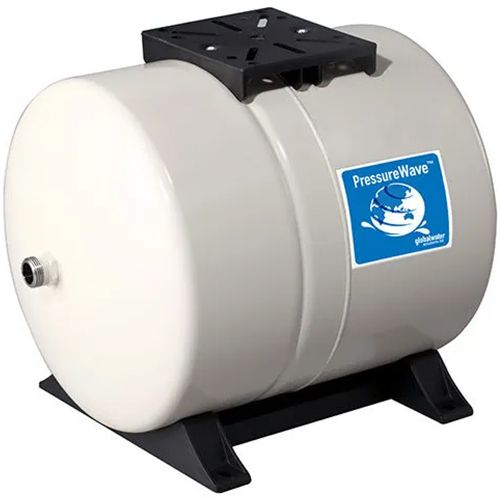

GWS PressureWave 60L Horizontal Inline Pressure Vessel

GWS PressureWave 60L Horizontal Inline Pressure Vessel - PWB-60LH

A horizontal expansion with a 1" BSP connection. GWS PressureWave potable expansion vessels are suitable for use including booster systems, thermal expansion, irrigation systems, and hydraulic hammer arresting.

The PressureWave Series is constructed of a virgin polypropylene liner combined with an FDA approved high grade butyl diaphragm. This is held against the wall of the tank with a steel clench ring. The brass air valve, sealed by a threaded o-ring valve cap, prevents air leaks. Water enters the tank through a patented stainless steel water connection. The diaphragm and liner are both reinforced in specific wear areas for longer life. All internal parts including the air valve are rounded to prevent piercing of the diaphragm in extreme conditions. The water connection uniquely provides a dual water/air seal ensuring a complete leak-free and maintenance-free pressure vessel. On the exterior the almond-colored two-part polyurethane paint finish over an epoxy undercoating provides hundreds of hours of UV and salt spray protection.

Features:

• Maintenance-free
• Diaphragm design
• Patented stainless steel water connection
• Virgin polypropylene liner
• Dual later polyurethane paint finish
• Leak-free, O-ring sealed air valve cap

Specification:

• Minimum operating temperature: 10°C (avoid freezing)
• Maximum operating temperature: 90°C
• Maximum operating pressure: 10 Bar/150 psi
• Pre-Charge pressure: 1.9 Bar/28 psi
• Nominal Volume: 60 litre
