GWS Flow-Thru Anti-Legionella 200L Vertical Composite Pressure Vessel
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below

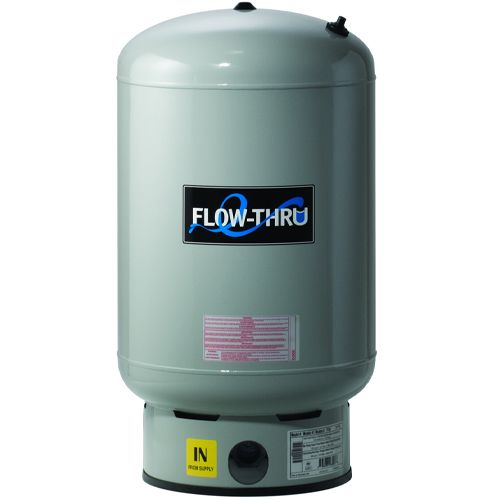

GWS Flow-Thru Anti-Legionella 200L Vertical Composite Pressure Vessel - CFB-200LV
Global Water Solutions now guarantees the freshest water quality possible with the revolutionary Flow-Thru™ series design, available in both composite and steel models. All Flow-Thru tanks feature GWS’s exclusive patented Flow-Thru technology which assures that your system will provide the freshest water quality possible by simply eliminating stagnation!
The Flow-Thru connection diverts system water into, and more importantly out of the tank. Flow-Thru will work with pumped supply or direct connection to the water supply without any pump. This constant flushing action assures that the water in the tank remains as fresh as possible and eliminates the possibility of stagnant water during normal system operation.
Both the steel and composite Flow-Thru tanks incorporate the proven patented controlled action diaphragm (CAD-2). CAD-2’s steel clench ring regulates movement and prevents the diaphragm from rubbing against the tank wall.Flow-Thru is also the ideal solution for constant pressure water system installers seeking to store water without the risk of stagnation.
Flow-Thru tanks are quality tested at several stages on the production line to ensure the structural integrity of every tank.
Features:
- patented Flow-Thru technology for freshest water
- Anti-Legionella Flow-Thru system ensures colonization cannot take place as fresh water is always being forced into the water chamber
- available in composite and steel
- patented CAD-2 diaphragm technology
- no stagnation
- patented water vane, total recirculation of the water
- leak-free air valve cap sealed with closed cell foam
- replaceable tank base (composite models only)
- comprehensive testing
- maintenance-free
Applications include:
- commercial water suply systems
- VFD/VSD controlled pressure boosting system
- heating, ventilation, and air conditioning
- swimming pool and spas
- wet cooling towers
- evaporative cooling
| SKU | CFB-200LV |
|---|---|
| Manufacturers | GWS |
| Manufacturers Warranty | 5 Years |
| Weight | 20.4 Kg |
| Dimensions | 1099mm (h) x 546mm (d) |
| Connection Type | 1 1/4 Inch BSP |
| Max Pressure | 8.6 Bar |
| Max Temperature | 49°C |
