Grundfos UPS 40-80FN (250) Hot Water Service Circulator 240V
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below

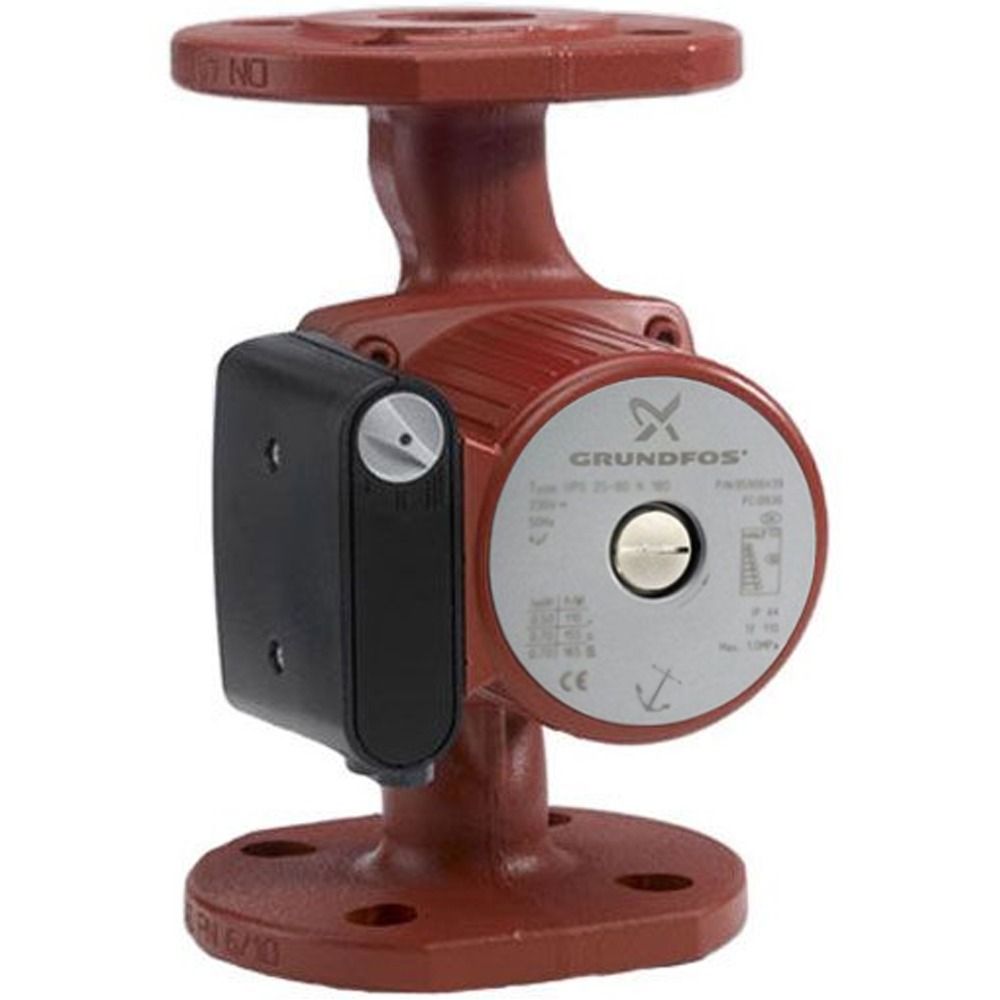

Grundfos UPS 40-80FN (250) Hot Water Service Circulator 240V - 95906774
Grundfos UPS 40-80FN (250) domestic Hot Water Service Circulator pump is suitable for domestic Hot Water applications up to 110°C.
The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricatd by the pumped liquid. The pump is characterized by:
- Ceramic shaft and radial bearings.
- Carbon axial bearing.
- Stainless steel rotor can and bearing plate.
- Corrosion-resistant impeller, Composite.
- Stainless steel pump housing.
Benefits:
- Wide temperature range
- Minimal maintenance, long life
- Low noise
- Low energy consumption
- Simple installation

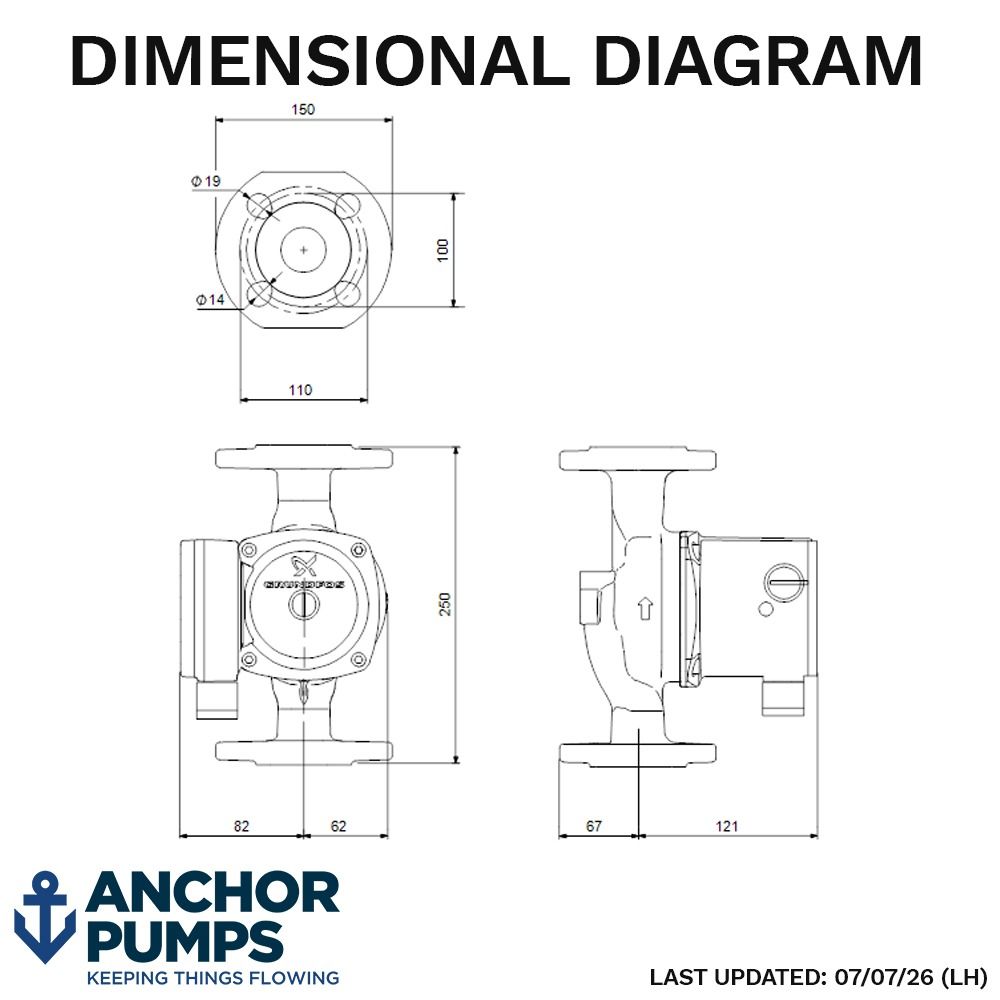

This pump is flanged and has 250mm port to port dimensions. Flanges are not supplied with the pump but are available as an optional extra.

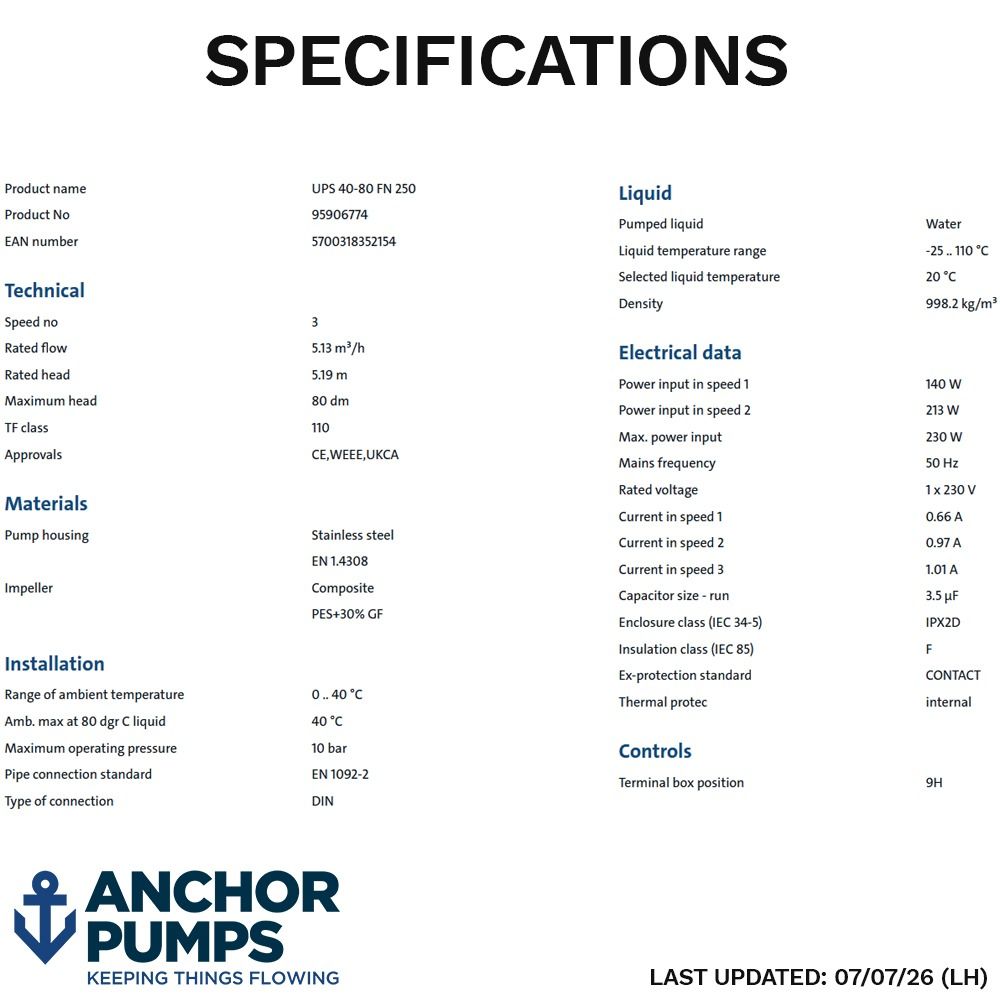

| SKU | 95906774 |
|---|---|
| Manufacturers | Grundfos |
| Manufacturers Warranty | 2 Years |
| GTIN | 5700318352154 |
| Weight | 9.0 Kg |
| Dimensions | 250mm (h) x 147mm (w) x 192mm (d) |
| Connection Type | 40mm Flanged |
| Motor Size | 220W |
| Full Load Current (FLC) | 0.98A at speed 3 |
| Voltage | 240V 1Ph 50Hz |

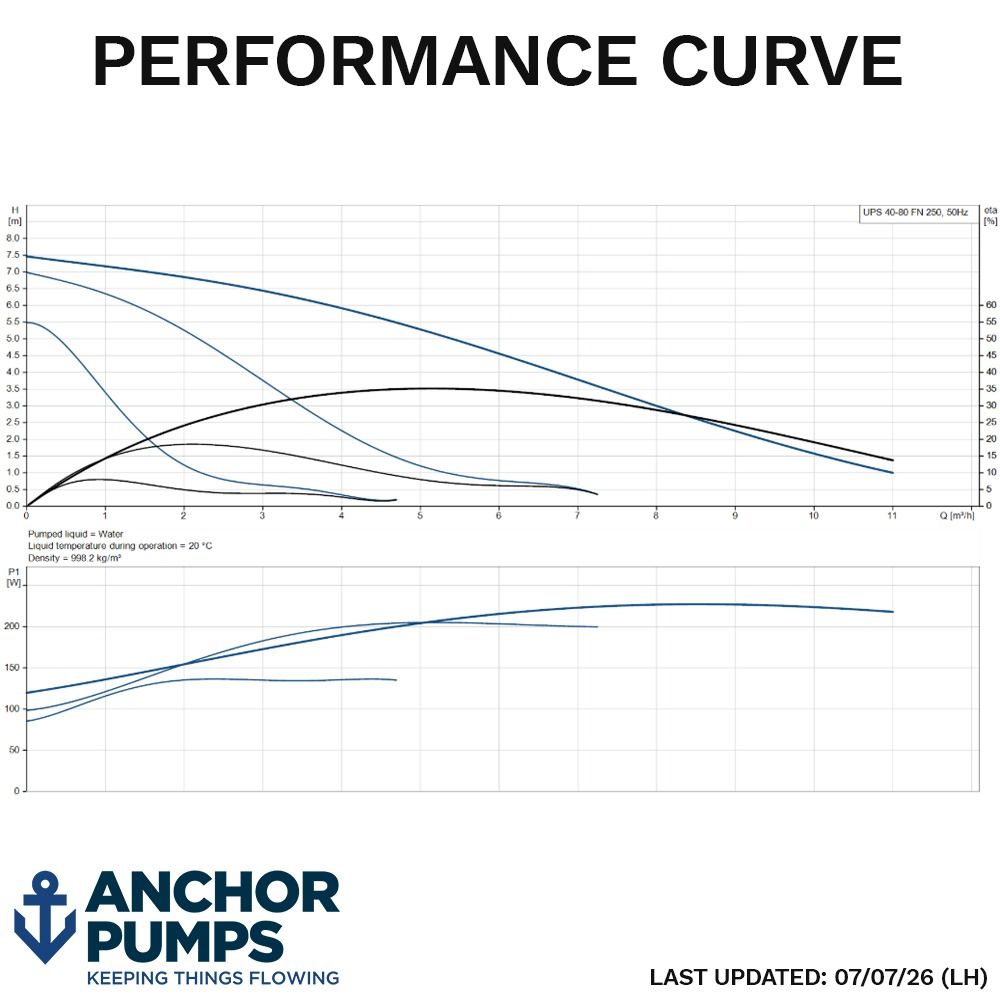

| Max Flow | 11m3/hr |
| Max Head | 8m |
| Max Pressure | 10 Bar |
| Max Temperature | 110 °C |
| Material | Stainless Steel |
| Impeller Material | Composite |
