Grundfos UPS 32-100N (180) Hot Water Service Circulator 240V

SKU
98057249
MRRP £1,341.00 + VAT Our price £774.00 (+ VAT) Incl. VAT: £928.80

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

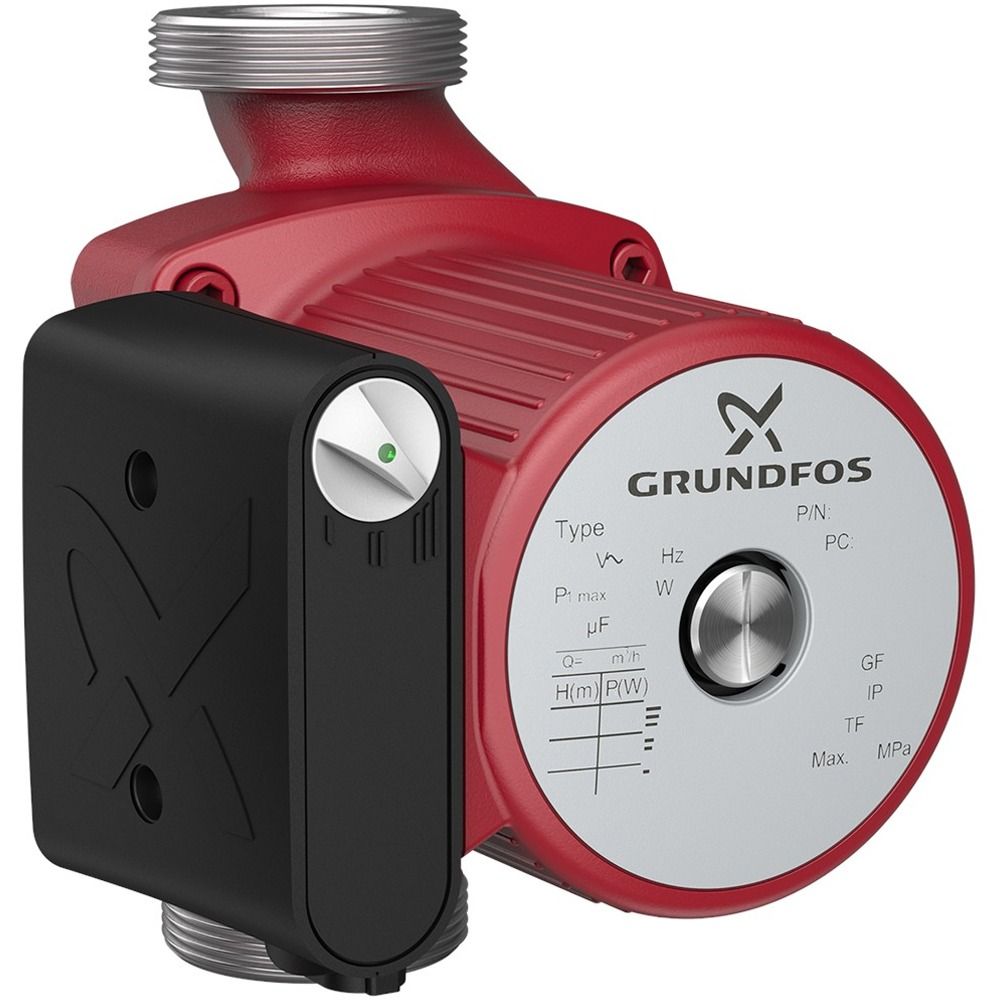

Grundfos UPS 32-100N (180) Hot Water Service Circulator 240V - 98057249

Grundfos UPS 32-100N (180) domestic Hot Water Service Circulator pump is suitable for domestic Hot Water applications up to 110°C.

The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricatd by the pumped liquid. The pump is characterized by:

  • Ceramic shaft and radial bearings.
  • Carbon axial bearing.
  • Stainless steel rotor can and bearing plate.
  • Corrosion-resistant impeller, Composite.
  • Stainless steel pump housing.

Benefits:

  • Wide temperature range
  • Minimal maintenance, long life
  • Low noise
  • Low energy consumption
  • Simple installation

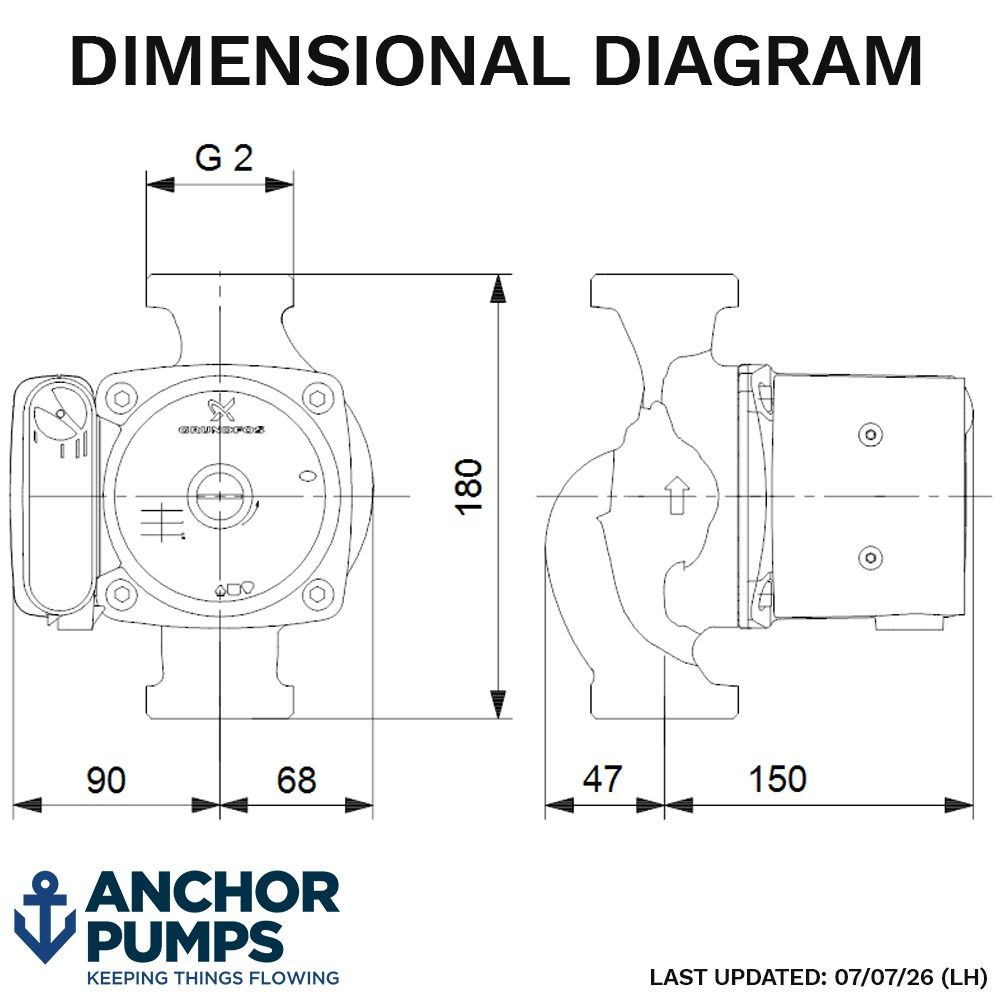

This pump has 180mm port to port dimensions.  Fittings are not supplied with the pump but are available as an optional extra.

More Information
SKU 98057249
Manufacturers Grundfos
Manufacturers Warranty 2 Years
GTIN 5710628240966
Weight 7.0 Kg
Dimensions 180mm (h) x 158mm (w) x 197mm (d)
Connection Type 2 Inch BSP Male
Motor Size 345W
Full Load Current (FLC) 1.52A at speed 3
Voltage 240V 1Ph 50Hz
Max Flow 13m3/hr
Max Head 10m
Max Pressure 10 Bar
Max Temperature 110 °C
Material Stainless Steel
Impeller Material Composite
