Grundfos UPS 25-55N (180) Hot Water Service Circulator 240V

SKU
95906772
MRRP £788.00 + VAT Our price £453.00 (+ VAT) Incl. VAT: £543.60

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

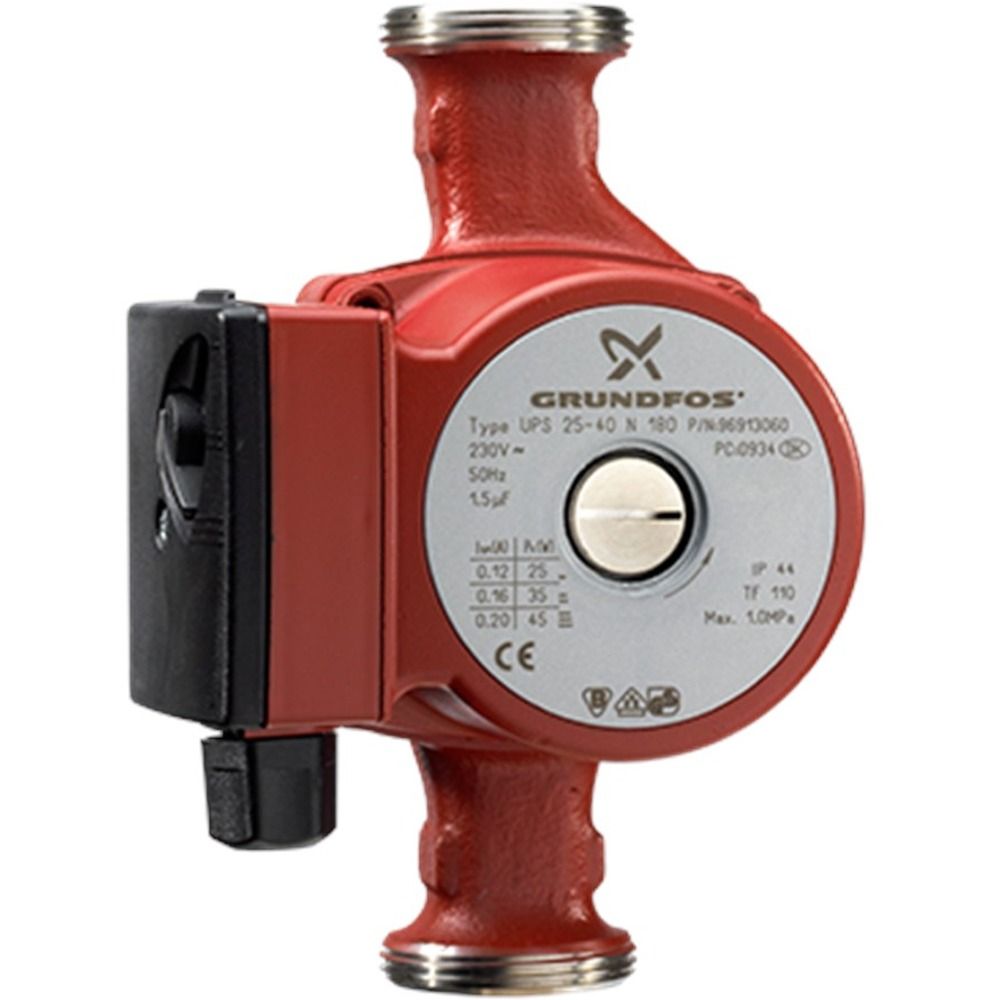

Grundfos UPS 25-55N (180) Hot Water Service Circulator 240V - 95906772

The Grundfos UPS 25-55N (180) Hot Water Service Circulator is suitable for domestic Hot Water applications up to 110°C.

The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricatd by the pumped liquid. The pump is characterized by:

  • Ceramic shaft and radial bearings.
  • Carbon axial bearing.
  • Stainless steel rotor can and bearing plate.
  • Corrosion-resistant impeller, Composite.
  • Stainless steel pump housing.

Benefits:

  • Wide temperature range
  • Minimal maintenance, long life
  • Low noise
  • Low energy consumption
  • Simple installation

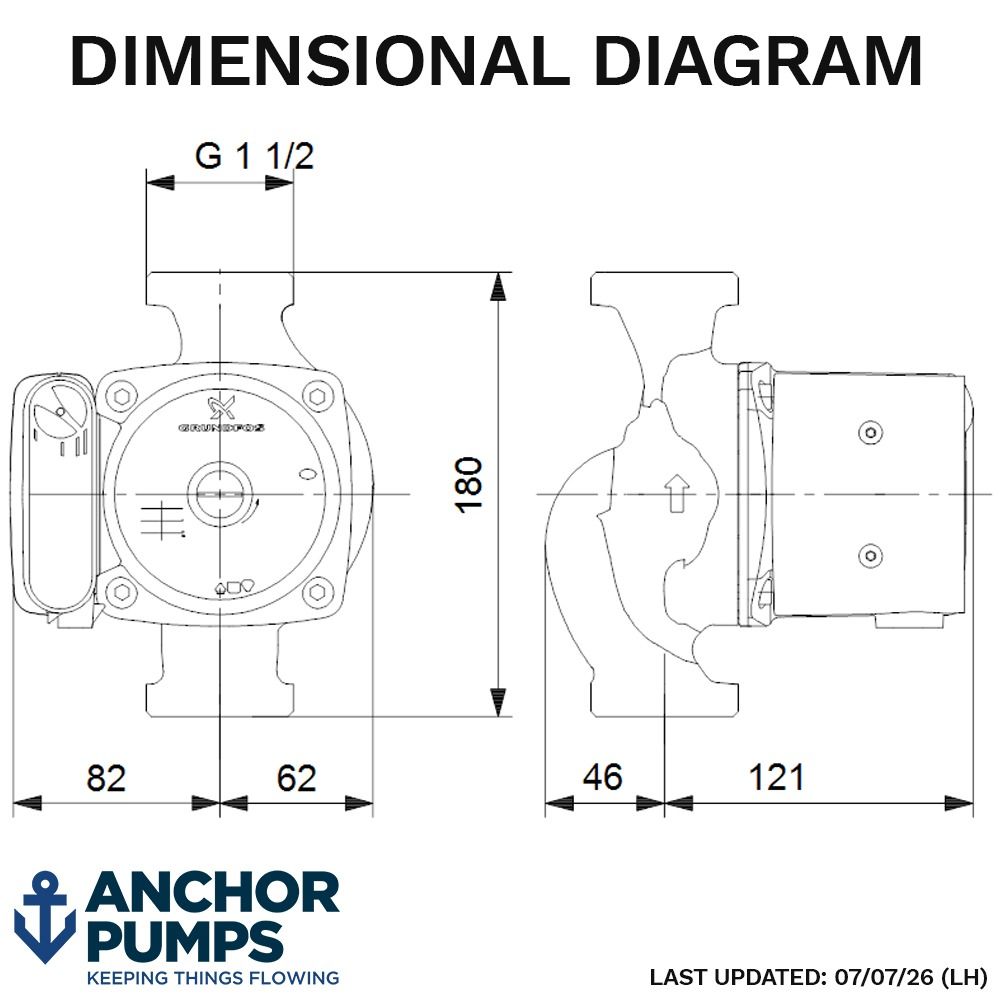

This pump has 180mm port to port dimensions and requires 1.5 inch fittings.  Fittings are not supplied with the pump but are available as an optional extra.

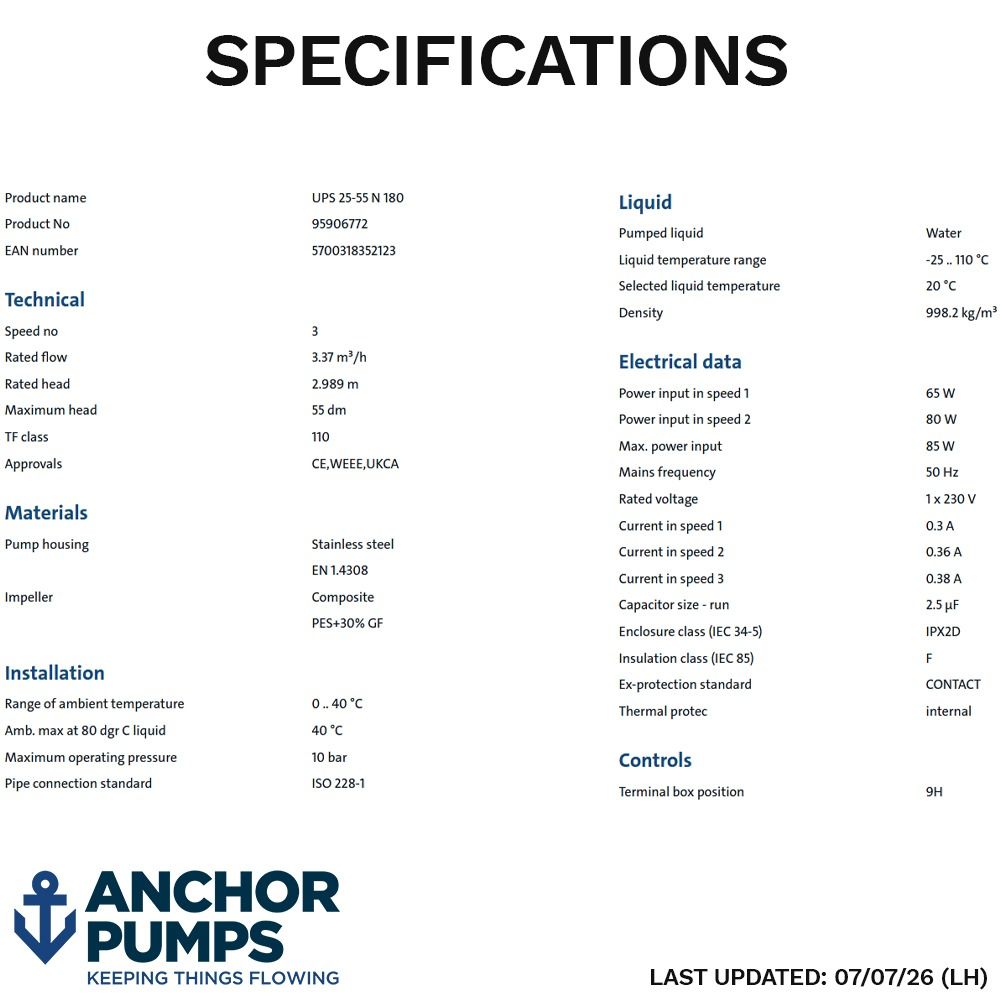

More Information
SKU 95906772
Manufacturers Grundfos
Manufacturers Warranty 2 Years
GTIN 5700318352123
Weight 5.0 Kg
Dimensions 180mm (h) x 147mm (w) x 171mm (d)
Connection Type 1 1/2 Inch BSP
Motor Size 85W
Full Load Current (FLC) 0.38A at speed 3
Voltage 240V 1Ph 50Hz
Max Flow 5.5m3/hr
Max Head 5m
Max Pressure 10 Bar
Max Temperature 110 °C
Material Stainless Steel
Impeller Material Composite
