Grundfos UP 20-30N (150) Hot Water Service Circulator 240V

SKU
98057221
MRRP £531.00 + VAT Our price £302.00 (+ VAT) Incl. VAT: £362.40

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Grundfos UP 20-30N (150) Hot Water Service Circulator 240V - 98057221

Grundfos UP 20-30N domestic Hot Water Service Circulator pump is suitable for domestic Hot Water applications.

The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricatd by the pumped liquid. The pump is characterized by:

  • Ceramic shaft and radial bearings.
  • Carbon axial bearing.
  • Stainless steel rotor can and bearing plate.
  • Corrosion-resistant impeller, Composite.
  • Stainless steel pump housing.

Benefits:

  • Wide temperature range
  • Minimal maintenance, long life
  • Low noise
  • Low energy consumption
  • Simple installation

This pump has 150mm port to port dimensions.  Fittings not included, see related items for 3/4" Brass BSP Union Set required.

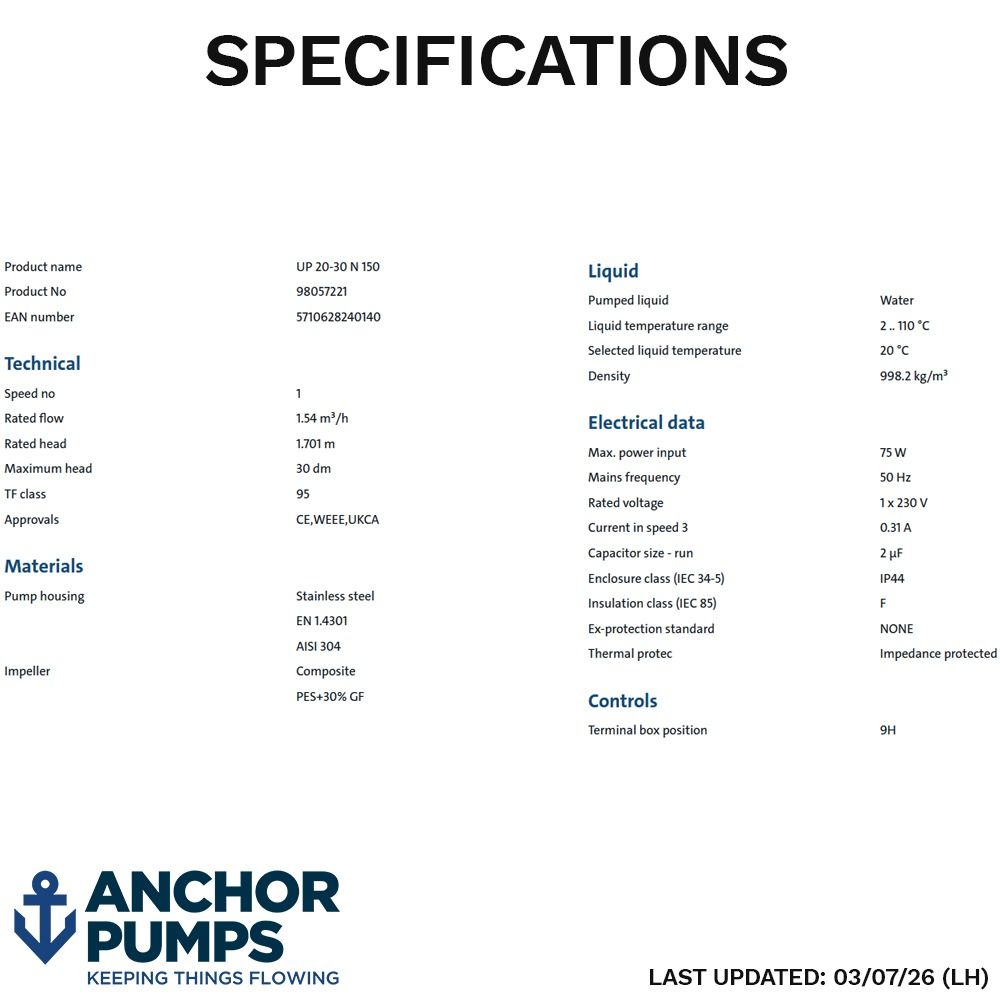

More Information
SKU 98057221
Manufacturers Grundfos
Manufacturers Warranty 2 Years
GTIN 5710628240140
Weight 3.0 Kg

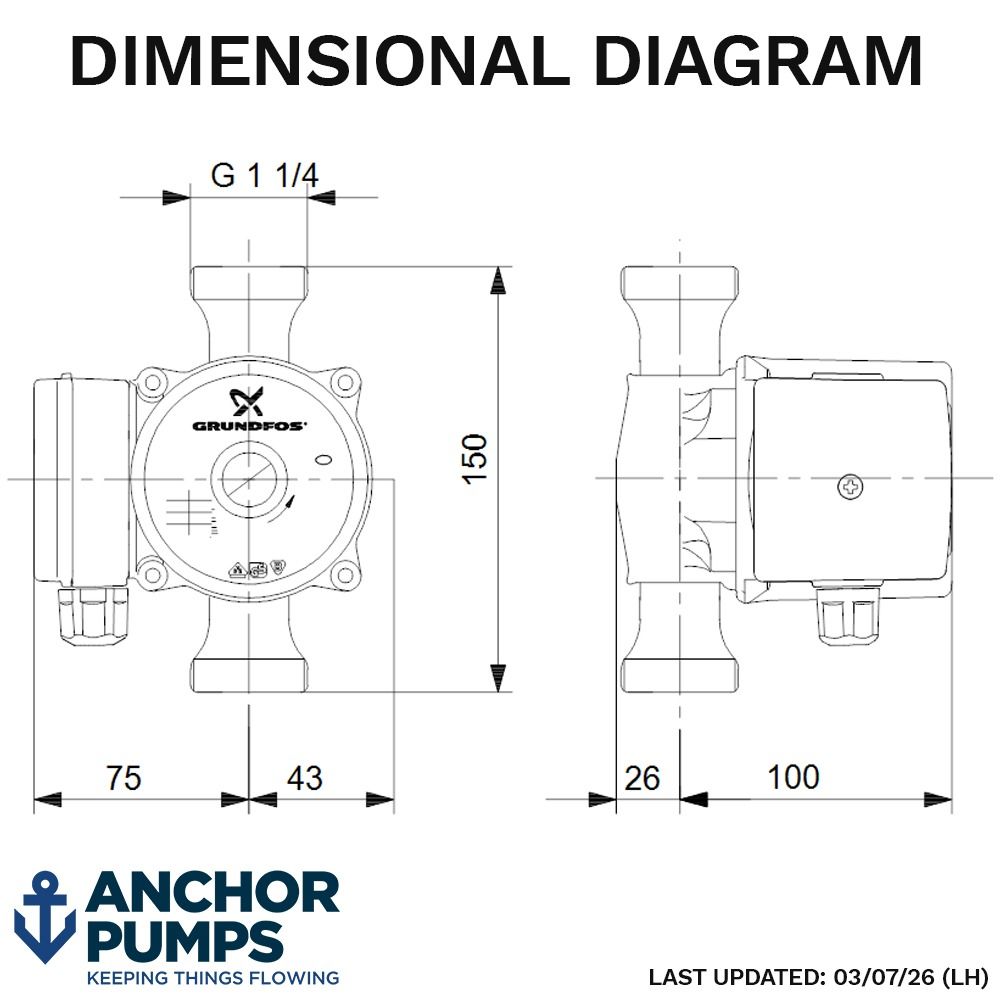

Dimensions 150mm (h) x 118mm (w) x 128mm (d)
Connection Type 1 1/4 Inch BSP
Motor Size 75W
Full Load Current (FLC) 0.31A
Voltage 240V 1Ph 50Hz

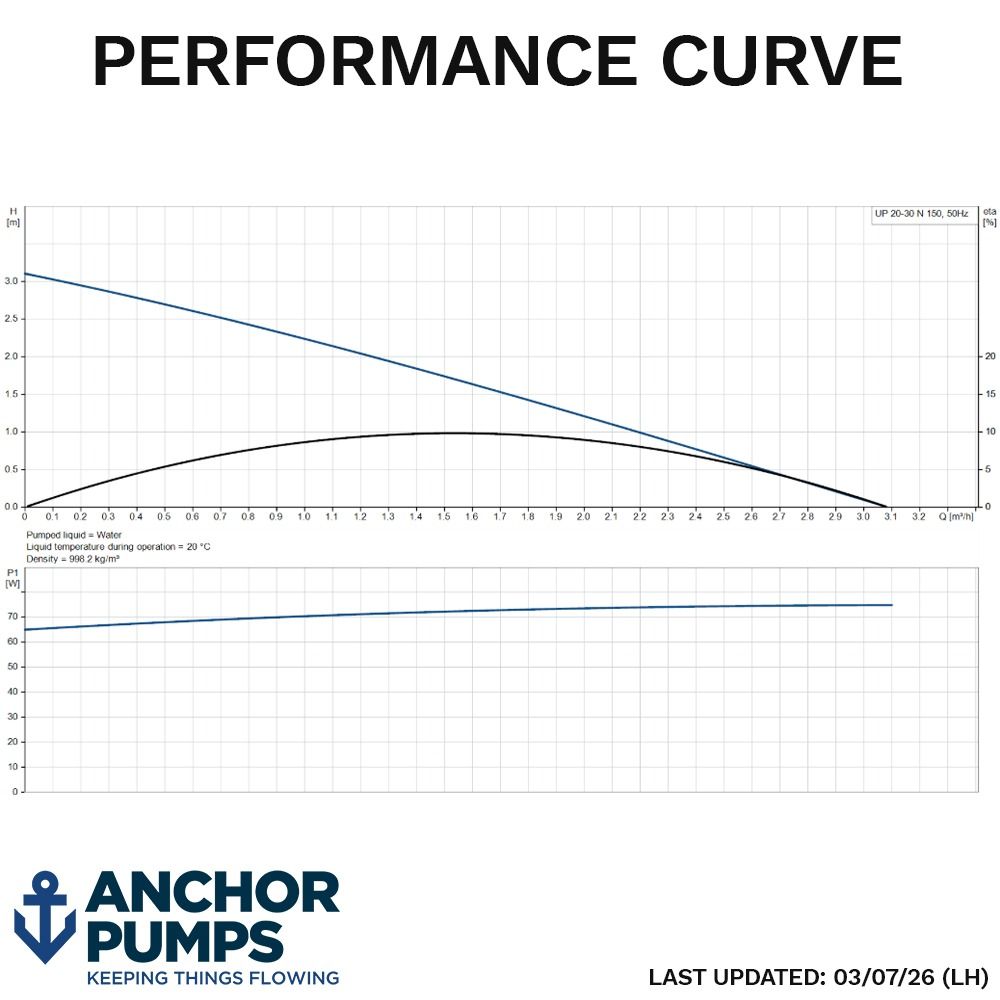

Max Flow 3m3/hr
Max Head 3m
Max Pressure 10 Bar
Max Temperature 110°C
Material Stainless Steel
Impeller Material Composite
