Grundfos MTR 45 7/7 A F A HUUV 30kW Stainless Steel Vertical Immersible Pump 415v

Multistage, immersible, self-priming, centrifugal pump for vertical installation in tanks etc. The pump head and base are in cast iron – all other wetted parts are in stainless steel. The pump has the following characteristics:

  • Dimensions according to DIN 5440.
  • Impellers, intermediate chambers and spline shaft are made of stainless steel.
  • Mechanical shaft seal according to EN 12756.
  • Power transmission via sintered metal split coupling.

A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

More Information
SKU 98513709
GTIN 5711496394201
Weight 338.0 Kg

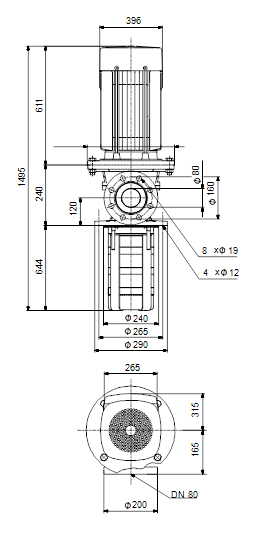

Dimensions 1495mm (h) x 290mm (w) x 480mm (d)
Manufacturers Grundfos
Manufacturers Warranty 2 Years
Material Cast Iron
Impeller Material Stainless Steel
Voltage 415V 3Ph 50Hz
Max Flow 990l/min
Max Head 184m
Full Load Current (FLC) 32,0-29,5 A
Motor Size 30 kW
Immersion Depth 644mm
