Grundfos MAGNA3 D 40-100F (220) Variable Speed Twin Head Circulator 240V

Name: Grundfos MAGNA3 D 40-100F (220) Variable Speed Twin Head Circulator 240V
Brand: Grundfos
SKU: 97924464
Price: 2735 GBP
Availability: InStock

SKU

97924464

MRRP £4,639.00 + VAT Our price £2,735.00 (+ VAT) Incl. VAT: £3282.00

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Choose Gasket Set Option

Choose Flange Set Option

Choose Spacer Kit Option

Choose Bellow Set Option

Installation Bundle

Extended Warranty

Additional 3 year warranty + £1,076.00

Qty

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

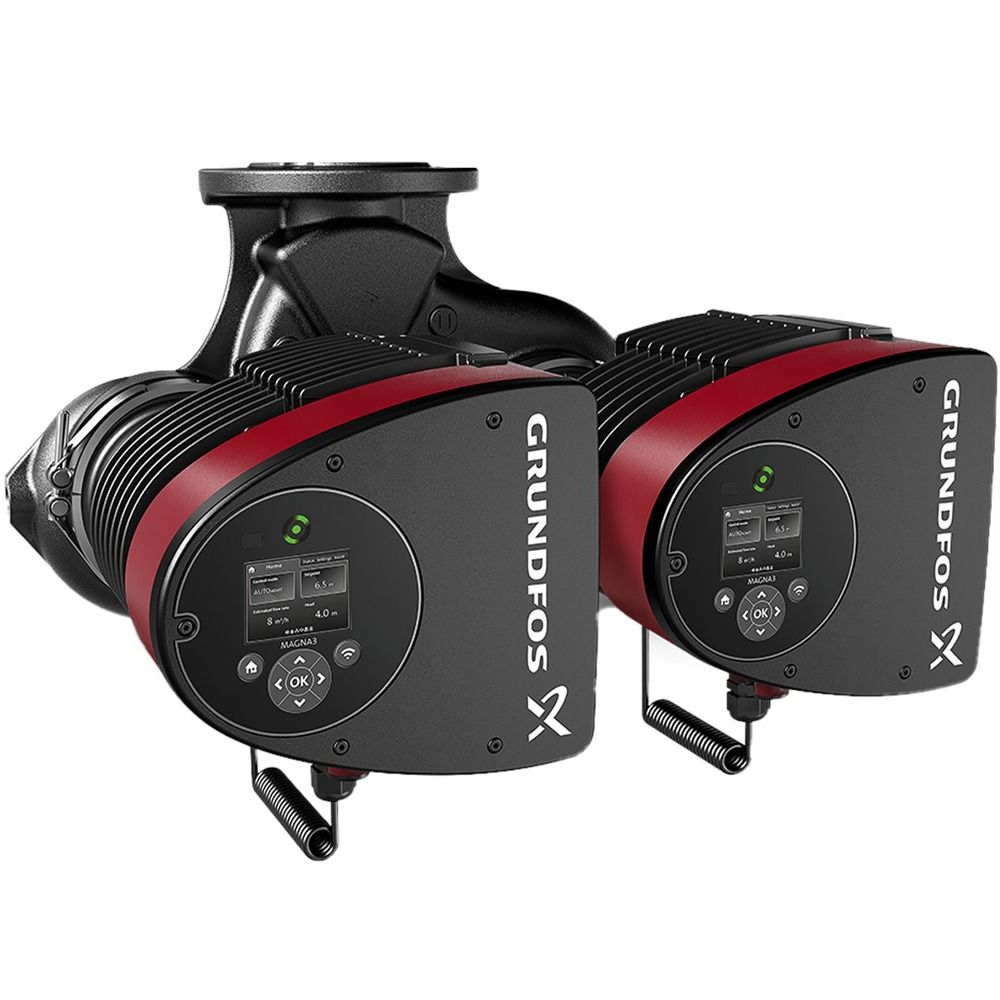

Grundfos MAGNA3 D 40-100F (220) Variable Speed Twin Head Circulator 240V - 97924464

The Grundfos MAGNA3 is a range of medium and large circulator pumps complete with electronically controlled motors.

The MAGNA3 range is designed for circulating liquids in:

Heating systems
Air conditioning and cooling systems
Domestic water systems
Ground-source heat pump systems
Solar heating systems.

Setting the MAGNA3 is simple – just install the pump and leave it on the AUTOADAPT setting, the pump will then analyse the heating system demands and find the optimum setting. It will then continuously adjust its operation to deal with changing system demands.

The new pump also encompasses some new and unique features:

The MAGNA3 features a facility to limit maximum flow removing the need to use a balancing valve on the main flow and return pipe
FLOWADAPT combines the benefits of both the FLOWLIMIT and AUTOADAPT functions together
The MAGNA3 features a built-in heat energy meter. By fitting a separate temperature sensor in the return pipe the energy consumption in the system can be monitored and logged in the MAGNA3. This allows end users to monitor their energy consumption in order to avoid excessive energy bills caused by poor system balance and potential problems with system controls
The MAGNA3 is the most efficient circulator available, with an Energy Efficiency Index (EEI) that already complies with the EuP 2015 requirements and can achieve savings of up to 75% compared to a typical installed circulator

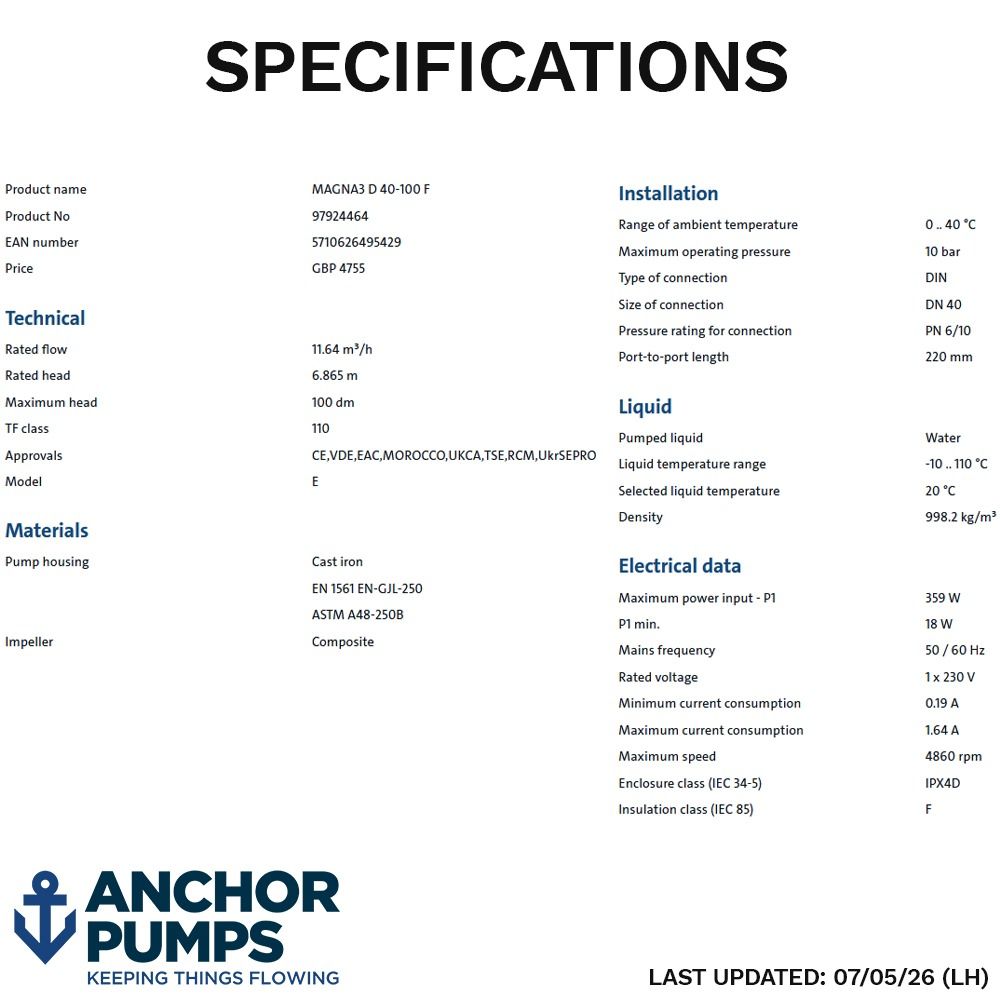

More Information
SKU	97924464
Manufacturers	Grundfos
Manufacturers Warranty	2 Years
GTIN	5710626495429
Weight	36.0 Kg

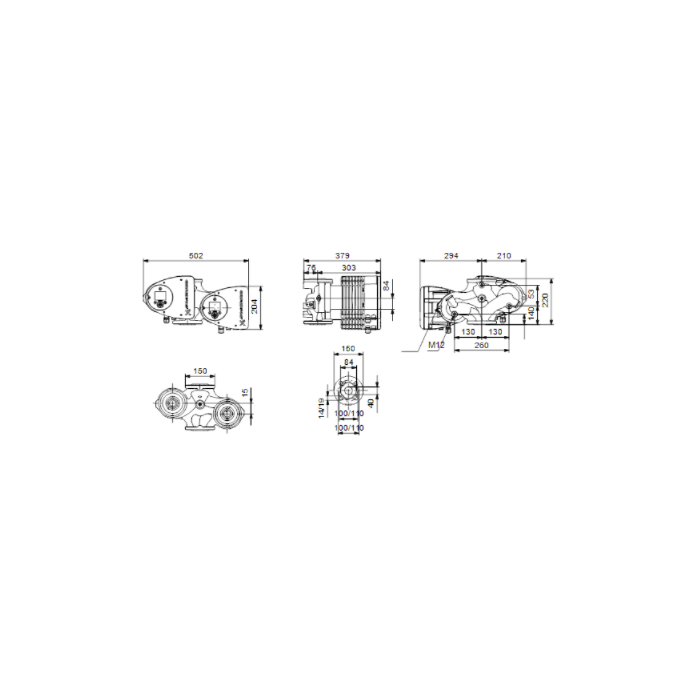

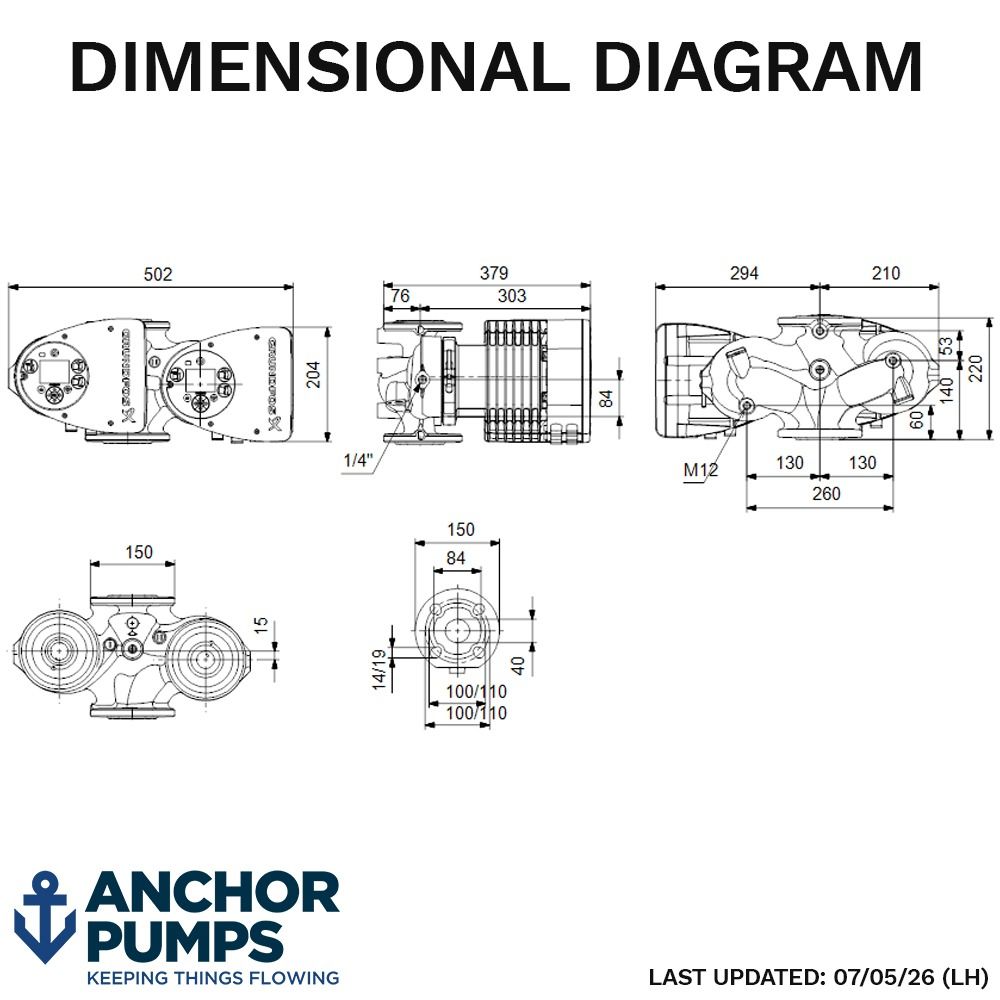

Dimensions	220mm (h) x 379mm (d) x 502mm (w)
Motor Size	18-361W
Full Load Current (FLC)	0.19-1.61A
Voltage	240V 1Ph 50Hz
Max Flow	22.5m3/hr
Max Head	10m
Material	Cast Iron

Delivery & Returns

Delivery

We offer free standard delivery to any UK address on a 3-5 working day delivery time on all orders over the value of £60 + vat. This is not weight restricted

Next day delivery is charged at £8.50 + vat for items under 35kgs. Orders need to be placed before 5pm Mon-Thurs or 4:30 on Friday for guaranteed Next Day Delivery.

Next day delivery is not avaialble for UK Highlands and Islands. Please click the following link to view postcodes/areas that don't qualify for next day delivery.

Due to some product specifications, there may be a lead time of up to 4 weeks. This is only on a small number of products and you will be contacted upon purchase and entitled to a full refund if required.

For Items over 35kgs, please review our delivery charges here

For full delivery terms please click here

International Delivery

Please click here to view International delivery rates.

If you want your order delivered to a remote area please contact our one of our Sales Representatives on 0800 112 3134 before placing your order and we will assist you further.

Returns

Unused, unaltered items may be returned at the buyers expense for credit upon Online Pump Supplies prior written consent and upon the terms specified by Online Pump Supplies. The buyer assumes all risk of loss of such returned goods until actual receipt and acceptance by Online Pump Supplies. Please click here to view Returns information.

Reviews

Downloads

File Downloads

Grundfos Magna3 D 40-100F

(Size: 454.7 KB)

MAGNA / UPS COMPARISON CHART

(Size: 2.8 MB)

MAGNA3 Brochure

(Size: 4.1 MB)

MAGNA3 Conversion Sheet

(Size: 1.2 MB)
