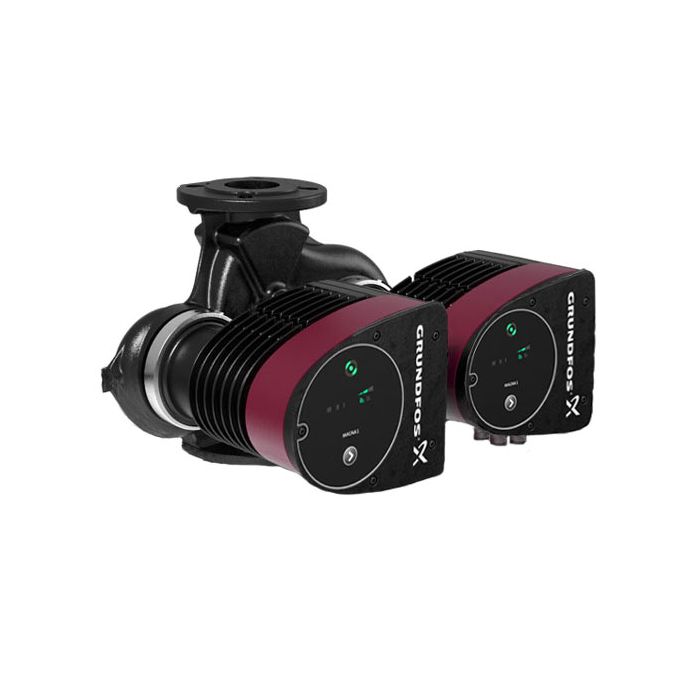

Grundfos MAGNA1 D 50-60F (240) 'A' Rated/EuP Ready Variable Speed Twin Head Circulator 240V (99221339)
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
The Grundfos MAGNA1 D50-60F (240)'A' Rated/EuP Ready variable speed twin head circulator with easy selection of pump setting, no maintenance requirements and extremely low life cycle cost. The MAGNA1 circulator pumps are designed for circulating liquids in heating systems with variable flows and also for domestic hot-water systems.
Applications include:
- Heating systems
- Main pump
- Mixing loops
- Heating and Air-conditioning
The pump is also suitable for systems with hot-water priority as an external signal can immediately force the pump to operate according to the max. curve, for example in solar-heating systems.
Benefits:
- Safe selection
- Simple installation
- Low energy consumption (MAGNA1 pumps comply with the EuP requirements)
- Nine light fields for indication of pump setting.
- Three proportional-pressure curves, three constant-pressure curves and three fixed-speed curves are available
- Low noise level
- Maintenance free and long life
Liquid:
- Pumped liquid: Water
- Liquid temperature range: -10 .. 110 °C
MAGNA1 D50-40 to 50-80 have 240mm port-to-port dimensions, D50-120 to 50-180 have 280mm port-to-port dimensions and all have 50mm flanged connections.
Please note:
Due to differences in port to port dimensions when replacing MAGNA or UPS/D models with an indicated MAGNA1, a spacer kit may be required. These are available as two kits:
- 40mm MAGNA3 models
- 50mm MAGNA3 models
Each set includes a suitable spacer, a set of extended bolts, nuts and 3 gaskets.
| SKU | 97924394 |
|---|---|
| Manufacturers | Grundfos |
| Manufacturers Warranty | 2 Years |
| GTIN | 5710626494712 |
| Weight | 42.0 Kg |
| Dimensions | 240mm (h) x 515mm (w) x 379mm (d) |
| Motor Size | 20.91-253W |
| Full Load Current (FLC) | 0.22-1.15A |
| Voltage | 240V 1Ph 50Hz |
| Max Flow | 32m3/h |
| Max Head | 6m |
| Material | Cast Iron |
