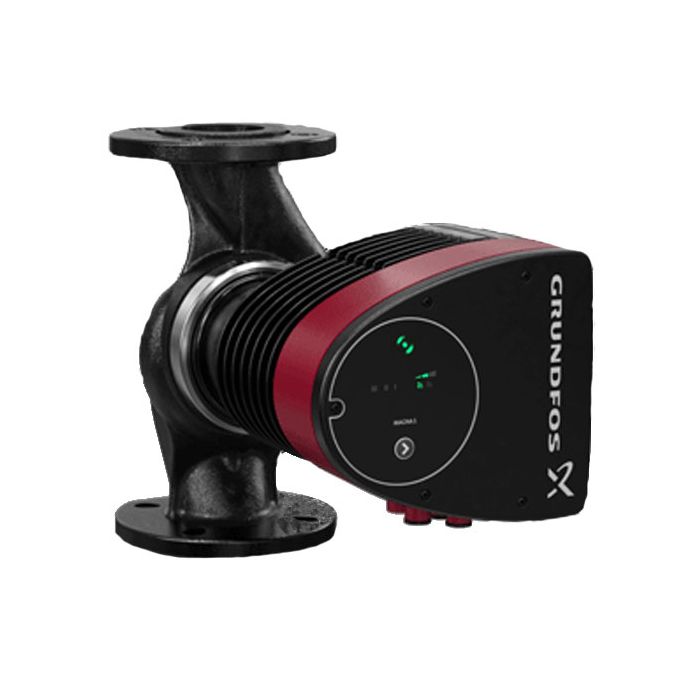

Grundfos MAGNA1 80-120F (360) 'A' Rated/EuP Ready Variable Speed Circulator 240V (99221409)

SKU
97924218
MRRP £4,200.00 + VAT Our price £2,436.00 (+ VAT) Incl. VAT: £2,923.20

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

The Grundfos MAGNA1 80-120F (360)'A' Rated/EuP Ready variable speed circulator with easy selection of pump setting, no maintenance requirements and extremely low life cycle cost.  The MAGNA1 circulator pumps are designed for circulating liquids in heating systems with variable flows and also for domestic hot-water systems.

Applications include:

  • Heating systems
  • Main pump
  • Mixing loops
  • Heating and Air-conditioning

The pump is also suitable for systems with hot-water priority as an external signal can immediately force the pump to operate according to the max. curve, for  example in solar-heating systems.

Benefits:

  • Safe selection
  • Simple installation
  • Low energy consumption (MAGNA1 pumps comply with the EuP requirements)
  • Nine light fields for indication of pump setting.
  • Three proportional-pressure curves, three constant-pressure curves and three fixed-speed curves are available
  • Low noise level
  • Maintenance free and long life

Liquid:

  • Pumped liquid: Water
  • Liquid temperature range: -10 .. 110 °C

MAGNA1 80 range has 360mm port-to-port dimensions and all have 80mm flanged connections.

More Information
SKU 97924218
Manufacturers Grundfos
Manufacturers Warranty 2 Years
GTIN 5710626492923
Weight 36.5 Kg
Dimensions 360mm (h) x 326mm (w) x 413mm (d)
Motor Size 30.5-1277W
Full Load Current (FLC) 0.31-5.59A
Voltage 240V 1Ph 50Hz
Max Flow 55m3/hr
Max Head 12m
Material Cast Iron
