Grundfos MAGNA1 32-60F (220) 'A' Rated/EuP Ready Variable Speed Circulator 240V

Name: Grundfos MAGNA1 32-60F (220) 'A' Rated/EuP Ready Variable Speed Circulator 240V
Brand: Grundfos
SKU: 99221269
Price: 646 GBP
Availability: InStock

SKU

99221269

MRRP £1,094.50 + VAT Our price £646.00 (+ VAT) Incl. VAT: £775.20

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Choose Gasket Set Option

Choose Flange Set Option

Choose Bellow Set Option

Installation Bundle

Qty

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

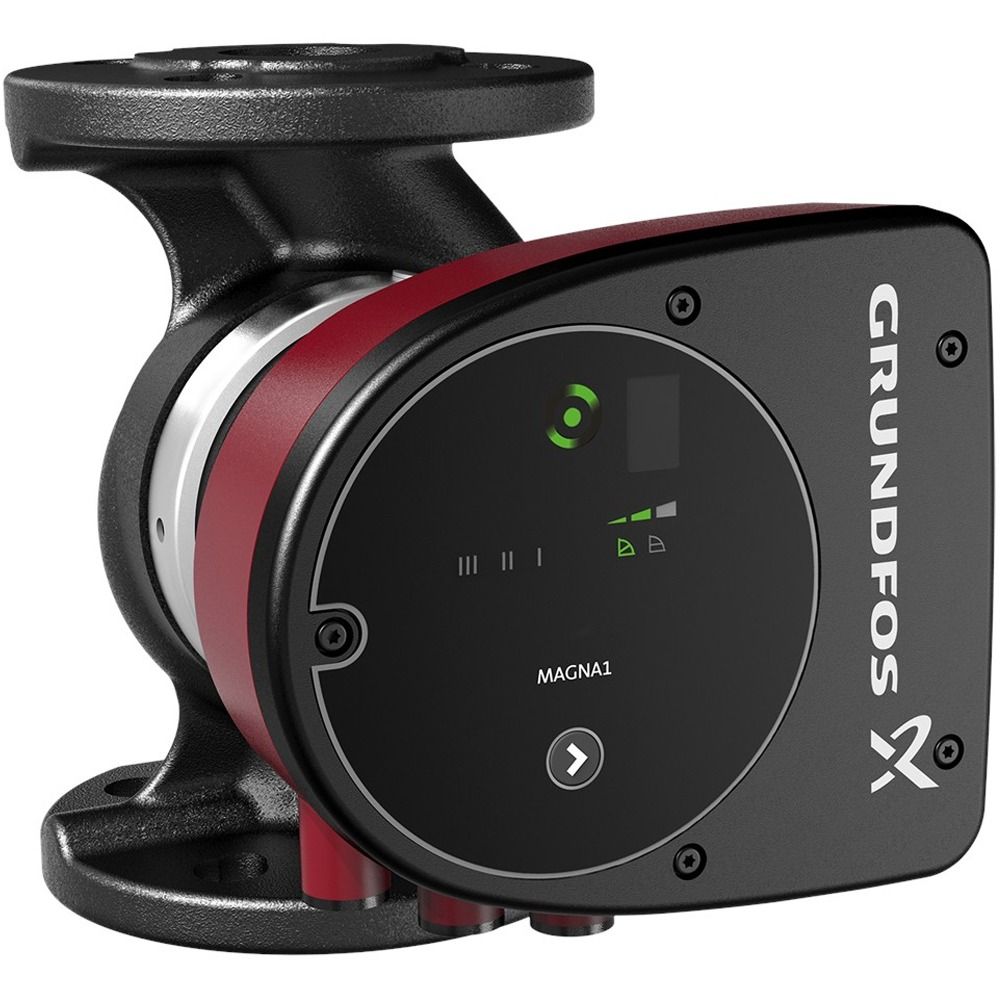

Grundfos MAGNA1 32-60F (220) 'A' Rated/EuP Ready Variable Speed Circulator 240V - 99221269

The new MAGNA1 is the simple option for a job well done. It is the perfect choice when replacing older circulators and due to its compliance with the EuP 2015 regulations, substantial savings on electricity is a reality. The ideal choice for basic performance needs in applications where basic system control and monitoring is desired.

Monitoring via the fault relay, ensuring peace of mind
Digital start/stop input available for remote pump control
Continuous operation and reduced downtime with the wireless twin pump function (available on twin-head pumps)
High energy efficiency resulting in substantial savings on electricity
Easy setup and operation via the simple user interface
No maintenance due to the canned-rotor type design.

MAGNA1 is the simple and efficient choice for most applications including

- Heating
  - Main pump
  - Mixing loops
  - Heating surfaces
- Cooling
  - Air conditioning surfaces
  - Ground source heat pump systems
  - Smaller chiller applications

More Information

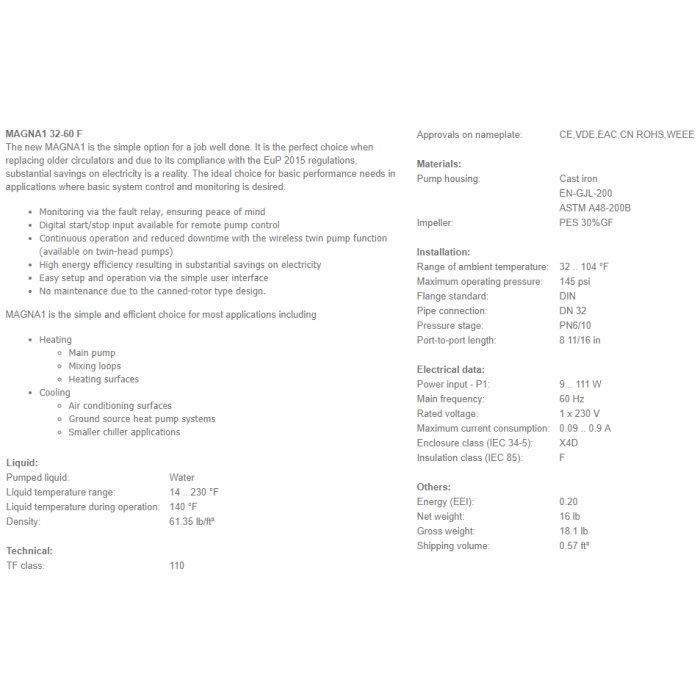

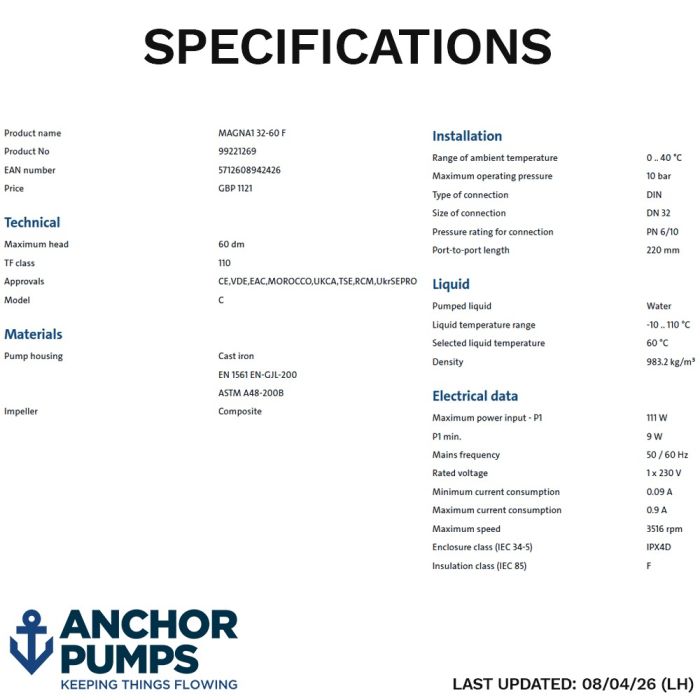

SKU	99221269
Manufacturers	Grundfos
Manufacturers Warranty	2 Years
GTIN	5712608942426
Weight	8.4 Kg

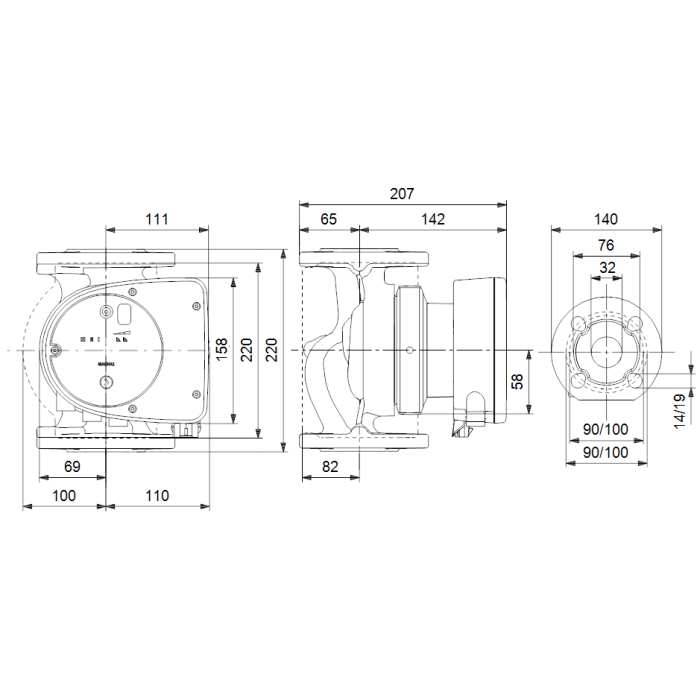

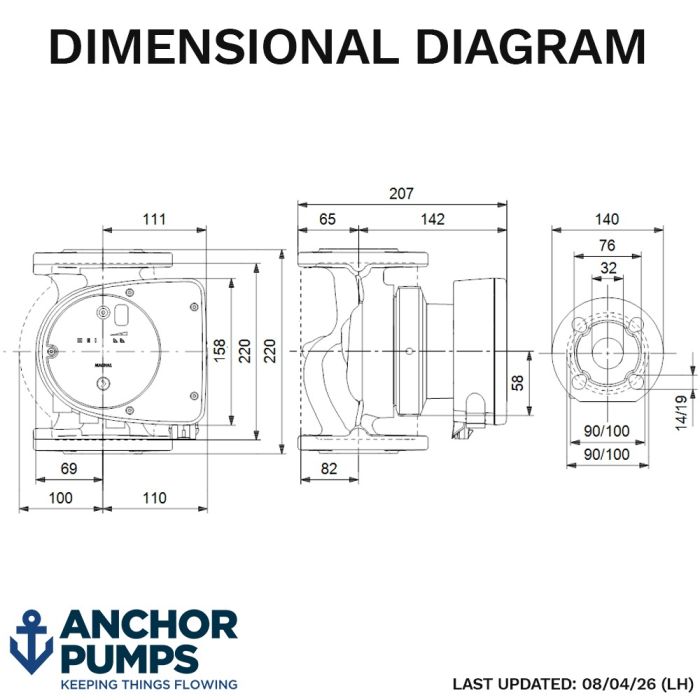

Dimensions	220mm (h) x 210mm (w) x 207mm (d)
Connection Type	32mm Flanged
Motor Size	9-111W
Full Load Current (FLC)	0.09-0.9A
Voltage	240V 1Ph 50Hz
Max Flow	9m3/h
Max Head	6m
Material	Cast Iron
Old Sku	98333844

Delivery & Returns

Delivery

We offer free standard delivery to any UK address on a 3-5 working day delivery time on all orders over the value of £60 + vat. This is not weight restricted

Next day delivery is charged at £8.50 + vat for items under 35kgs. Orders need to be placed before 5pm Mon-Thurs or 4:30 on Friday for guaranteed Next Day Delivery.

Next day delivery is not avaialble for UK Highlands and Islands. Please click the following link to view postcodes/areas that don't qualify for next day delivery.

Due to some product specifications, there may be a lead time of up to 4 weeks. This is only on a small number of products and you will be contacted upon purchase and entitled to a full refund if required.

For Items over 35kgs, please review our delivery charges here

For full delivery terms please click here

International Delivery

Please click here to view International delivery rates.

If you want your order delivered to a remote area please contact our one of our Sales Representatives on 0800 112 3134 before placing your order and we will assist you further.

Returns

Unused, unaltered items may be returned at the buyers expense for credit upon Online Pump Supplies prior written consent and upon the terms specified by Online Pump Supplies. The buyer assumes all risk of loss of such returned goods until actual receipt and acceptance by Online Pump Supplies. Please click here to view Returns information.

Reviews

Downloads

File Downloads

Grundfos Magna1 32-60F PDF

(Size: 1 MB)

Magna 1 Model C Data Book

(Size: 307.1 KB)

Magna 1 Model C Data Book Overview

(Size: 1.4 MB)
