Grundfos MAGNA1 25-80N (180) Variable Speed Single Head Circulator 240Volt

Name: Grundfos MAGNA1 25-80N (180) Variable Speed Single Head Circulator 240Volt
Brand: Grundfos
SKU: 99221225
Price: 853 GBP
Availability: InStock

SKU

99221225

MRRP £1,446.00 + VAT Our price £853.00 (+ VAT) Incl. VAT: £1023.60

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

Grundfos MAGNA1 25-80N (180) Variable Speed Single Head Circulator 240Volt - 99221225

The new MAGNA1 is the simple option for a job well done. It is the perfect choice when replacing older circulators and due to its compliance with the EuP 2015 regulations, substantial savings on electricity is a reality. The ideal choice for basic performance needs in applications where basic system control and monitoring is desired.

Monitoring via the fault relay, ensuring peace of mind
Digital start/stop input available for remote pump control
Continuous operation and reduced downtime with the wireless twin pump function (available on twin-head pumps)
High energy efficiency resulting in substantial savings on electricity
Easy setup and operation via the simple user interface
No maintenance due to the canned-rotor type design.

MAGNA1 is the simple and efficient choice for most applications including

- Heating
  - Main pump
  - Mixing loops
  - Heating surfaces
- Cooling
  - Air conditioning surfaces
  - Ground source heat pump systems
  - Smaller chiller applications

More Information
SKU	99221225
Manufacturers	Grundfos
Manufacturers Warranty	2 Years
GTIN	5712608941986
Weight	4.8 Kg

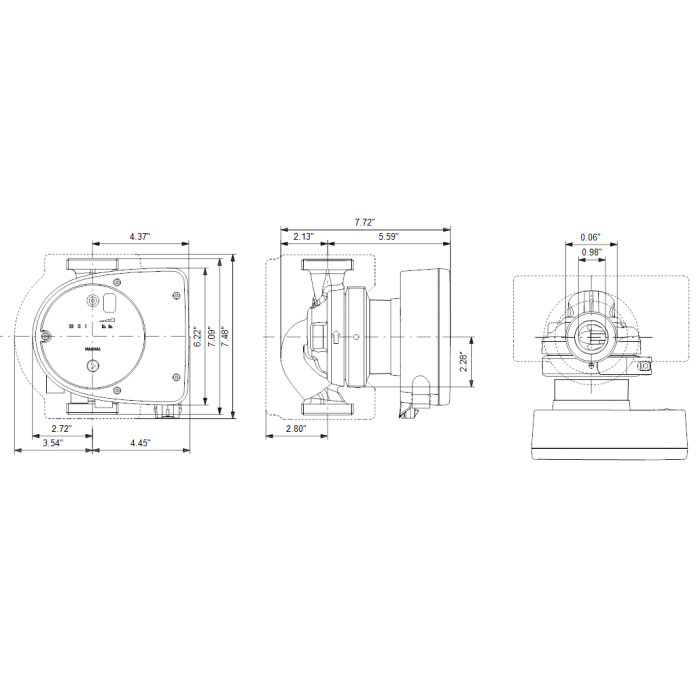

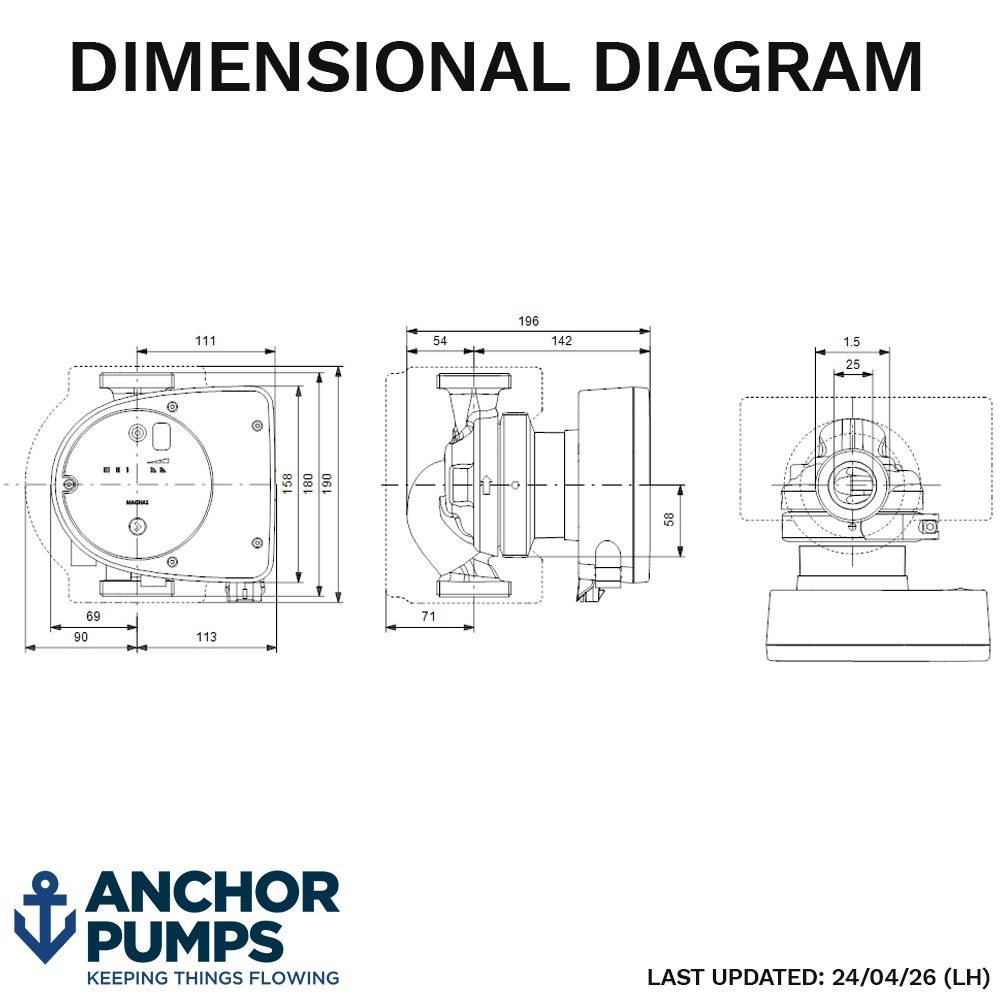

Dimensions	180mm (h) x 180mm (w) x 196mm (d)
Connection Type	1 1/2 Inch BSP
Motor Size	9-128W
Full Load Current (FLC)	0.09-1.03A
Voltage	240V 1Ph 50Hz
Max Flow	8.5m3/hr
Max Head	8.5m
Material	Stainless Steel
Old Sku	98254907
