Grundfos Hydro MPC-E 2 CRIE10-3 (415v) Booster Set
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below

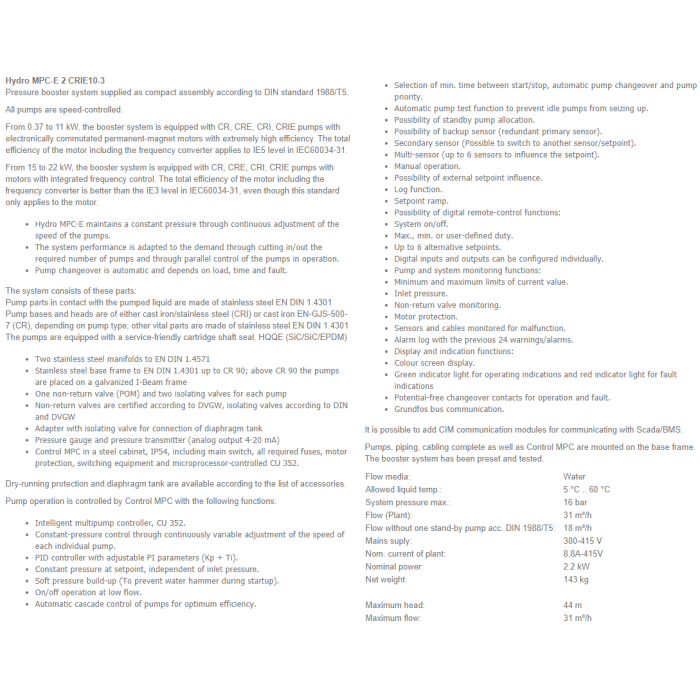

Hydro MPC-E 2 CRIE10-3
Pressure booster system supplied as compact assembly according to DIN standard 1988/T5.
All pumps are speed-controlled.
From 0.37 to 11 kW, the booster system is equipped with CR, CRE, CRI, CRIE pumps with electronically commutated permanent-magnet motors with extremely high efficiency. The total efficiency of the motor including the frequency converter applies to IE5 level in IEC60034-31.
From 15 to 22 kW, the booster system is equipped with CR, CRE, CRI, CRIE pumps with motors with integrated frequency control. The total efficiency of the motor including the frequency converter is better than the IE3 level in IEC60034-31, even though this standard only applies to the motor.
|
The system consists of these parts:
Pump parts in contact with the pumped liquid are made of stainless steel EN DIN 1.4301 Pump bases and heads are of either cast iron/stainless steel (CRI) or cast iron EN-GJS-500-7 (CR), depending on pump type; other vital parts are made of stainless steel EN DIN 1.4301 The pumps are equipped with a service-friendly cartridge shaft seal, HQQE (SiC/SiC/EPDM)
|
Dry-running protection and diaphragm tank are available according to the list of accessories.
Pump operation is controlled by Control MPC with the following functions:
|
| SKU | 98426933 |
|---|---|
| Manufacturers | Grundfos |
| Manufacturers Warranty | 2 Years |
| Weight | 144.0 Kg |
| Inlet Dimension | R 2 1/2 |
| Voltage | 415V 3Ph 50Hz |
| Max Flow | 31 m³/h |
| Max Head | 44 m |
| Max Pressure | 16 bar |
| Max Temperature | 60°C |
| Material | Stainless Steel |
| Country of Manufacture | United Kingdom |
