Grundfos CRN 32-10-2 A F H E HQQE 18.5kW Stainless Steel Vertical Multi-Stage Pump 415v

Name: Grundfos CRN 32-10-2 A F H E HQQE 18.5kW Stainless Steel Vertical Multi-Stage Pump 415v
Brand: Grundfos
SKU: 96536154
Price: 9107 GBP
Availability: InStock

SKU

96536154

MRRP £13,010.00 + VAT Our price £9,107.00 (+ VAT) Incl. VAT: £10,928.40

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Choose Flange Kit Option

Choose Gasket Set Option

Qty

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

Grundfos CRN 32-10-2 A F H E HQQE 18.5kW Stainless Steel Vertical Multi-Stage Pump with DIN flanged connection 415v

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline).

Pump materials in contact with the liquid are in high-grade stainless steel.

Power transmission is via a rigid split coupling.

Pipe connection is via combined DIN-ANSI-JIS flanges.

The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

More Information
SKU	96536154
Manufacturers	Grundfos
Manufacturers Warranty	2 Years
GTIN	5700397563779
Weight	247.0 Kg

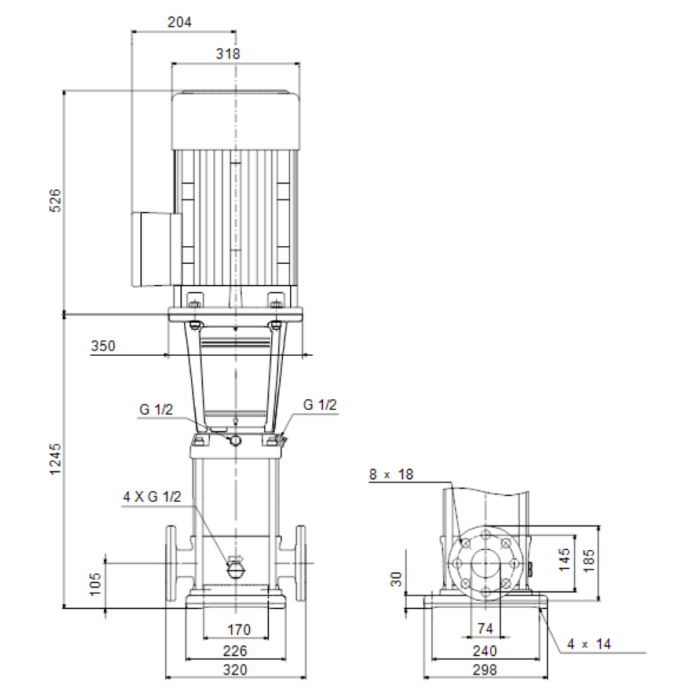

Dimensions	1771mm (h) x 298mm (w) x 320mm (d)
Inlet Dimension	DN65
Discharge Dimension	DN65
Motor Size	18.5 kW
Full Load Current (FLC)	20,0-18,8 A
Voltage	415V 3Ph 50Hz
RPM	2934rpm
Max Flow	40.68m3/hr
Max Head	187m
Max Temperature	120 °C
Material	Stainless Steel
Impeller Material	Stainless Steel
