Grundfos CRN 15-8 A P A E HQQE 7.5kW Stainless Steel Vertical Multi-Stage Pump 415v

Name: Grundfos CRN 15-8 A P A E HQQE 7.5kW Stainless Steel Vertical Multi-Stage Pump 415v
Brand: Grundfos
SKU: 96501953
Price: 3661 GBP
Availability: InStock

SKU

96501953

MRRP £5,229.00 + VAT Our price £3,661.00 (+ VAT) Incl. VAT: £4393.20

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Choose Coupling Kit Option

Choose Gasket Set Option

Qty

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

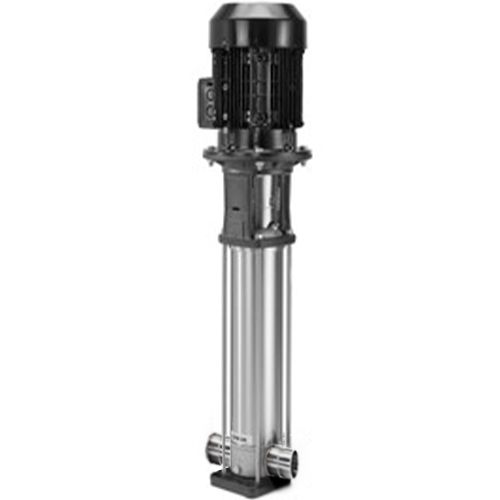

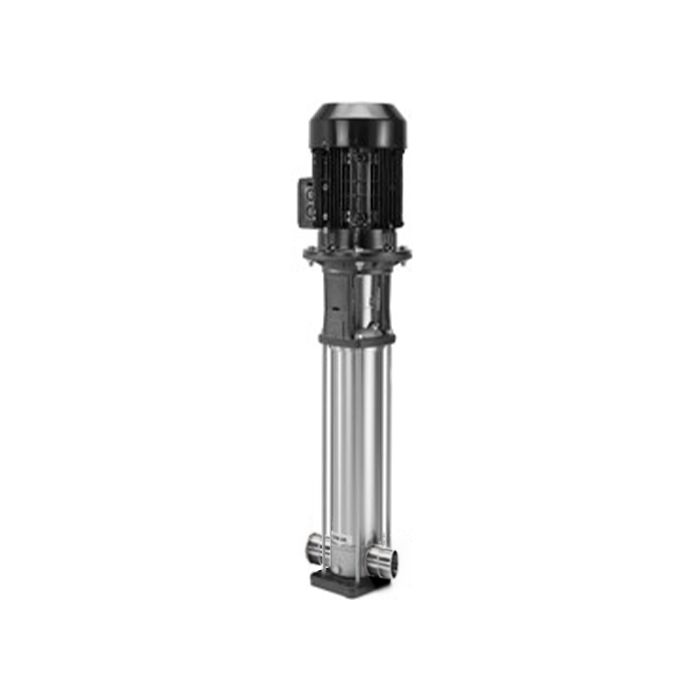

Grundfos CRN 15-8 A P A E HQQE 7.5kW Stainless Steel Vertical Multi-Stage Pump with PJE compatible connections 415v

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline).

Pump materials in contact with the liquid are in high-grade stainless steel.

Power transmission is via a rigid split coupling.

Pipe connection is via PJE couplings.

The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

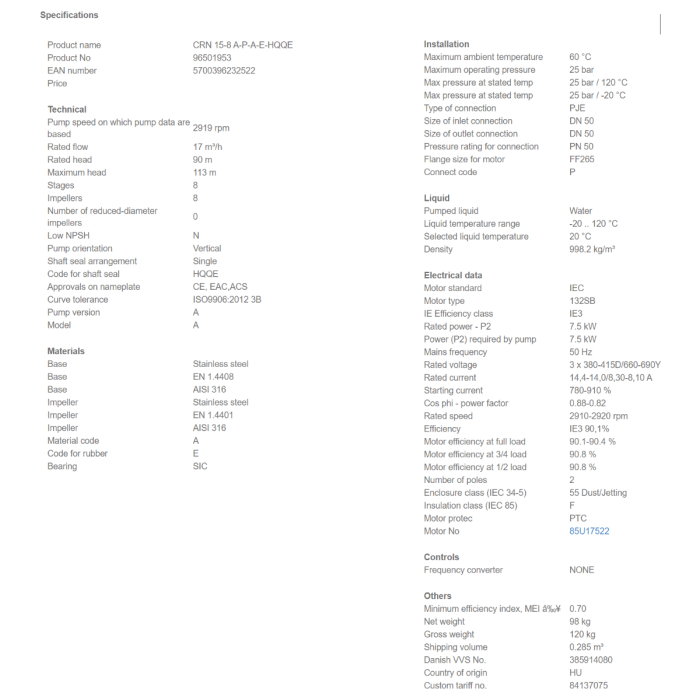

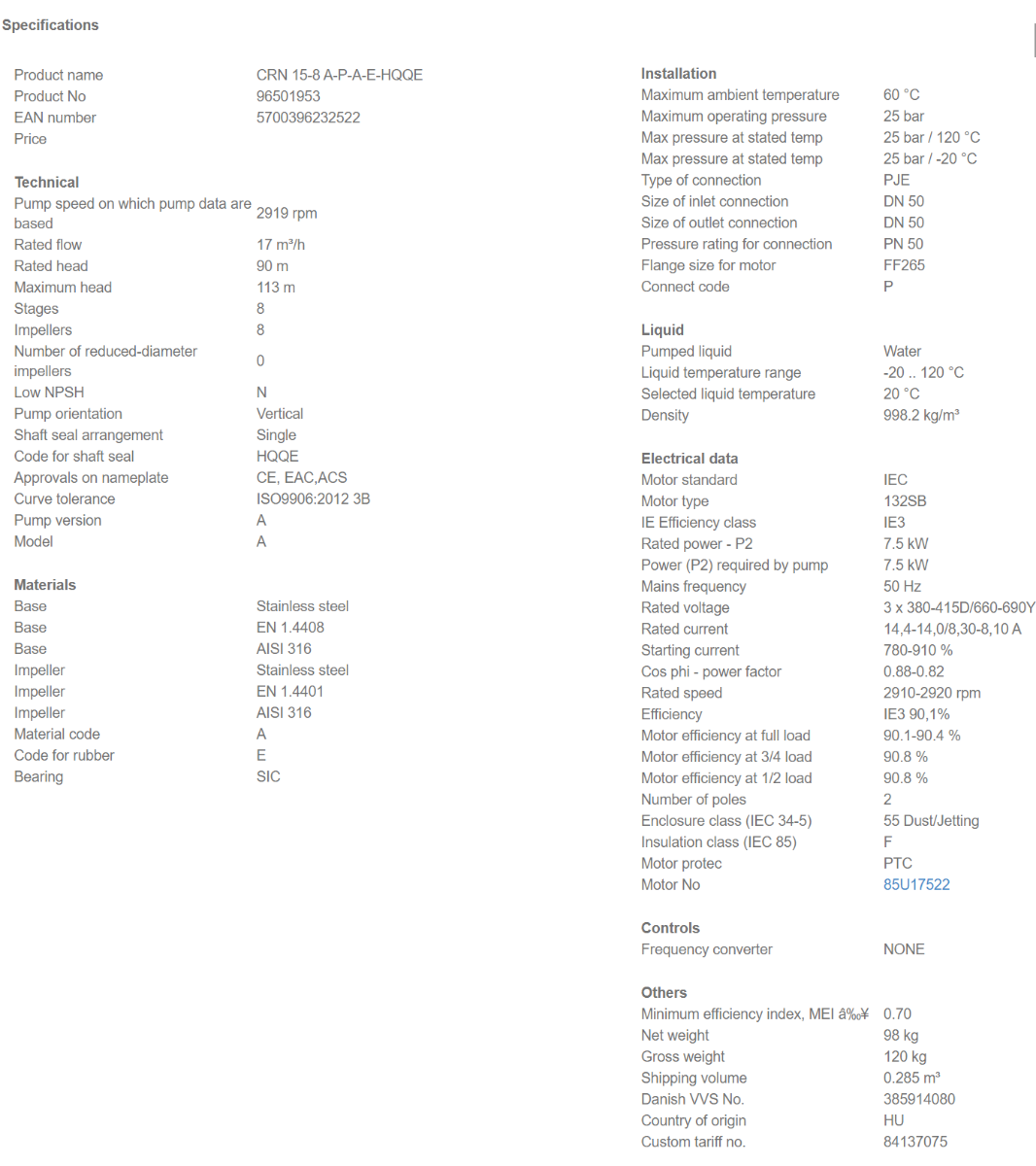

More Information
SKU	96501953
Manufacturers	Grundfos
Manufacturers Warranty	2 Years
GTIN	5700396232522
Weight	120.0 Kg

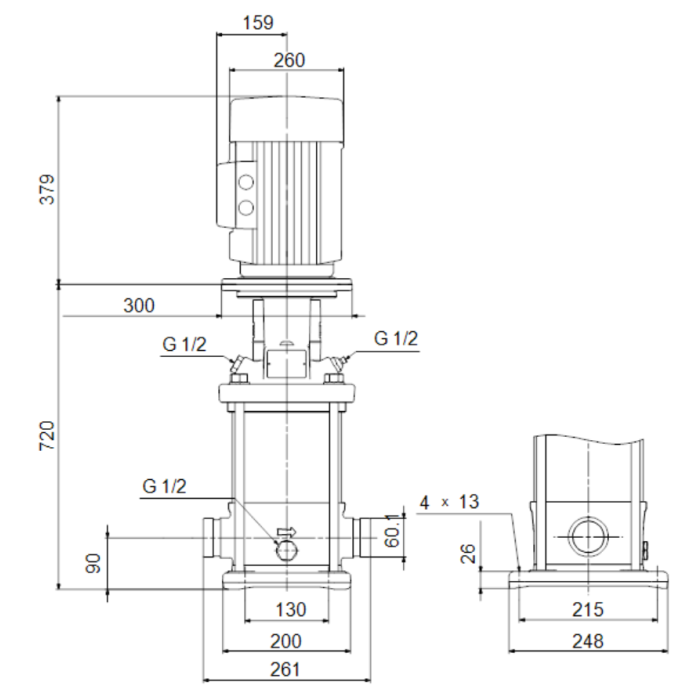

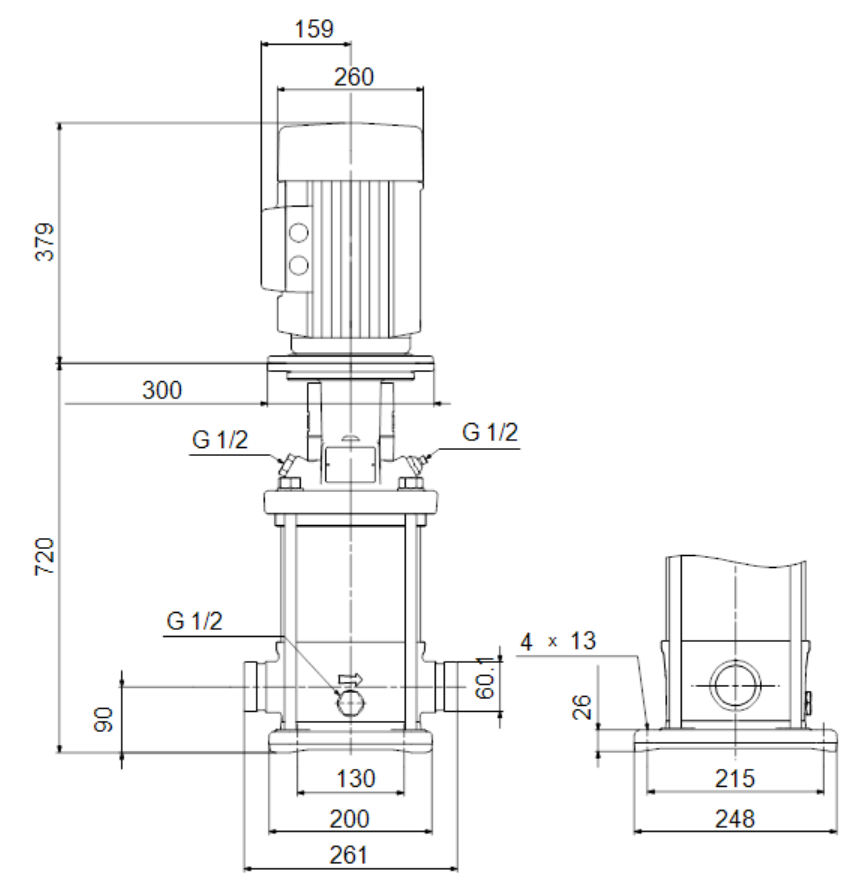

Dimensions	1099mm (h) x 248mm (w) x 261mm (d)
Inlet Dimension	DN50
Discharge Dimension	DN50
Motor Size	7.5 kW
Full Load Current (FLC)	8,30-8,10 A
Voltage	415V 3Ph 50Hz
RPM	2919rpm
Max Flow	23.84m3/hr
Max Head	113m
Max Temperature	120 °C
Material	Stainless Steel
Impeller Material	Stainless Steel
