Grundfos CRN 1-12 A FGJ H E HQQE 0.75kW Stainless Steel Vertical Multi-Stage Pump 415v

Name: Grundfos CRN 1-12 A FGJ H E HQQE 0.75kW Stainless Steel Vertical Multi-Stage Pump 415v
Brand: Grundfos
SKU: 96531308
Price: 1274 GBP
Availability: InStock

SKU

96531308

MRRP £1,820.00 + VAT Our price £1,274.00 (+ VAT) Incl. VAT: £1,528.80

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Choose Flange Kit Option

Choose Gasket Set Option

Qty

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

Grundfos CRN 1-12 A FGJ H E HQQE 0.75kW Stainless Steel Vertical Multi-Stage Pump with DIN flanged connection 415v

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline).

Pump materials in contact with the liquid are in high-grade stainless steel.

Power transmission is via a rigid split coupling.

Pipe connection is via combined DIN-ANSI-JIS flanges.

The pump is fitted with a 1-phase, fan-cooled asynchronous motor.

More Information
SKU	96531308
Manufacturers	Grundfos
Manufacturers Warranty	2 Years
GTIN	5700397295397
Weight	28.5 Kg

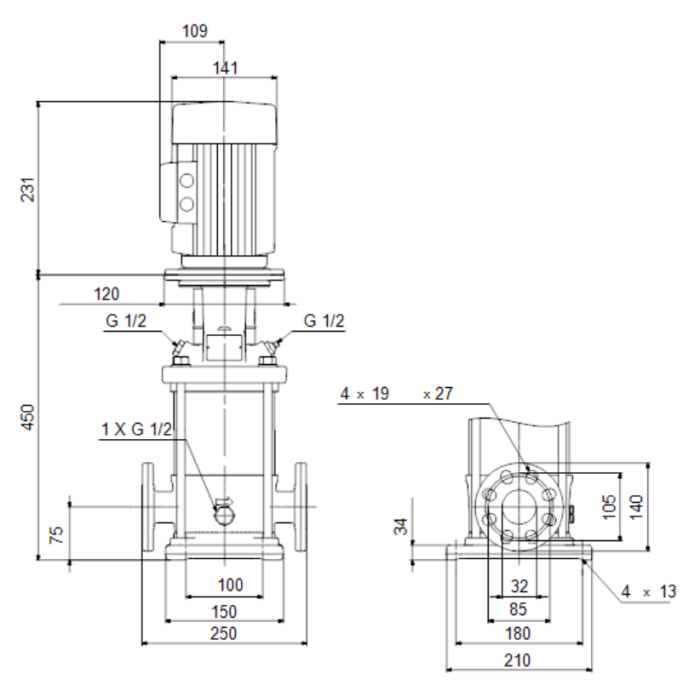

Dimensions	681mm (h) x 210mm (w) x 250mm (d)
Inlet Dimension	DN25/32
Discharge Dimension	DN25/32
Motor Size	0.75 kW
Full Load Current (FLC)	1.90 A
Voltage	415V 3Ph 50Hz
RPM	2864rpm
Max Flow	2.41m3/hr
Max Head	74.7m
Max Temperature	120 °C
Material	Stainless Steel
Impeller Material	Stainless Steel
