Grundfos CR 32-5 A F A V HQQV 11.0kW Vertical Multi-Stage Pump 415V

Name: Grundfos CR 32-5 A F A V HQQV 11.0kW Vertical Multi-Stage Pump 415V
Brand: Grundfos
SKU: 96122043
Price: 4629 GBP
Availability: InStock

SKU

96122043

MRRP £6,612.00 + VAT Our price £4,629.00 (+ VAT) Incl. VAT: £5,554.80

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Choose Flange Kit Option

Choose Gasket Set Option

Qty

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

Grundfos CR 32 Pumps are Vertical, non-self-priming, multistage, in-line, centrifugal pumps for installation in pipe systems and mounting on a foundation - suitable for Industrial applications.

CR models are DIN flanged as standard and are supplied without counter flanges to EN 1092-2-1997.

PLEASE NOTE:

CR(N) 30 Adaptor Rails are necessary if fitting a CR(N) 32 pump to existing CR(N) 30 foundation mountings. These must be purchased separately.

CR(N) 30-10 to CR(N) 30-80 replaced by CR(N) 32, order product code 290427

CR(N) 30-110 to CR(N) 30-160 replaced by CR(N) 32, order product code 290582

More Information
SKU	96122043
Manufacturers	Grundfos
Manufacturers Warranty	2 Years
GTIN	5700396680873
Weight	191.0 Kg

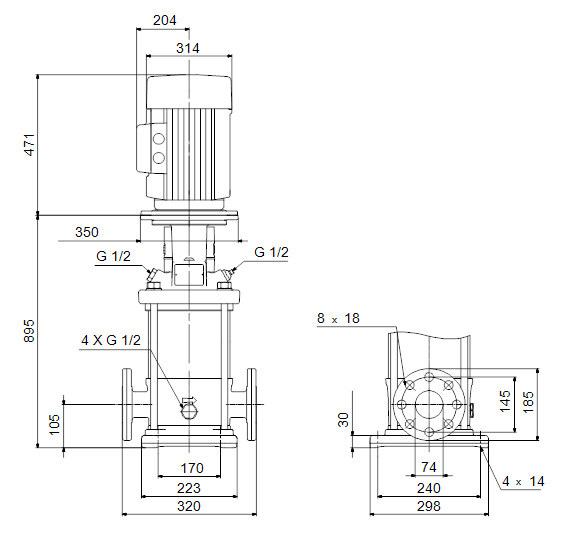

Dimensions	1366mm (h) x 320mm (w) x 298mm (d)
Motor Size	11.0 kW
Full Load Current (FLC)	20,8-19,8/12,0-11,8 A
Voltage	415V 3Ph 50Hz
Max Flow	40m3/hr
Max Head	100m
Material	Cast Iron
