Grundfos CR 125-3 A F A V HQQV 37kW Vertical Multi-Stage Pump 415V

SKU
99142637
MRRP £16,117.00 + VAT Our price £11,282.00 (+ VAT) Incl. VAT: £13,538.40

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Grundfos CR 125 Pumps are vertical, non-self-priming, multistage, in-line, centrifugal pumps for installation in pipe systems and mounting on a foundation - suitable for Industrial applications.

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline).

The pump head and base are in cast iron – all other wetted parts are in stainless steel.

The Grundfos cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling.

The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

CR models are DIN flanged as standard and are supplied without counter flanges to EN 1092-2-1997.

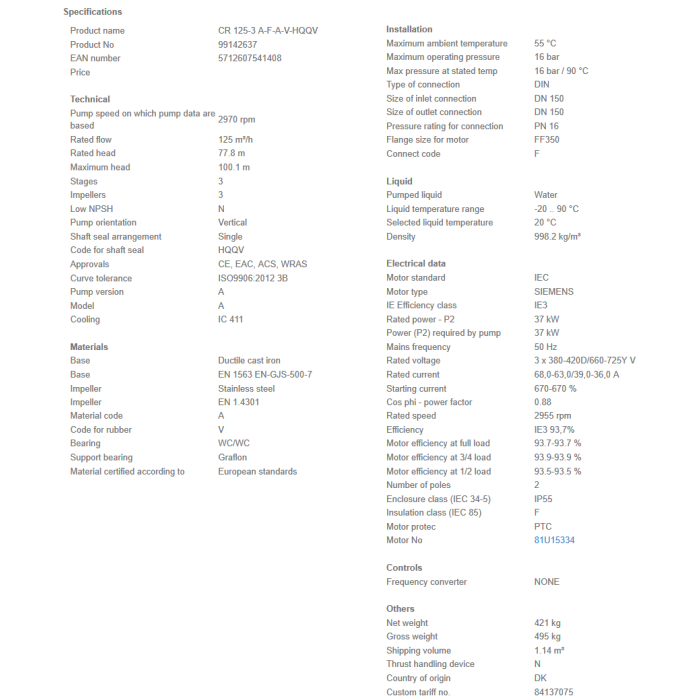

More Information
SKU 99142637
Manufacturers Grundfos
Manufacturers Warranty 2 Years
GTIN 5712607541408
Weight 495.0 Kg

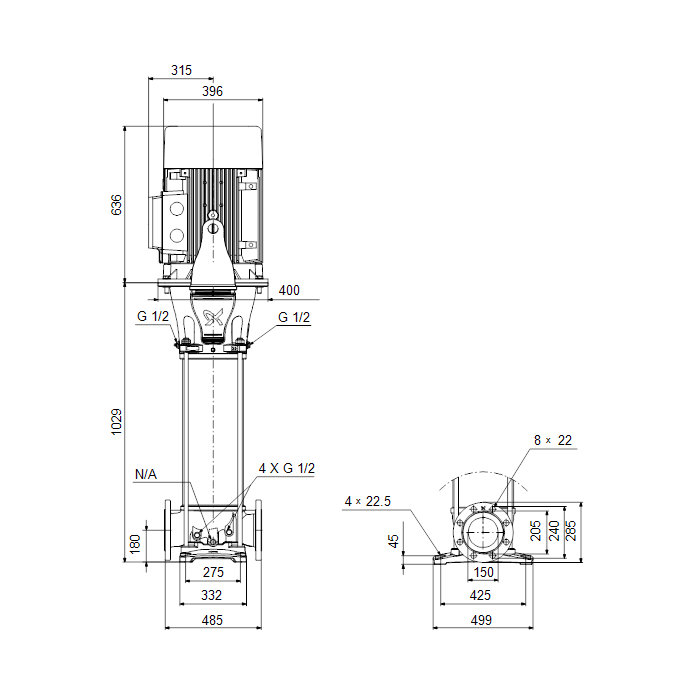

Dimensions 1665mm (h) x 499mm (w) x 485mm (d)
Inlet Dimension DN 150
Discharge Dimension DN 150
Motor Size 37 kW
Full Load Current (FLC) 39,0-36,0 A
Voltage 415V 3Ph 50Hz
RPM 2970rpm
Max Flow 164m3/hr
Max Head 100m
Max Temperature -20 - 90 °C
Material Cast Iron
Impeller Material Stainless Steel
