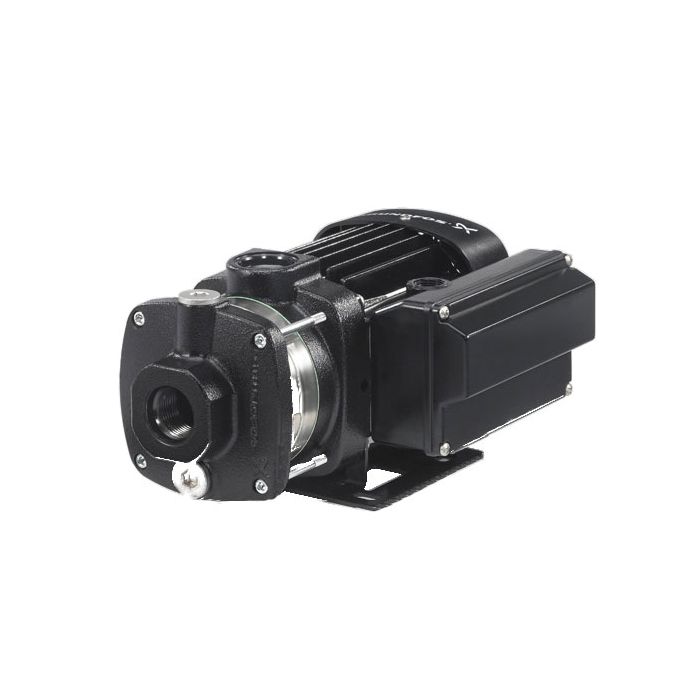

Grundfos CM 5-4-I A R I E AQQE CAAN Horizontal Multi-stage Booster Pump 240V

Name: Grundfos CM 5-4-I A R I E AQQE CAAN Horizontal Multi-stage Booster Pump 240V
Brand: Grundfos
SKU: 96961065
Price: 747 GBP
Availability: InStock

SKU

96961065

MRRP £1,066.00 + VAT Our price £747.00 (+ VAT) Incl. VAT: £896.40

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

The Grundfos CM pumps are non-self-priming, horizontal, multistage, end-suction centrifugal pumps that are suitable for applications ranging from small domestic installations to large industrial systems.

Typical applications:

Standard features:

Compact design
Modular construction/customised solutions
Energy-optimised pumps
Worldwide usage
High reliability
Easy installation and commissioning
Service-friendly

Grundfos CM-I pumps are made from 304 Stainless Steel (EN1.4301). CM5 pumps have 1 1/4" BSPF Suction and 1" BSPF Discharge pipe connections.

More Information
SKU	96961065
Manufacturers	Grundfos
Manufacturers Warranty	2 Years
GTIN	5700314825607
Weight	16.2 Kg
Dimensions	208mm (h) x 158mm (w) x 363mm (d)
Motor Size	0.67 kW/ 80A Motor
Full Load Current (FLC)	4.4-4.0A
Voltage	240V 1Ph 50Hz
Max Flow	6.0m3/hr
Max Head	38m
Material	Stainless Steel
