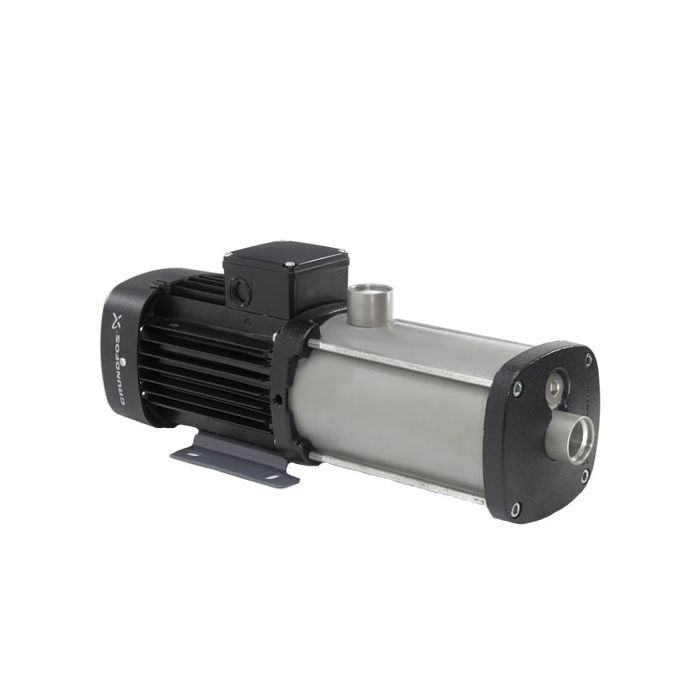

Grundfos CM 5-12-G A R G E AQQE FAAN Horizontal Multi-stage Booster Pump 415V

Name: Grundfos CM 5-12-G A R G E AQQE FAAN Horizontal Multi-stage Booster Pump 415V
Brand: Grundfos
SKU: 98979448
Price: 1912 GBP
Availability: InStock

SKU

98979448

MRRP £2,731.00 + VAT Our price £1,912.00 (+ VAT) Incl. VAT: £2294.40

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

The Grundfos CM pumps are non-self-priming, horizontal, multistage, end-suction centrifugal pumps that are suitable for applications ranging from small domestic installations to large industrial systems.

Typical applications:

Standard features:

Compact design
Modular construction/customised solutions
Energy-optimised pumps
Worldwide usage
High reliability
Easy installation and commissioning
Service-friendly

Grundfos CM-G pumps are made from high grade 316 Stainless Steel (EN1.4401). CM5 pumps have 1 1/4" BSPF Suction and 1" BSPF Discharge pipe connections.

More Information
SKU	98979448
Manufacturers	Grundfos
Manufacturers Warranty	2 Years
GTIN	5700314053857
Weight	34.0 Kg
Dimensions	220mm (h) x 199mm (w) x 650.5mm (d)
Motor Size	3.20 kW / MG100LA Motor
Full Load Current (FLC)	11.8-11.0/6.75-6.40 A
Voltage	415V 3Ph 50Hz
Max Flow	6.3m3/hr
Max Head	120m
Material	Stainless Steel
