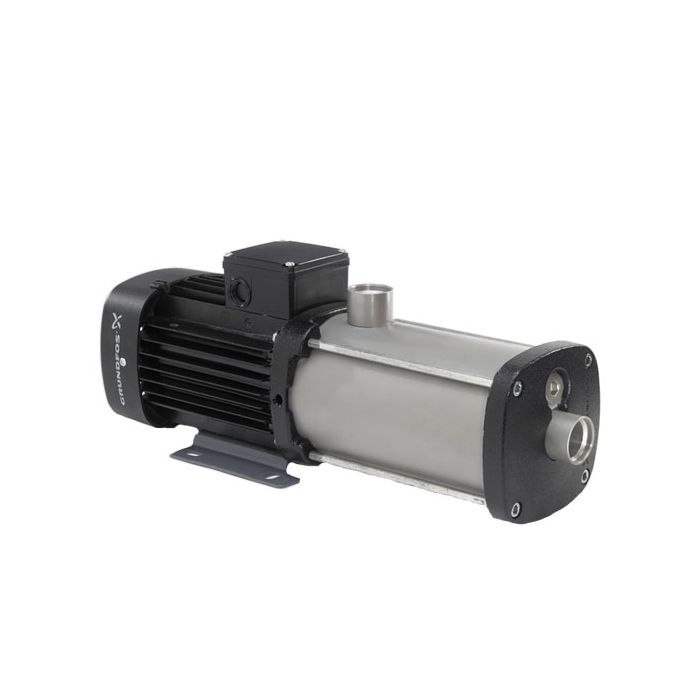

Grundfos CM 5-10-G A R G E AQQE FAAN Horizontal Multi-stage Booster Pump 415V
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
The Grundfos CM pumps are non-self-priming, horizontal, multistage, end-suction centrifugal pumps that are suitable for applications ranging from small domestic installations to large industrial systems.
Typical applications:
- washing and cleaning
- water treatment
- temperature control
- pressure boosting
- distilling systems
- dosing/mixing
- evaporation
- comprised machinery
- chemical industry
- pharmaceutical industry
Standard features:
- Compact design
- Modular construction/customised solutions
- Energy-optimised pumps
- Worldwide usage
- High reliability
- Easy installation and commissioning
- Service-friendly
Grundfos CM-G pumps are made from high grade 316 Stainless Steel (EN1.4401). CM5 pumps have 1 1/4" BSPF Suction and 1" BSPF Discharge pipe connections.
| SKU | 98979445 |
|---|---|
| Manufacturers | Grundfos |
| Manufacturers Warranty | 2 Years |
| GTIN | 5700317265844 |
| Weight | 31.4 Kg |
| Dimensions | 200mm (h) x 178mm (w) x 578.5mm (d) |
| Motor Size | 2.20 kW / MG90SB Motor |
| Full Load Current (FLC) | 8.15-7.85/4.7-4.5 A |
| Voltage | 415V 3Ph 50Hz |
| Max Flow | 6.3m3/hr |
| Max Head | 89m |
| Material | Stainless Steel |
