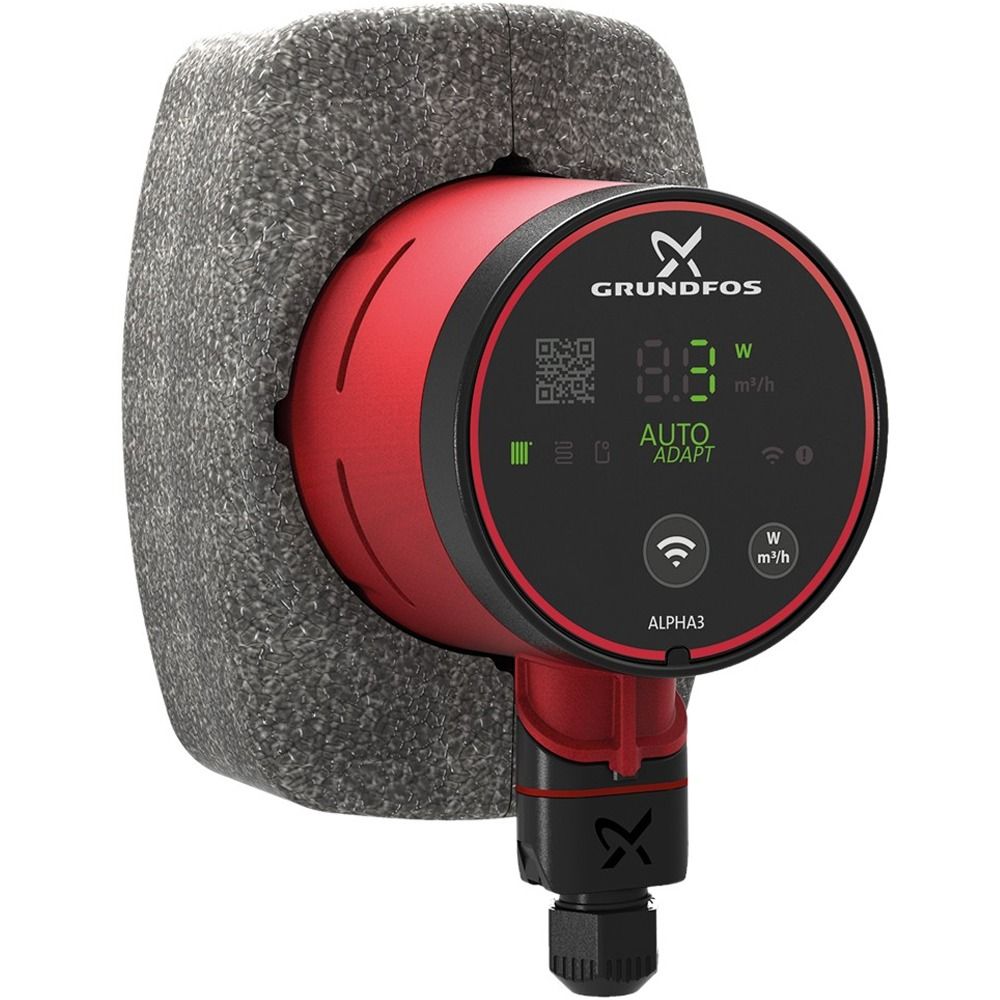

The ALPHA3 is our newest circulator for domestic buildings. It is of the Grundfos quality and guarantees easy installation, market leading energy efficiency and reliable operation in the toughest conditions. For the ultimate benefits of the ALPHA3, however, installers need two other components – the ALPHA Reader and the Grundfos GO Balance app. Together, the state-of-the-art ALPHA3 system helps installers complete hydronic balancing more accurately and in about half the time of traditional methods.
ALPHA READER
The ALPHA Reader is a pocket-sized device that you attach to the front of the ALPHA3. It reads a light signal from the pump and communicates with the Grundfos GO balance app via bluetooth during the balancing process. Once the hydronic balancing is done, installers can simply take the ALPHA Reader with them to their next job.
GRUNDFOS GO BALANCE APP
The Grundfos Go Balance app is downloaded from iTunes or Google Play. The app picks up the bluetooth signal from the ALPHA Reader and guides installers through four simple balancing steps.
FAST AND EASY BALANCING
With the ALPHA3, the ALPHA Reader and the Grundfos GO Balance app, installers are set for fast and easy system balancing – without compromising on reliability, efficiency and easy installation.
Hydronic Balancing with ALPHA3 and ALPHA reader works with:
- Two pipe radiator systems
The GRUNDFOS ALPHA3 is suitable for running in:
- Systems with constant or varying flow
- One pipe systems
- Two pipe systems
- Underfloor heating systems
Features and benefits
- Hydronic Balancing
- No blockage
- Best in class efficiency
Benefits of hydronic Balancing:
- Savings on heating bill between 5-17%
- Lower return temperature in the system
- Lower noise in the heating system
