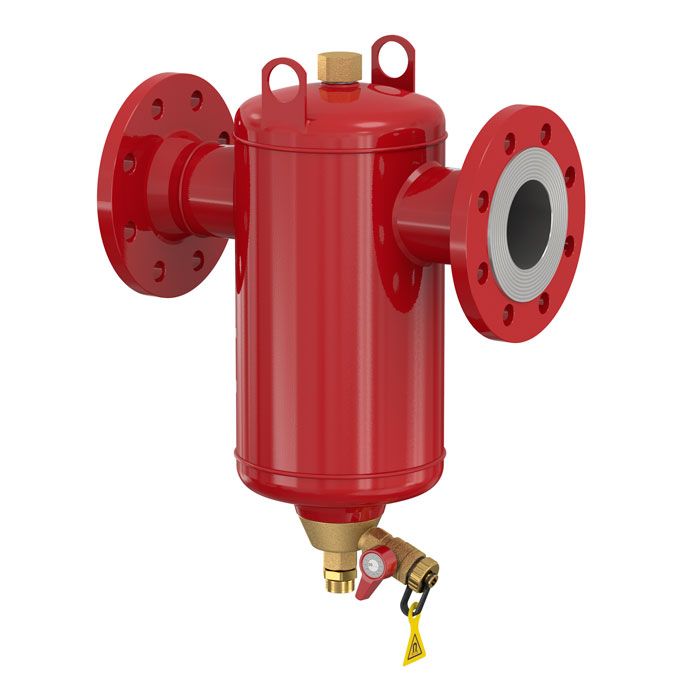

Flamcovent Clean Smart 250F - 10" Flanged Inline Dirt Separator 10 Bar
SKU
31029
MRRP
£10,421.00
+ VAT
Our price
£7,295.00
(+ VAT)
Incl. VAT: £8754.00
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
00
Hours
Mins
Secs
* Available where Guaranteed Stock Icon Appears Below

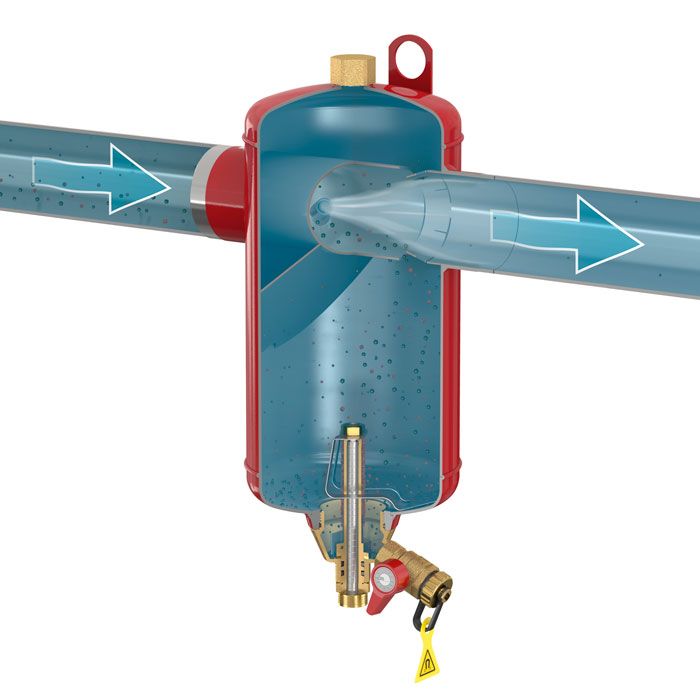

Optimum dirt separation combined with energy efficiency. For use in sealed heating and cooling systems. Dirt separators protect the boilers, pumps and fittings from damage caused by the deposit of dirt particles. Dirt separators also offer benefits in the event of application in old systems or when an open system is converted to a closed system.
- Prevents deposit of dirt particles in the boiler.
- The removal of dirt particles from the system water extends the service life of pumps, control equipment and other system accessories.
The new steel Flamco Clean Smart dirt separators remove even the most miniscule dirt particles from the installation water. The Flamco Clean Smart performs 60% better than conventional dirt separators whilst the flow resistance has been reduced to a negligible level.
- With flanged connection according to EN 1092-1 PN16.
- Up to 60% better performance compared to conventional dirt separators.
- Extremely low flow resistance resulting in less energy consumption.
- Standard flow speed up to 3 m/s.
- Twenty-five neodymium supermagnets are incorporated into the dirt scraper.
- Low maintenance
- Constant performance during the entire lifespan.Low maintenance.

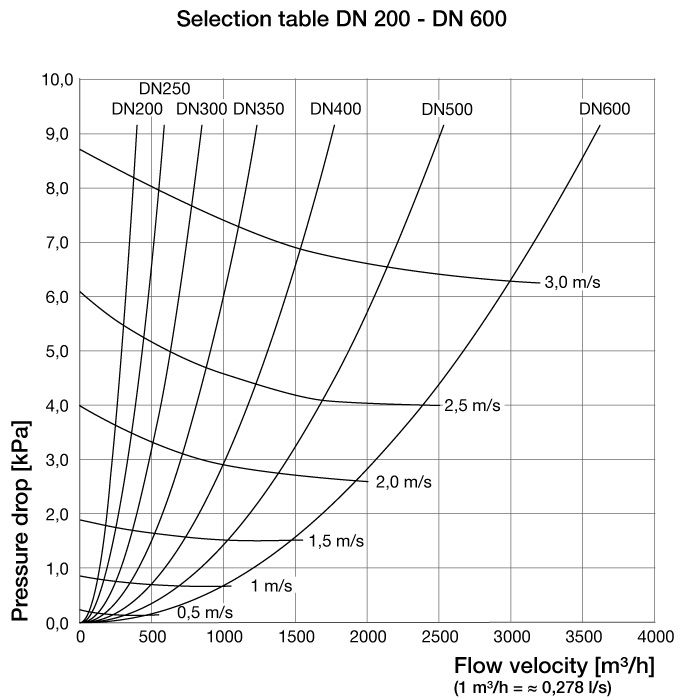

*Kv = Q / √ΔP Q: Flow [m3/h] ΔP: Pressure loss over the product [bar]
Flow factor Kv: Rate of flow [m3/h] which results in a 1 bar pressure drop across the product. This is different then the maximum allowed flow rate of the product.
| SKU | 31029 |
|---|---|
| Manufacturers | Flamco |
| Manufacturers Warranty | 1 Year |
| GTIN | 08712874310292 |
| Weight | 158.0 Kg |

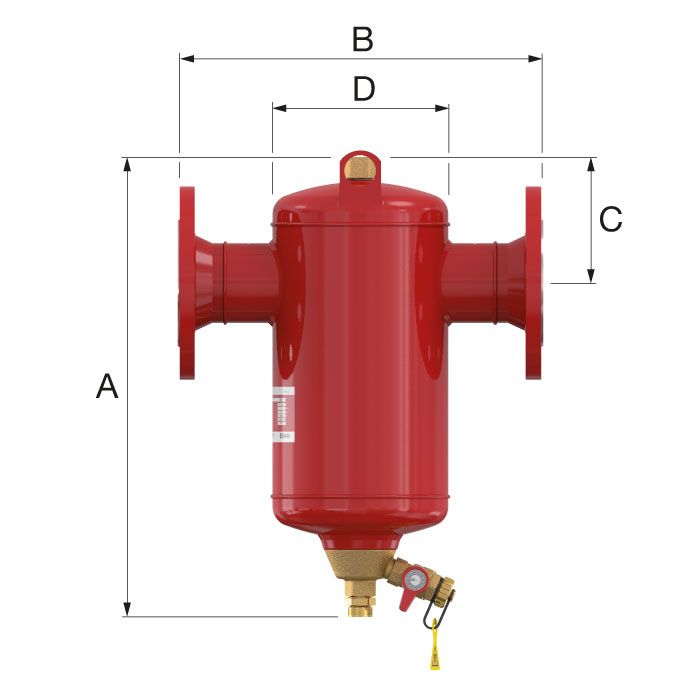

| Dimensions | A - 1272mm B - 990mm C - 395mm D - 600mm |
| Outer Diameter | 273 mm |
| Inner Diameter | 10 Inch |
| Separator type | Dirt Only |
| Connection Type | 10 Inch Flanged |
| Max Flow | 632.18 m³/h |
| Max Pressure | 10 Bar |
| Pressure Drop Over Product | 1 Bar |
| Kv - Product Flow Rate | 1952 |
| Suitable For Cooling | Yes |
| Suitable For Heating | Yes |
| Suitable for Closed System | Yes |
| Material | Stainless Steel |
| Filter Mesh Density | 0mm |
| Filter Volume | 287L |
| Max Temperature | Max Flow Temperature of 120 °C |
| Surface Protection | Untreated |
