Dreno DNA 80-2/150 T 3" Vortex Sewage Submersible Pump 415v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below

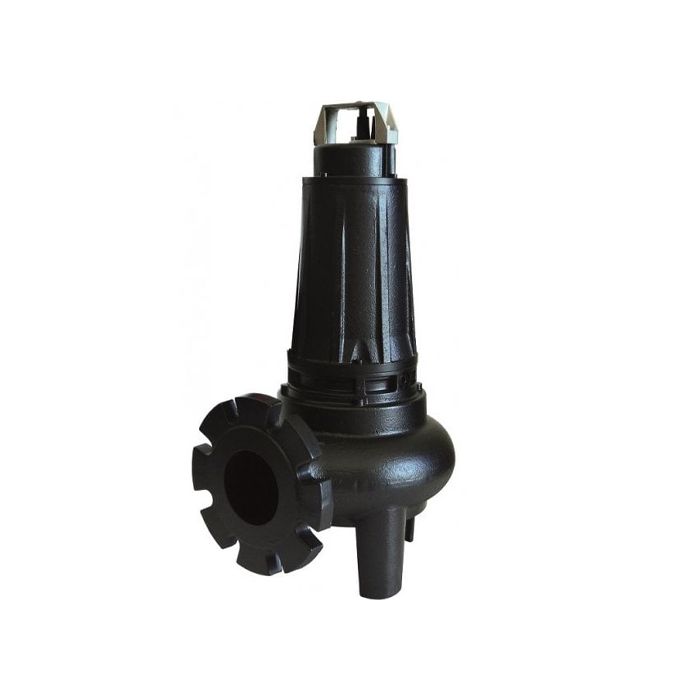

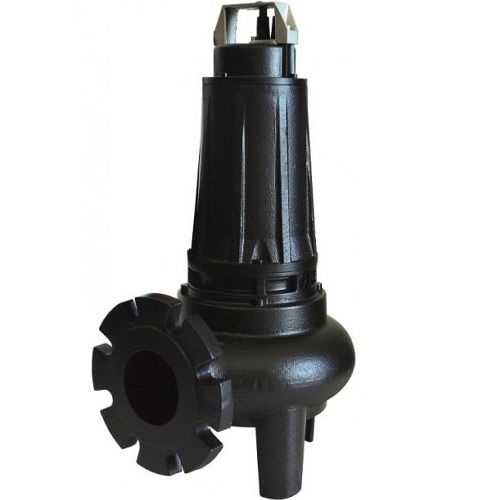

Dreno DNA 80-2/150 T 3" Vortex Sewage Submersible Pump 415v
The Dreno DNA vortex are a range of heavy duty submersible sewage vortex pumps designed for the commercial and industrial sectors.
Benefiting from a set-back vortex style impeller, the Dreno DNA vortex range can offer solids handling capacity of up to 80mm. An additional benefit of the vortex design is that solids contact with the impeller is therefore minimised thus reducing the chances of blockages and unplanned maintenance.
Engineered from cast-iron GG20 pump body and impeller, the Dreno DNA vortex pumps really are built to last. The quality is further enhanced by the double oil bathed mechanical seals that provide positive seal lubrication at all times and considerably increase the lifespan of the unit.
The Dreno DNA vortex pump is typically used for sewage and wastewater applications.
All versions are supplied with both 3 inch threaded outlet and flange connections making the unit extremely versatile.
10 metres of heavy duty power cable is included.
Maximum immersion depth: 20 metre.
The EX versions can be used in potentially explosive atmospheres.
| SKU | 200-0935 |
|---|---|
| Weight | 35.0 Kg |
| Dimensions | 488mm (h) x 249mm (w) x 295mm (l) |
| Manufacturers | Dreno |
| Manufacturers Warranty | 1 Year |
| Material | Cast Iron |
| Impeller Material | Cast Iron |
| Connection Type | 80mm Flanged |
| Voltage | 415V 3Ph 50Hz |
| Max Flow | 900 l/min |
| Max Head | 8.5m |
| Full Load Current (FLC) | 3.6A |
| Motor Size | 1.5kW |
| Cable Length | 10m |
| Immersion Depth | 20 metres max |
