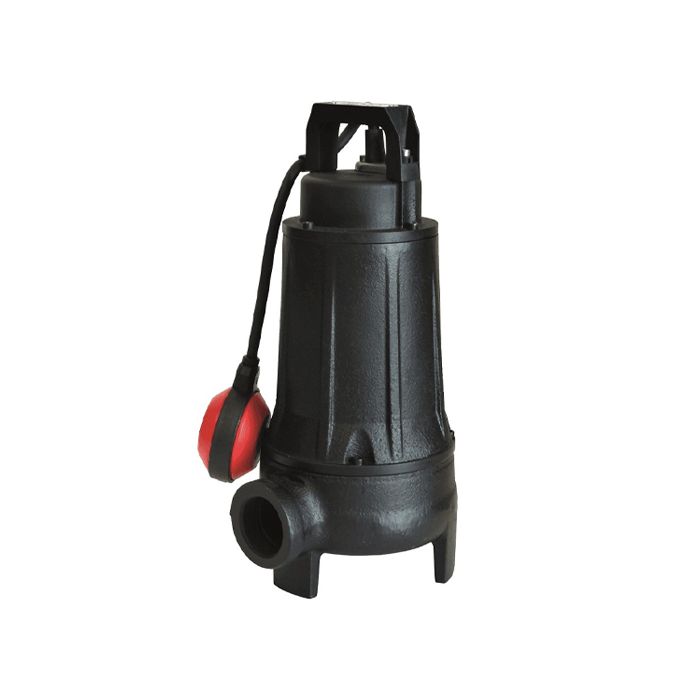

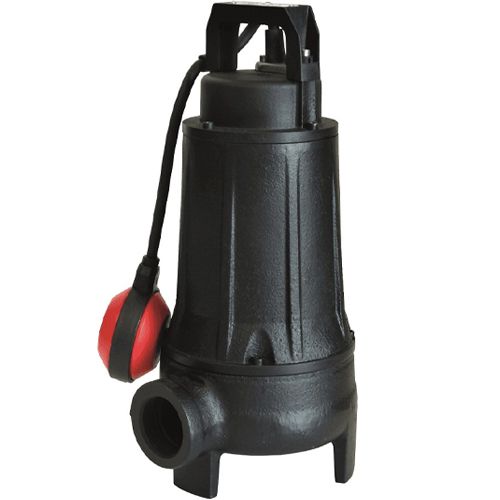

Dreno Compatta 22TG Submersible Sewage Pump With Floatswitch 415v
The main components are fabricated in cast iron GG20, in the standard configuration a lip seal is fitted to the motor side, and a mechanical seal to the impeller side. The Compatta Series is ideal to pump residential sewage thanks to its small size and mechanical characteristics. Maximum liquid temperature 40°C. Maximum depth of immersion 20 metres. Power cable 10 metres. Many of the Dreno pump ranges are available ATEX approved. Max solids 40mm.
Applications:
- heavy duty
- sewage
- dirty water
| SKU | 200-0023 |
|---|---|
| Weight | 15.0 Kg |
| Dimensions | 400mm (h) x 175mm (w) x 225mm (l) |
| Manufacturers | Dreno |
| Manufacturers Warranty | 1 Year |
| Material | Cast Iron |
| Impeller Material | Cast Iron |
| Connection Type | 2 Inch BSP Female |
| Voltage | 415V 3Ph 50Hz |
| Max Flow | 420 l/min |
| Max Head | 8m |
| Full Load Current (FLC) | 1.7A |
| Motor Size | 0.56kW |
| Cable Length | 10m |
| Float Switch | Yes |
| Immersion Depth | 20 metres max |
