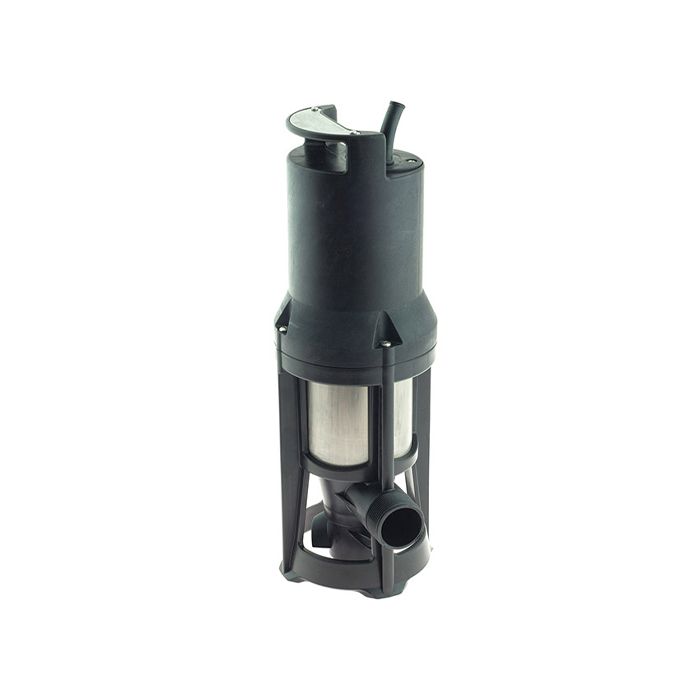

DAB NOVAIR 600 M-NA 5m Cable Submerged Aerator 240v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
APPLICATIONS
The submerged aerator is designed for liquid waste aeration in small water treatment systems. Other fields of application include pond water oxygenation and fish farms.
ADVANTAGES
Thanks to its specific design, the new NOVAIR system guarantees optimal oxygenation of water treatment plants by means of a large and thick cloud of fine bubbles. The fluid dynamics study has been mainly focused on the impeller’s blade profiles, with a view to avoid damaging microorganisms present in the water when starting operation. As the aerator is installed vertically, its body is supplied with a supporting base. Technically speaking, motor cooling is guaranteed by large contact surfaces between motor casing and the liquid. The power cable is coated with resin against humidity and leaks and cabling has been made easier, in order to favour maintenance operations and cable replacement. The excellent wear resistance of the stainless steel motor shaft, with ceramic bush around the sealing rings, guarantees long product durability.
CONSTRUCTION FEATURES
Pump body, cable cover and impeller in technopolymer. Two-pole asynchronous submergible type motor from 0.18 and 0.4 kW with built-in thermal protection and permanently connected capacitor installed in the cable compartment. Steel motor shaft mounted on oversized, greased sealed-for-life ball bearings with ceramic bush. Triple interposed ring seal with oil pre-chambercon precamera d’olio.
| SKU | 60170247 |
|---|---|
| Weight | 6.0 Kg |
| Dimensions | 380mm (h) x 158mm (d) |
| Manufacturers | DAB |
| Manufacturers Warranty | 2 Years |
| Material | Plastic |
| Impeller Material | Technopolymer |
| Voltage | 240V 1Ph 50Hz |
| Max Flow | 90l/min |
| Max Head | 17m |
| Full Load Current (FLC) | 3A |
| Motor Size | 0.4kW |
| Cable Length | 5m |
| Immersion Depth | 90cm |
