DAB Nova UP 600MAE Submersible Pump 240v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
DAB Nova UP 600MAE Submersible Pump 240v - 60153573
APPLICATIONS
The vertical delivery draining submersible pump is suitable for domestic automatically operated fixed applications, for draining basements and garages that are subject to flooding. This version is particularly suited for narrow well installation requiring automatic suction up to 2/3 mm. Thanks to its compact, easy to handle shape, it may also be used as a portable pump for emergencies such as lifting water from tanks or rivers, emptying swimming pools, fountains, excavations, and pedestrian subways. It is also ideal for gardening, and hobby applications in general. This pump can be used with liquids containing solid particles of up to 10 mm in size. The electronic level selector allows fixed installation, ensuring automatic operation, and enabling the selection of the level of the liquid for automatic start. With removable filter, it is capable of suction of up to a minimum of 2/3 mm (filter removed).
CONSTRUCTION FEATURES OF THE PUMP
Hydro resistant technopolymer pump body, cover, and suction grid. Stainless steel motor, roto shaft, and bolts and screws. Threefold seal with interposed rings with oil pre-chamber.
CONSTRUCTION FEATURES OF THE MOTOR
Submersible type continuous duty asynchronous motor. Stator enclosed in airtight stainless steel casing, with an outer cover that protects the wiring and the capacitor. Rotor running on permanently lubricated ball bearings, oversized to ensure low noise and durability. Built-in thermal-amperometric protection and permanently connected capacitor.

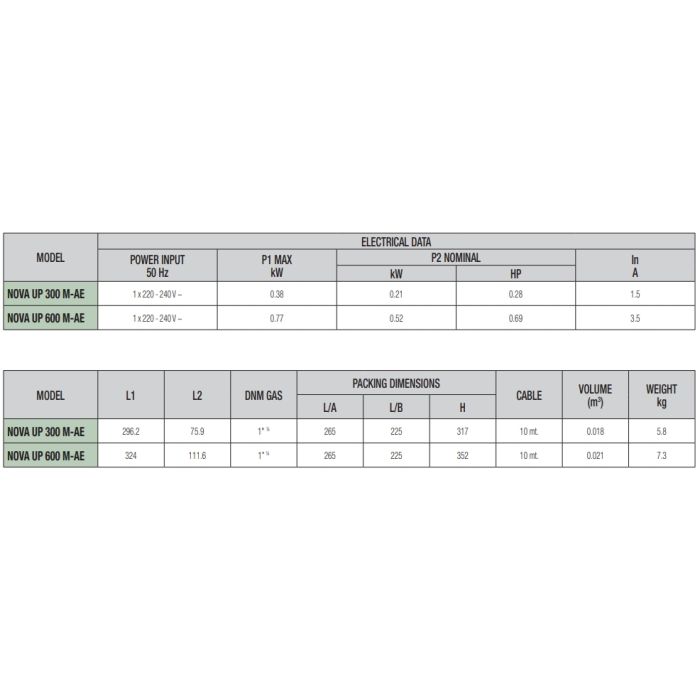

SKU | 60153573 |
---|---|
Weight | 7.0 Kg |
Dimensions | 296mm (h) x 160mm (dia) |
Manufacturers | DAB |
Manufacturers Warranty | 2 Years |
Material | Plastic |
Connection Type | 1 1/4 Inch BSP |
Voltage | 240V 1Ph 50Hz |

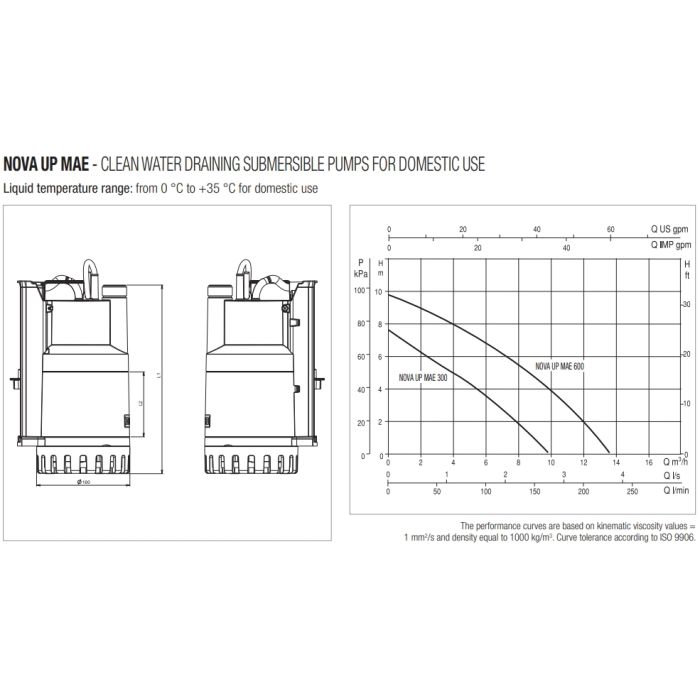

Max Flow | 14m3/hr |
Max Head | 10m |
Full Load Current (FLC) | 3.5A |
Motor Size | 0.77kW |
Cable Length | 10m |
