DAB Nova 600 TNA 40th Anniversary Edition 400/50 10H07 Submersible Pump 415v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below

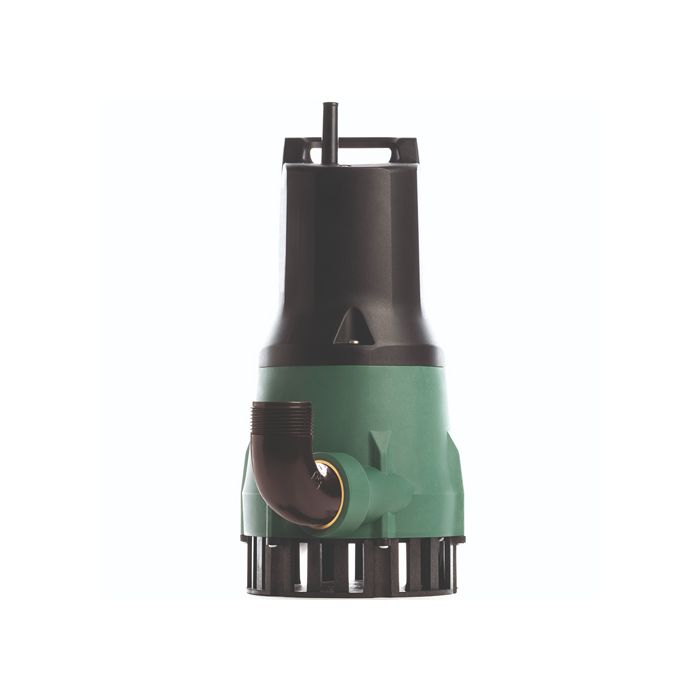

DAB Nova 600 TNA 40th Anniversary Edition 400/50 10H07 Submersible Pump 415v - 60196306H
Nova is a submersible pump for draining clear water in domestic and residential environments. Completely redesigned in 2019 for the forty years of sales edition, it is now even more durable, reliable and ergonomic in use. Nova can also be used for emptying tanks or cisterns.
CONSTRUCTION FEATURES OF THE PUMP
The pump body, the impeller and the suction grille are in technopolymer. Robust and reliable with triple sealing in oil bath. The pump allows the suction of the liquid up to the minimum level of 10 mm and the possibility of dry operation up to 1 minute.
CONSTRUCTION FEATURES OF THE MOTOR
Continuous duty asynchronous submersible motor. Stator inserted in a hermetic stainless steel casing and rotor mounted on oversized ball bearings. Thermal protection incorporated in all single-phase versions. The motor is in AISI 304 stainless steel and the shaft is in AISI 431 steel for greater resistance to corrosive attacks.
| SKU | 60196306H |
|---|---|
| Weight | 7.0 Kg |
| Dimensions | 329mm (h) x 163mm (d) |
| Manufacturers | DAB |
| Manufacturers Warranty | 2 Years |
| Material | Plastic |
| Connection Type | 1 1/4 Inch BSP Female |
| Voltage | 415V 3Ph 50Hz |
| Max Flow | 15m3/hr |
| Max Head | 10.3m |
| Full Load Current (FLC) | 1.7A |
| Motor Size | 0.66kW |
| Cable Length | 10m |
