DAB KPS 30/16 MB-110v Peripheral Pump 110v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
Peripheral centrifugal pump with compact dimensions. Able to generate high heads and suitable for domestic installations, water supply systems, small gardening applications, draining and filling cisterns, and for small industrial uses.

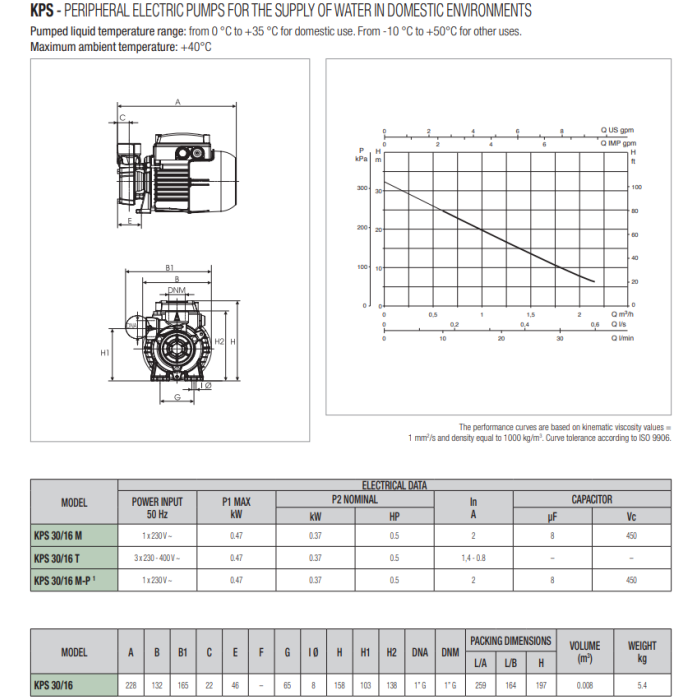

Operating range: from 5 to 50 l/min with head up to 84 metres.
Brass pump body and motor support for KP 60/6 and KP 60/12. Cast iron pump body with radial suction for KP and KPS, frontal suction for KPF.
Brass impeller. Carbon/ceramic mechanical seal. IP44.
Liquid temperature range: from 0 °C to +35 °C for domestic use, from -10°C to +50°C for other uses.
APPLICATIONS
Peripheral centrifugal pump with compact dimensions. Capable of generating high heads and suitable for domestic installations, water supply systems, small gardening applications, draining and filling cisterns, and for light industrial uses, such as feeding pressurized boilers (anti-condensation).
CONSTRUCTION FEATURES OF THE PUMP
Brass pump body and motor support for KP 60/6 and KP 60/12. Pump body with radial suction for KP and KPS; front suction for KPF. Cast iron support with brass wear disc for KPS 30/16 and KP 38/18. KPS 30/16 is available on request with bronze pump body and support. Brass impeller. Carbon/ceramic mechanical seal.
CONSTRUCTION FEATURES OF THE MOTOR
Closed asynchronous type, external ventilation cooling. Rotor running on permanently lubricated ball bearings, oversized to ensure low noise and durability. Standard built-in thermo-amperometric protection. Capacitor permanently fitted on single phase versions. For the protection of the three-phase motor, we recommend the use of remote overload cut-outs, in compliance with current local regulations. Construction according to CEI 2-3 and CEI 61-69 (EN 60335-2-41).
| SKU | 101112544 |
|---|---|
| Manufacturers | DAB |
| Manufacturers Warranty | 2 Years |
| Weight | 5.0 Kg |
| Dimensions | 158mm (h) x 228mm (w) x 165mm (d) |
| Inlet Dimension | 1" BSPF |
| Discharge Dimension | 1" BSPF |
| Motor Size | 0.37kW |
| Full Load Current (FLC) | 2A |
| Voltage | 110V 1Ph 50Hz |
| Max Flow | 2m3/hr |
| Max Head | 25m |
| Max Pressure | 2.5 Bar |
| Max Temperature | 50°C |
| Material | Bronze |
