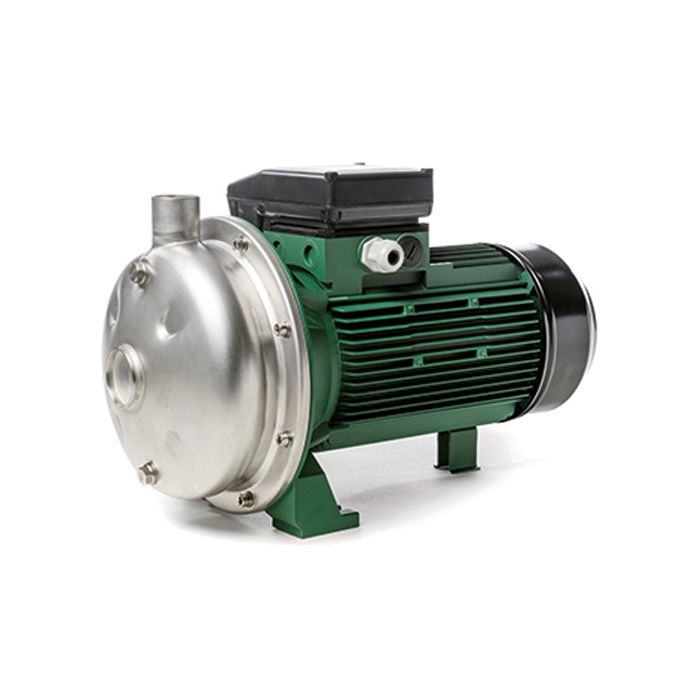

DAB KI 40/120 M 220-230/50 Single-Impeller Centrifugal Pump 240v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
APPLICATIONS
Single-impeller stainless steel end suction centrifugal pump, suitable for thermal waters, industrial washing, civil and industrial pressure boosting (cold, hot, refrigerated liquid).
CONSTRUCTION FEATURES OF THE PUMP
The Pump body and impeller in stainless steel AISI 304 make the pump more resistant to the corrosion, reliable and compact. The support in aluminium and the mechanical seal in Carbon Ceramic and NBR complete the hydraulic part of the pump. The pump is MEI comply.
CONSTRUTION FEATURES OF THE MOTOR
Closed asynchronous type, external ventilation cooling. Rotor running on ball bearings, oversized to ensure low noise and durability. Standard built-in thermo-amperometric protection. Capacitor permanently fitted on single phase versions. For the protection of the three-phase motor, we recommend the use of remote overload cut-outs, in compliance with current local regulations. Construction according to CEI 2-3. Three-phase IE2 motors as standard.

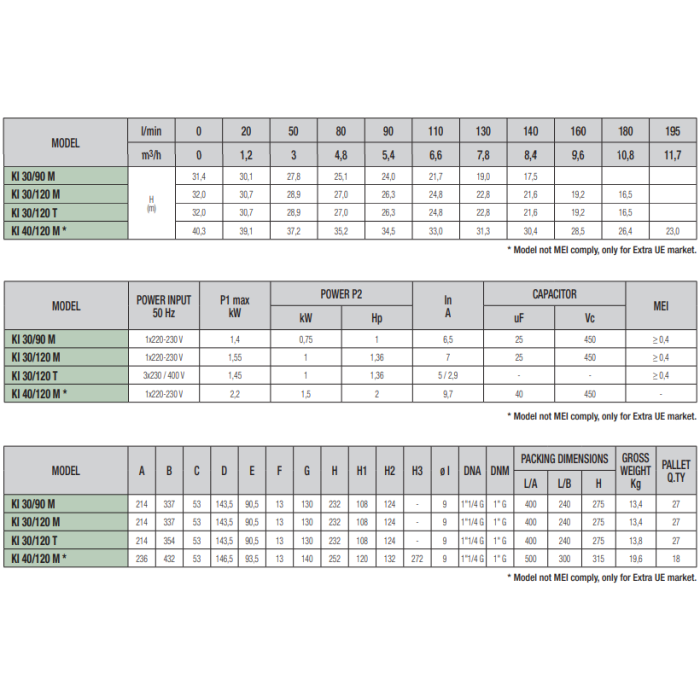

SKU | 60173608 |
---|---|
Manufacturers | DAB |
Manufacturers Warranty | 2 Years |
Weight | 20.0 Kg |

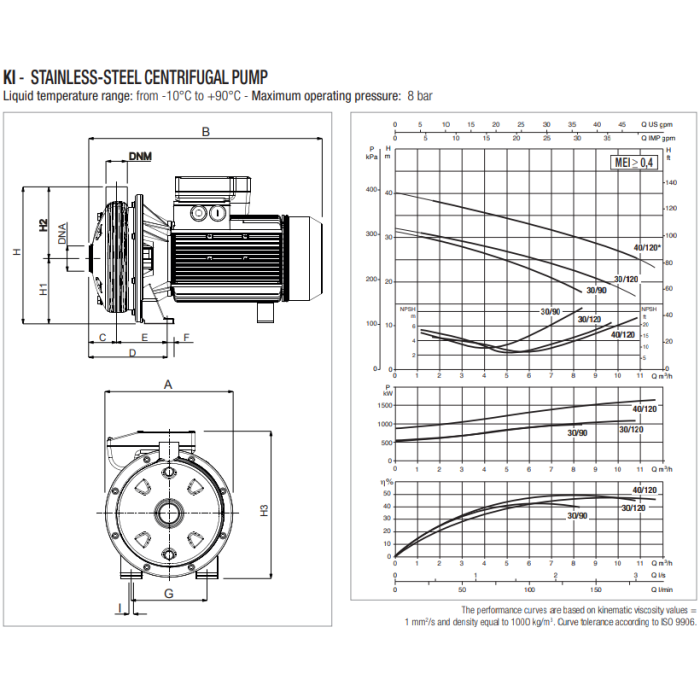

Dimensions | 252mm (h) x 432mm (w) x 236mm (d) |
Inlet Dimension | 1 1/4" BSPF |
Discharge Dimension | 1" BSPF |
Motor Size | 1.5kW |
Full Load Current (FLC) | 9.7A |
Voltage | 240V 1Ph 50Hz |
Max Flow | 11m3/hr |
Max Head | 38m |
Max Pressure | 3.8 Bar |
Max Temperature | 90°C |
Material | Stainless Steel |
Country of Manufacture | Italy |
