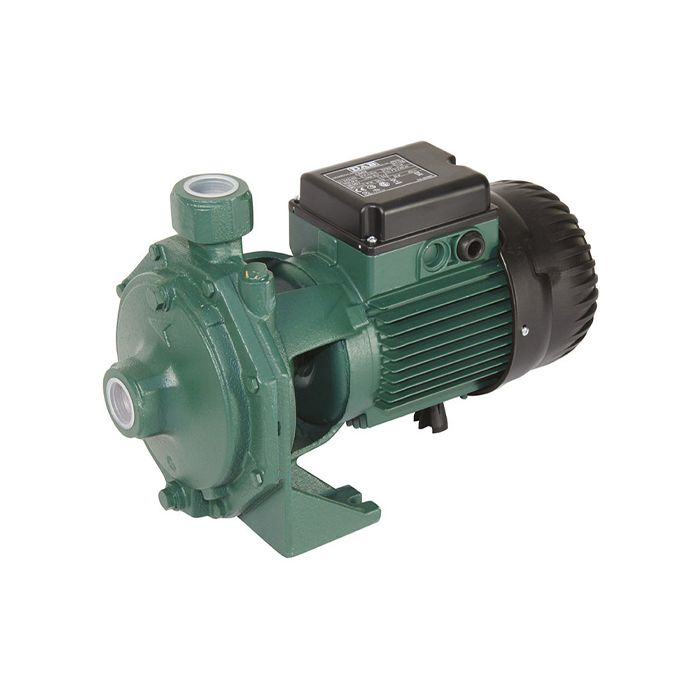

DAB K 66/100 M Twin-Impeller Centrifugal Pump 240v

SKU
60152449
MRRP £1,716.00 + VAT Our price £1,202.00 (+ VAT) Incl. VAT: £1,442.40

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

APPLICATIONS
Twin-impeller centrifugal pump designed for the realisation of pressurization units in water systems and filling of pressure vessels. Suitable for sprinkler systems and other general water supply uses.

CONSTRUCTION FEATURES OF THE PUMP
Pump body and motor support in cast iron.
Technopolymer impeller.
Carbon/ceramic mechanical seal.

CONSTRUCTION FEATURES OF THE MOTOR
Closed asynchronous type, external ventilation cooling. Rotor running on permanently lubricated ball bearings, oversized to ensure low noise and durability. Standard built-in thermo-amperometric protection. Capacitor permanently fitted on single phase versions. For the protection of the three-phase motor, we recommend the use of remote overload cut-outs, in compliance with current local regulations.
Construction according to CEI 2-3.
IE2 motors as standard, from 0,75 kW to 5,5 kW - IE3 ≥ 7,5 kW

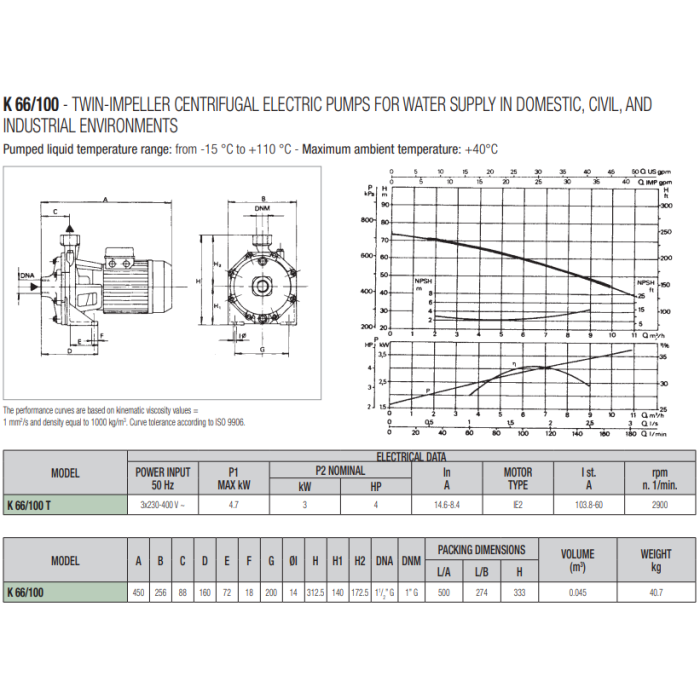

More Information
SKU 60152449
Manufacturers DAB
Manufacturers Warranty 2 Years
Weight 41.0 Kg
Dimensions 312mm (h) x 450mm (w) x 256mm (d)
Inlet Dimension 1 1/2" BSPF
Discharge Dimension 1" BSPF
Motor Size 3kW
Full Load Current (FLC) 14.6-8.4A
Voltage 240V 1Ph 50Hz
RPM 2900rpm
Max Flow 10m3/hr
Max Head 70m
Max Pressure 7 Bar
Max Temperature 110 °C
Material Cast Iron
Seal Type Carbon/Ceramic
Impeller Material Technopolymer
Country of Manufacture Italy
