DAB KCV 150 T IE3 In-Line Pump 415v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
APPLICATIONS
Pumping of water or other non-aggressive, non-explosive liquids, free from solid particles or fibres. Particularly suited for pumping water containing glycol for air conditioning systems.
PLUS
Versatile: thanks to the high quality construction materials used and the oversized motors, the KC and KCV range can be used in environments with temperatures up to 65 °C, and glycol percentages of up to 40% of the pumped liquid.
Reliable: all the components have been sized to guarantee a minimum life time of at least 50,000 hours of operation (with the exception of the bearings and the mechanical seals, for which the average life guaranteed is 25,000 hours in the most demanding conditions). Rust-proof: all the components in contact with the liquid are made of thermoplastic material (polypropylene or noryl reinforced), and the pump shaft is made of stainless steel (AISI 304). Flexible: possibility of rotating the pump body at 90 °C for better installation flexibility. Complete hydraulics (pump body, seal holder flange, impeller, diffuser) made of fibreglass reinforced technopolymer, shaft extension in contact with the liquid made of AISI 304 stainless steel.
CONSTRUCTION FEATURES OF THE PUMP
Silicon carbide/graphite mechanical seal, EPDM O rings
CONSTRUCTION FEATURES OF THE MOTOR
- Continuous service external ventilation asynchronous motor (S1), 2 poles - Sealed ball bearings, resistant to water and humidity
- Maximum ambient temperature: 65 °C - Motor construction in accordance with EN 60335-2-41.

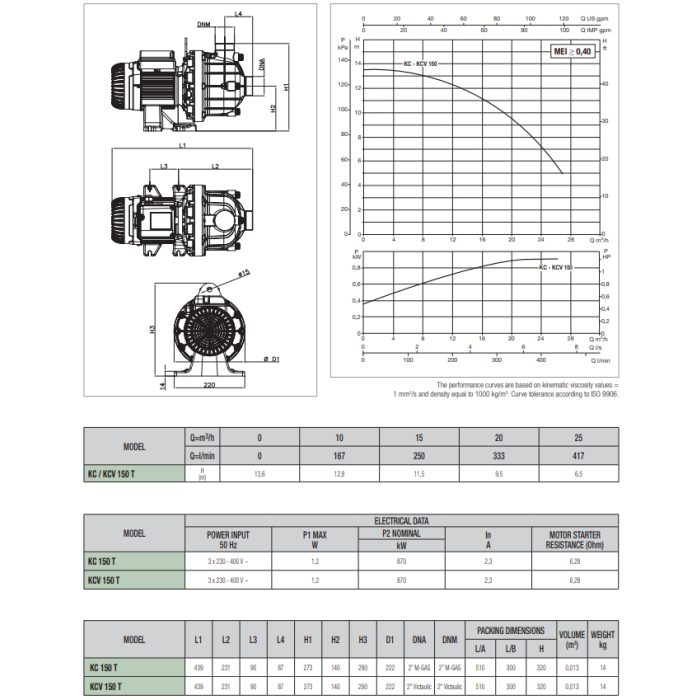

| SKU | 60180132 |
|---|---|
| Manufacturers | DAB |
| Manufacturers Warranty | 2 Years |
| Weight | 14.0 Kg |
| Dimensions | 273mm (h) x 439mm (w) x 222mm (d) |
| Inlet Dimension | 2" BSPF |
| Discharge Dimension | 2" BSPF |
| Motor Size | 0.87kW |
| Full Load Current (FLC) | 2.3A |
| Voltage | 415V 3Ph 50Hz |
| Max Flow | 27m3/hr |
| Max Head | 13m |
| Max Pressure | 1.3 Bar |
| Max Temperature | 55°C |
| Material | Cast Iron |
