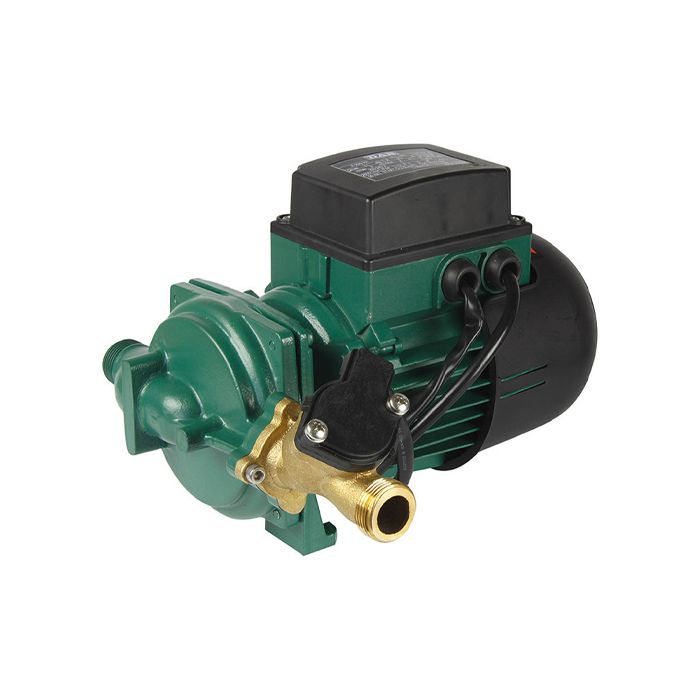

DAB K 40/22 HA Centrifugal Pressure Boosting Pump 240v

APPLICATIONS
K-HA single impeller centrifugal pump is designed for water pressure boosting in households, flats (domestic properties) to provide additional pressure to hot and cold water taps and similar outlet points. K-HA centrifugal pump is mainly for use in open vented systems(tanks), but may also be installed directly on the incoming water mains supply to feed a boiler, provided approval has been obtained from the local Water Company. The pump incorporates a flow switch which starts and stops the pump according to flow when a tap is opened or closed. The pump is supplied with a 0,3 meter power cable.

CONSTRUCTION FEATURES OF THE PUMP
- Cast iron pump body and motor support with cataphoresis coating.
- Brass flow switch body.
- Technopolymer impeller.
- Carbon / ceramic mechanical seal.
PLUS
- Flow switch in brass, directly assembled on the delivery port of the pump body (45° from vertical)
- Automatic (by flow switch) or manual operating modes
- Easy way fixing bracket
- Rubber foot to increase pump stability
- Silent operating

CONSTRUCTION FEATURES OF THE MOTOR
Induction motor, closed and cooled with external ventilation.
Rotor mounted on oversized greased sealed-for-life ball bearings to ensure silent running and long life.
Built-in thermal and current overload protection and a capacitor permanently in circuit.
Motor protection: IP 44.
Insulation class: F.
Standard voltage: single phase ~220V / 50 Hz.
Motor construction in conformity with standards CEI 2-3 - CEI 61-69 (EN 60335-2-41).
