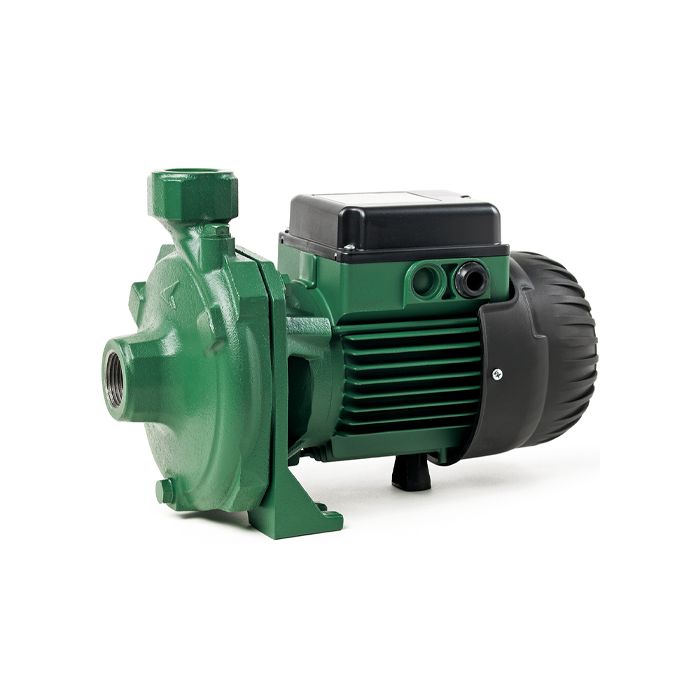

DAB K 20/41 T Single-Impeller Centrifugal Pump 415v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
APPLICATIONS
Single-impeller centrifugal pump suitable for domestic, civil, industrial and agricultural systems, and for decanting, mixing and irrigation uses.
CONSTRUCTION FEATURES OF THE PUMP
Pump body and motor support in cast iron.
Technopolymer or cast iron impeller, as per the TECHNICAL DATA table.
Carbon/ceramic mechanical seal.
CONSTRUCTION FEATURES OF THE MOTOR
Closed asynchronous type, external ventilation cooling.
Rotor running on ball bearings, oversized to ensure low noise and durability.
Standard built-in thermo-amperometric protection. Capacitor permanently fitted on single phase versions.
For the protection of the three-phase motor, we recommend the use of remote overload cut-outs, in compliance with current local regulations.
Construction according to CEI 2-3.
IE2 motors as standard, from 0,75 kW to 5,5 kW - IE3 ≥ 7,5 kW
| SKU | 102110014 |
|---|---|
| Manufacturers | DAB |
| Manufacturers Warranty | 2 Years |
| Weight | 10.0 Kg |
| Dimensions | 205mm (h) x 275mm (w) x 160mm (d) |
| Inlet Dimension | 1" BSPF |
| Discharge Dimension | 1" BSPF |
| Motor Size | 0.37kW |
| Full Load Current (FLC) | 2.3-1.3A |
| Voltage | 415V 3Ph 50Hz |
| RPM | 2800rpm |
| Max Flow | 6m3/hr |
| Max Head | 20m |
| Max Pressure | 2 Bar |
| Max Temperature | 50°C |
| Material | Cast Iron |
