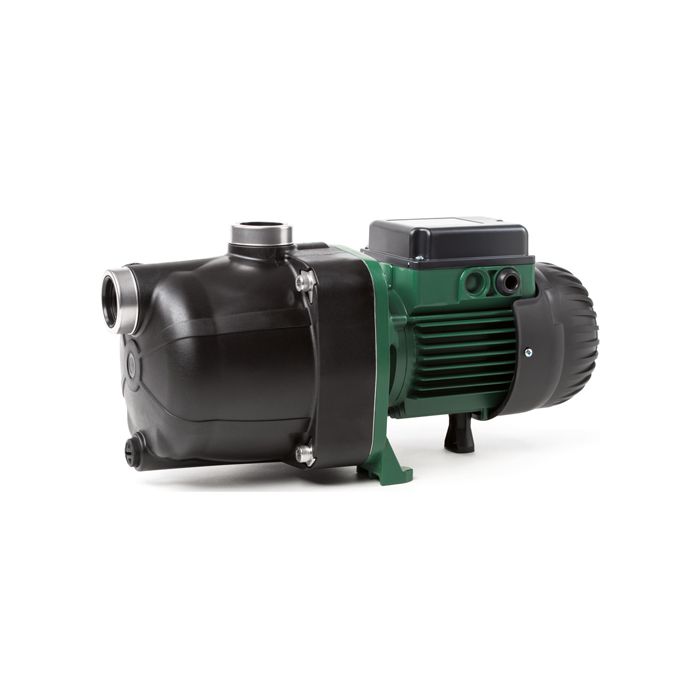

DAB EuroCom SP 40/50 T-IE3 Swimming Pool Pump 415v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
APPLICATIONS
Multi-stage centrifugal pump with horizontal shaft, featuring extremely quiet operation suitable for domestic water supply and pressurisation, irrigation of gardens and general water movement.
CONSTRUCTIONAL FEATURES OF THE PUMP
Pump body in technocpolymer. Motor support in die cast aluminium, with seal holder cover in AISI 304 stainless steel. Carbon/ceramic mechanical seal. Rotor shaft in AISI 304 stainless steel. Impeller and diffuser bodies and diffuser in technopolymer. Stainless steel wear ring.
CONSTRUCTIONAL FEATURES OF THE MOTOR
Asynchronous, continuous service motor. Incorporated thermo-amperometric protection and permanently inserted capacitor in the single phase version. Overload protection to be provided by the user for the three-phase version.
| SKU | 60179420 |
|---|---|
| Manufacturers | DAB |
| Manufacturers Warranty | 2 Years |
| Weight | 13.0 Kg |
| Dimensions | 203mm (h) x 422mm (w) x 170mm (d) |
| Connection Type | 1 Inch BSP Female |
| Motor Size | 0.75kW |
| Full Load Current (FLC) | 3.8-2.2A |
| Voltage | 415V 3Ph 50Hz |
| Max Flow | 4.5m3/hr |
| Max Head | 58m |
| Max Pressure | 5.8 Bar |
| Max Temperature | 35°C |
| Material | Cast Iron |
