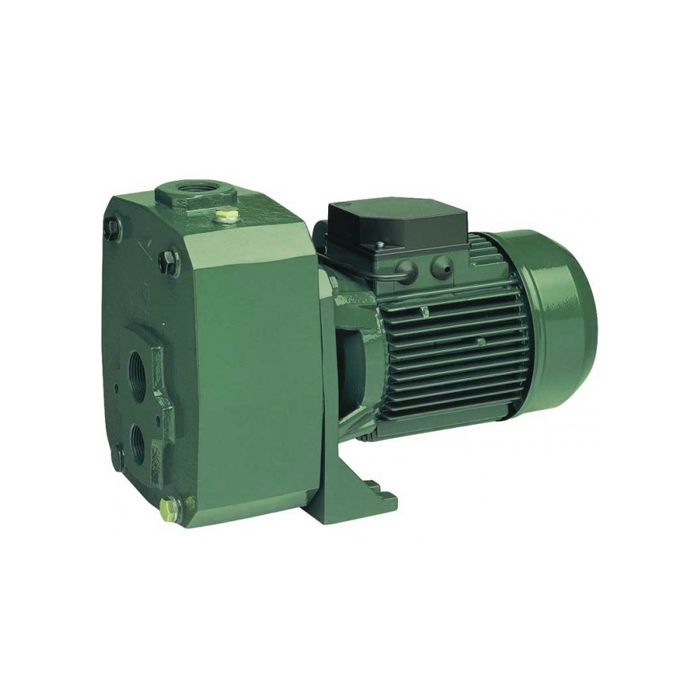

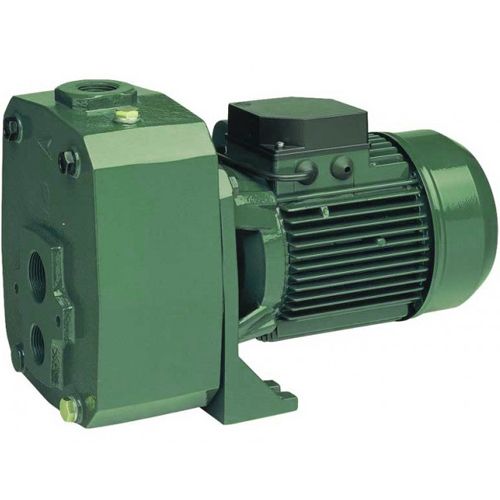

DAB DP 251 T-IE3 Self-Priming Pump 415V
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
APPLICATIONS
Self priming centrifugal pump for suction up to 27 metres, reached by using the ejector to be inserted in wells from 4” in diameter or larger. Used for water supply in large country homes and small farms.
CONSTRUCTIONAL FEATURES OF THE PUMP
Pump: Cast-iron pump body and motor support. Impeller and diffuser in technopolymer.
Stainless steel wear ring. Carbon/ceramic mechanical seal.
Ejector: Body in cast iron Venturi tube in technopolymer A and nozzle in brass
The ejector is available in three models (E 20 - E 25 - E 30) depending on the performance required. **Please note that the ejector is not included and must be purchased from the related accessories section.**
CONSTRUCTIONAL FEATURES OF THE MOTOR
Rotor mounted on oversized greased-for-life ball bearings. Incorporated thermo-amperometric protection and permanently inserted capacitor in the
single phase version. It is recommended to use remote overload protection for three phase motors, in compliance with current legislation. Manufactured
pursuant to CEI 61-69 (EN 60335-2-41).
| SKU | 60179924 |
|---|---|
| Manufacturers | DAB |
| Manufacturers Warranty | 2 Years |
| Weight | 28.0 Kg |
| Dimensions | 155mm (h) x 388mm (w) x 210mm (d) |
| Inlet Dimension | 1 1/4" BSPF |
| Discharge Dimension | 1" BSPF |
| Motor Size | 1.85kW |
| Full Load Current (FLC) | 5.6-3.2A |
| Voltage | 415V 3Ph 50Hz |
| Max Temperature | 35°C |
| Material | Cast Iron |
