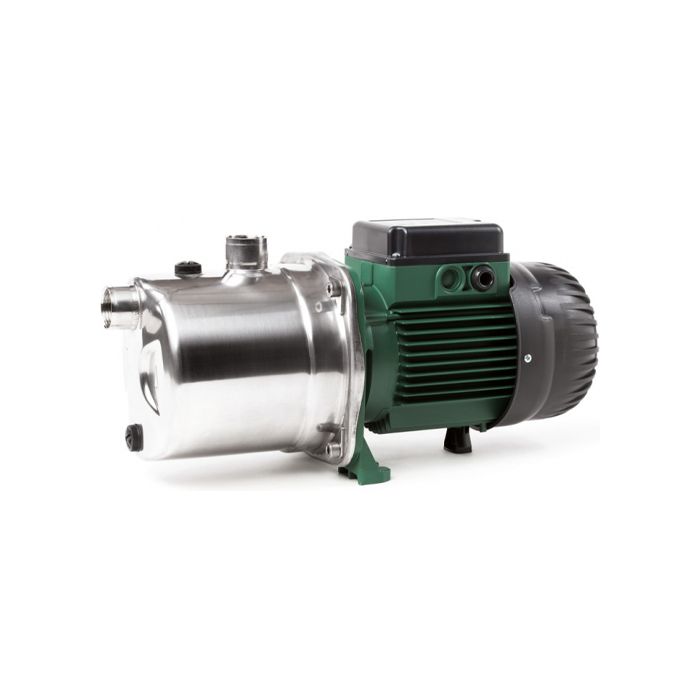

DAB JETINOX 82 T Self-Priming Pump 415v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
APPLICATIONS
Self priming centrifugal pump with excellent suction capacity even in the presence of air bubbles. Suitable for pumping water with low levels of sandy impurities. Especially used in domestic water supply installations. Suitable for small farms and gardening, small scale industrial services and where self priming is necessary.
CONSTRUCTIONAL FEATURES OF THE PUMP
Pump body, seal holder cover and wear ring in stainless steel.
Motor support in die cast aluminium.
Impeller, diffuser, venturi tube in technopolymer.
Carbon/ceramic mechanical seal.
CONSTRUCTIONAL FEATURES OF THE MOTOR
Asynchronous type, closed, with external air cooling.
Rotor mounted on oversized greased-for-life ball bearings, to guarantee low noise and long life.
Incorporated thermo-amperometric protection and permanently inserted capacitor in the single phase version.
It is recommended to use overload protection for three phase motor protection, in compliance with current legislation.
Manufacture pursuant to CEI 2-3 and CEI 61-69 (EN 60335-2-41) standard.
| SKU | 102640030 |
|---|---|
| Manufacturers | DAB |
| Manufacturers Warranty | 2 Years |
| Weight | 8.0 Kg |
| Dimensions | 197mm (h) x 406mm (w) x 174mm (d) |
| Connection Type | 1 Inch BSP Female |
| Motor Size | 0.6kW |
| Full Load Current (FLC) | 2.8/1.6A |
| Voltage | 415V 3Ph 50Hz |
| Max Flow | 4m3/hr |
| Max Head | 46m |
| Max Pressure | 4.6 Bar |
| Max Temperature | 35°C |
| Material | Stainless Steel |
