DAB FEKAFOS 1200 MAXI - DN65 + CV65 Draining Tank with Valve Chamber + Filter Grill + Anti-Intrusion Grid

SKU
60190454
MRRP £11,542.00 + VAT Our price £8,080.00 (+ VAT) Incl. VAT: £9696.00

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

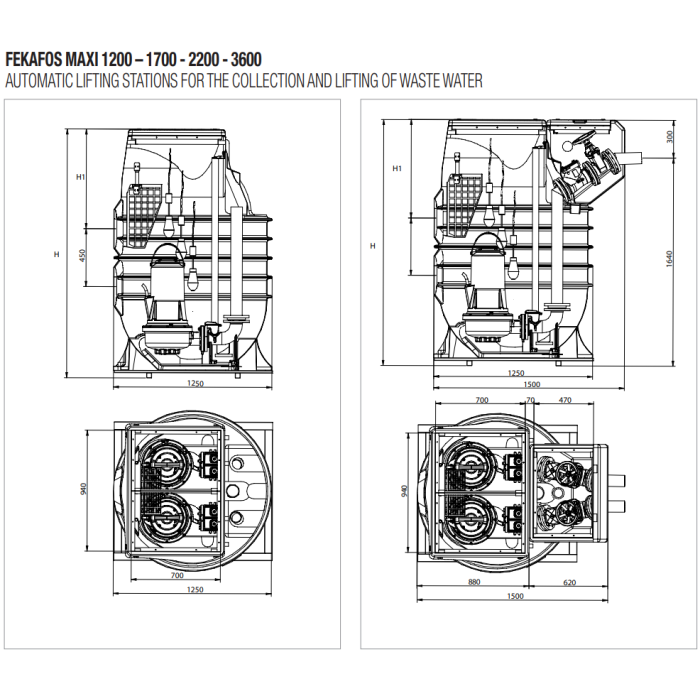

Fekafos Maxi Tank with valve chamber, filter grill and anti-intrusion grid.

APPLICATIONS:
Automatic collection and lifting station suitable for clear and rainwater or civil and industrial waste. Composed of a cylindrical polyethylene monoblock with a suitably shaped bottom to house the pumps and to avoid stagnation. The upper inlet is equipped with lids with locking clasps and anti-odour seals. The station is set up for the use of two single-phase non-automatic or three-phase pumps with a discharge diameter from DN50 to DN80.

CONSTRUCTION CHARACTERISTICS:
CAPACITY: 1200 / 1700 / 2200 / 3600 L
MATERIALS: High density polyethylene

CONNECTIONS:
• DN DN125 / DN160 inlets
• DN 50 ventilation
• 2xDN50 / 2xDN65 / 2xDN80 outlets

COMPONENTS INCLUDED:
• 2 coupling units in grey cast iron for insertion and extraction of pumps
• stainless steel guide tubes
• PVC “T” inlet fitting
• 2 polyethylene outlet pipes
• 3 Bulb floats
• Lids with locking clasps and polyethylene anti-odour seals

ACCESSORIES ON REQUEST:
• Valve inspection section complete with two gate valves and grey cast iron check valves
• Anti-intrusion grating.
• Filter basket

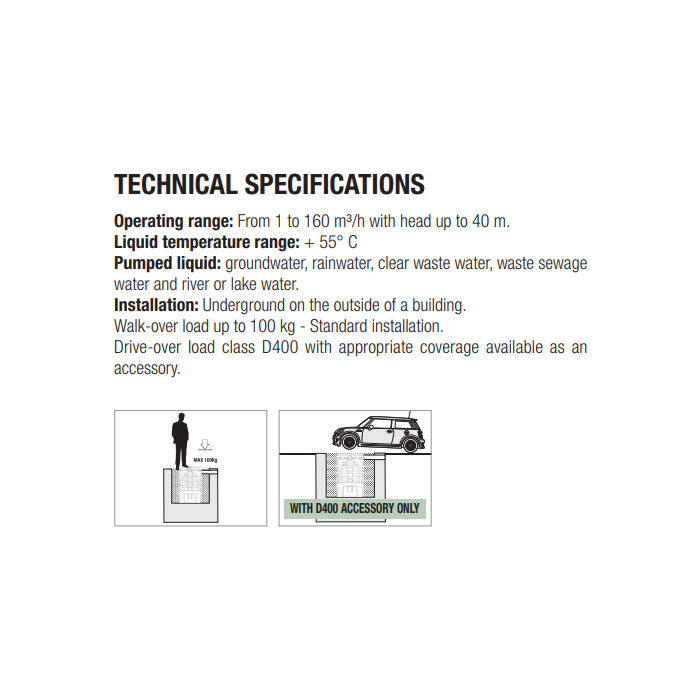

• Drive-over frame D400 1200x1200 (To be fixed on site in the concrete structure surrounding the tank)

More Information
SKU 60190454
Manufacturers DAB
Manufacturers Warranty 2 Years
Weight 170.0 Kg

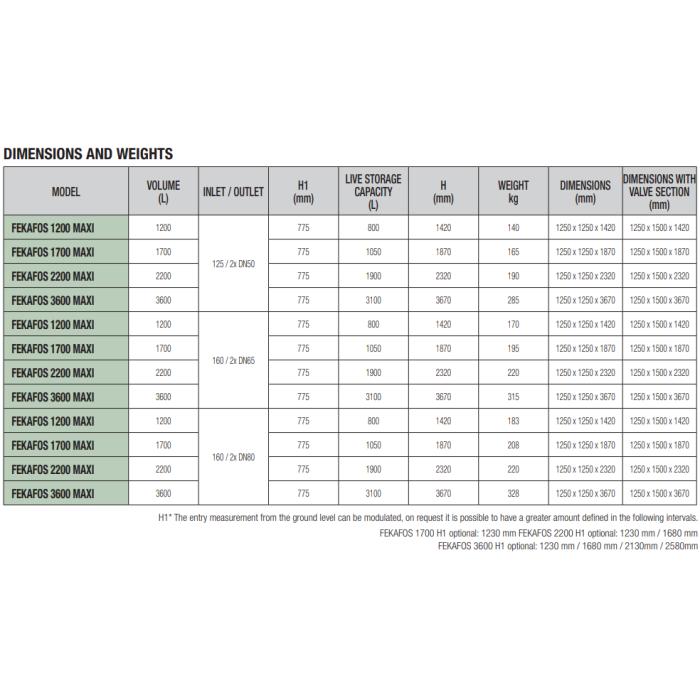

Dimensions 1420mm x 1500mm (Height x Width)
Inlet Dimension DN160
Discharge Dimension DN65
Material Plastic
Country of Manufacture Italy
