DAB FEKA VS 550 T-NA Submersible Wastewater Pump 415v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below

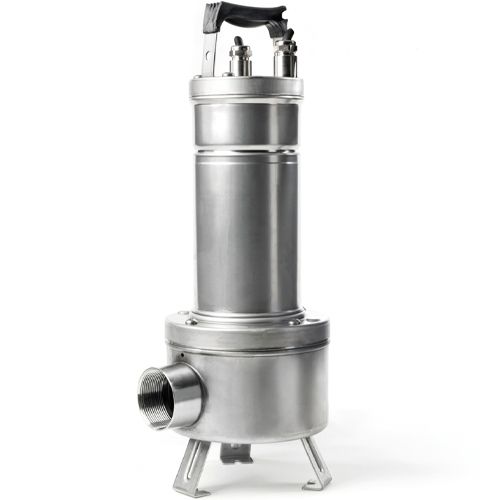

DAB FEKA VS 550 T-NA Submersible Wastewater Pump 415v - 103040020
APPLICATIONS Stainless steel submersible centrifugal pump with microcast steel liquid vortex impeller, suitable for lifting sewage and drain water in general containing solid matter with size up to 50 mm.
CONSTRUCTION FEATURES OF THE PUMP AISI 304 stainless steel pump body, seal cover, motor cover, and cap with handle. Microcast steel impeller. Insulating rubber covered handle. AISI 316 stainless steel motor shaft. Double mechanical seal with interposed oil chamber (non-toxic oil) in carbon-alumina on the motor side, and silicon carbide/ silicon carbide on the pump side.
CONSTRUCTION FEATURES OF THE MOTOR Dry, asynchronous and waterproof motor, cooled by the pumped liquid. Rotor running on permanently lubricated ball bearings, selected to ensure low noise and durability. Overcurrent protection as standard for the single-phase version, optional for the three-phase version. Permanently connected capacitor in the single-phase version. Continuous duty with liquid temperature 35 °C and completely submerged pump. The single-phase version can be supplied with float for automatic operation. Power cable: 10 metre H07RN-F, with plug for the single-phase version. Number of poles: 2 Max starts/hour: 20
| SKU | 103040020 |
|---|---|
| Weight | 16.0 Kg |
| Dimensions | 492mm (h) x 203mm (dia) |
| Manufacturers | DAB |
| Manufacturers Warranty | 2 Years |
| Material | Stainless Steel |
| Impeller Material | AISI 304 Microcast Steel |
| Connection Type | 2 Inch BSP Female |
| Voltage | 415V 3Ph 50Hz |
| Max Flow | 20m3/hr |
| Max Head | 7m |
| Full Load Current (FLC) | 1.64A |
| Motor Size | 0.9kW |
| Immersion Depth | 7m |
