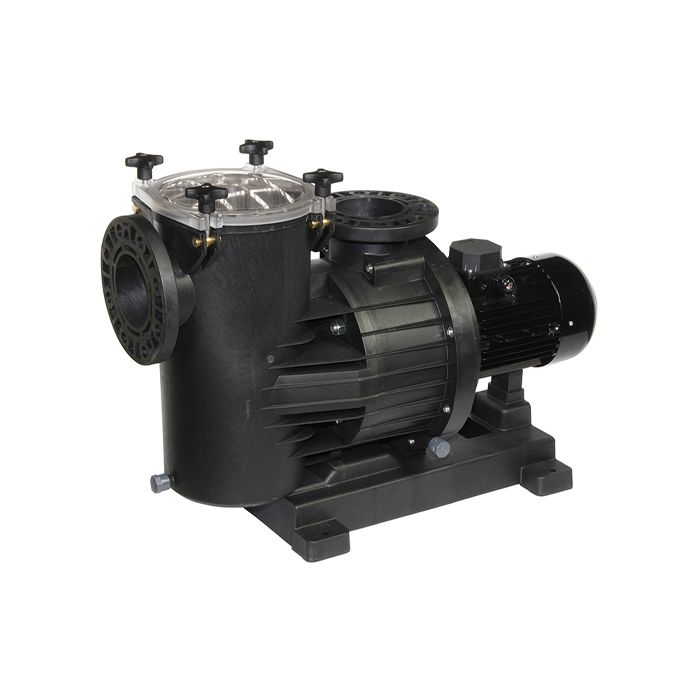

DAB EuroPro 1500 T-IE3 High Flow Swimming Pool Pump 415v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
APPLICATIONS
High performance self-priming centrifugal electric pumps with built-in high capacity prefilter. 2 or 4 pole motor completely isolated from the water. Extremely quiet and highly reliable, developed for water circulation and filtration in large swimming pool filtration systems. Thanks to the AISI 316 mechanical seal, they are also suitable for specific applications for the circulation of sea water.
CONSTRUCTION FEATURES OF THE PUMP:
Prefilter body, pump body, volute, counter volute, and pump body cover in fibre glass reinforced technopolymer resistant to swimming pool chemical agents. Polyethylene prefilter canister. Transparent polycarbonate prefilter cover with four-knob closing system.
CONSTRUCTION FEATURES
External ventilation closed asynchronous motor, 2 or 4 poles, depending on the model, with a wide power range from 3 to 15 HP.
| SKU | 60169142 |
|---|---|
| Manufacturers | DAB |
| Manufacturers Warranty | 2 Years |
| Weight | 86.0 Kg |
| Dimensions | 590mm (h) x 840mm (w) x 370mm (d) |
| Motor Size | 11kW |
| Full Load Current (FLC) | 20.9A |
| Voltage | 415V 3Ph 50Hz |
| RPM | 2850rpm |
| Max Flow | 195m3/hr |
| Max Head | 22m |
| Max Pressure | 2.2 Bar |
| Max Temperature | 40°C |
| Material | Plastic |
