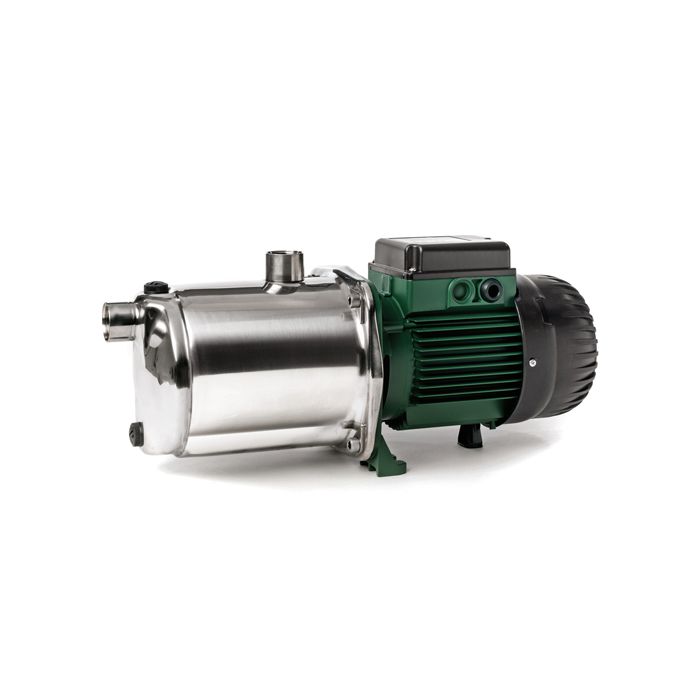

DAB EUROINOX 40/80 M Multi-Stage Pump 240v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
APPLICATIONS
Multi-stage centrifugal pump with horizontal shaft, with excellent suction capacity even in the presence of air bubbles, featuring extremely quiet operation suitable for domestic water supply and pressurisation, irrigation of gardens and general water movement.
CONSTRUCTIONAL FEATURES OF THE PUMP
Pump body in stainless steel. Motor support in die cast aluminium, with seal holder cover in AISI 304 stainless steel. Carbon/ceramic mechanical seal.
Rotor shaft in AISI 304 stainless steel.
Impeller and diffuser bodies and diffuser in technopolymer.
Stainless steel wear ring.
CONSTRUCTIONAL FEATURES OF THE MOTOR
Asynchronous, continuous service motor.
Incorporated thermo-amperometric protection and permanently inserted capacitor in the single phase version.
Overload protection to be provided by the user for the three-phase version.
| SKU | 102970360 |
|---|---|
| Manufacturers | DAB |
| Manufacturers Warranty | 2 Years |
| Weight | 16.0 Kg |
| Dimensions | 203mm (h) x 458mm (w) x 174mm (d) |
| Inlet Dimension | 1" BSPF |
| Discharge Dimension | 1" BSPF |
| Motor Size | 1kW |
| Full Load Current (FLC) | 6.5A |
| Voltage | 240V 1Ph 50Hz |
| Max Flow | 7m3/hr |
| Max Head | 58m |
| Max Pressure | 5.8 Bar |
| Max Temperature | 35°C |
| Material | Stainless Steel |
