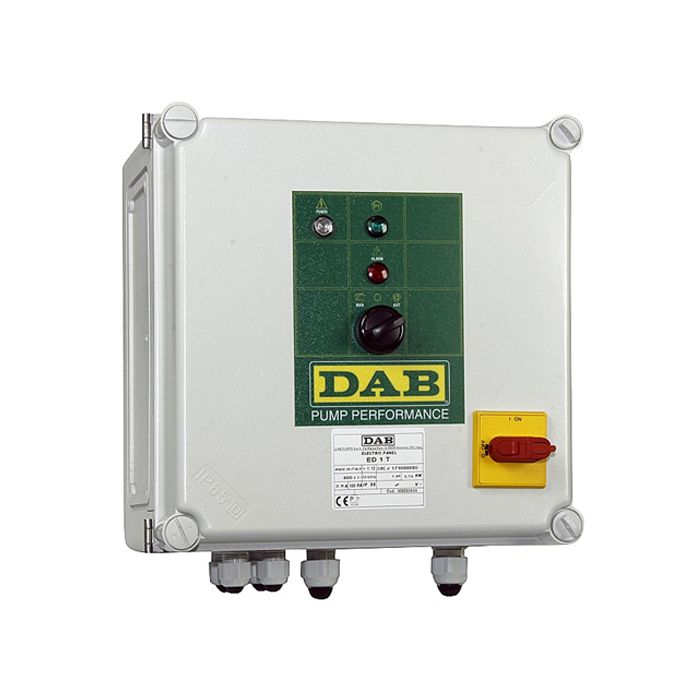

DAB ED7 5T SD MY15 Control Panel for 1 Pump

Name: DAB ED7 5T SD MY15 Control Panel for 1 Pump
Brand: DAB
SKU: 108320840
Price: 915 GBP
Availability: InStock

SKU

108320840

MRRP £1,307.00 + VAT Our price £915.00 (+ VAT) Incl. VAT: £1098.00

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

ED7 5T SD MY15

Supplied on the box in self-extinguishing thermoplastic material, complete with brackets for wall mounting. The framework is self-protected and protects the pump from overload, short circuits with manual reset. The models ED3M, ED3MHS, from ED2,5 to ED30T SD can handle the signal over temperature protection if the pump is provided with it. The models ED3MHS and ED2, 4MHS are provided with additional electrolytic condenser for high startup torque.

Complete with:
- Power line switch with pad lockable door handle (except in single-phase version)
- Self-protected transformer for the power supply of the external controls
- Terminals for connecting the electric pump and the float / pressure control switches
- Terminals without potential for controlling alarm and remote installation of an audible / visual alarm
- Button on the front panel for manual operation (single phase versions)
- Switch on the front panel for manual operation - 0 - Automatic
- Amperometric protection reports
- Pump running indicator
- Voltage indicator
- Limits of use ambient temperature: -10° C +40° C
- Degree of protection IP55

More Information
SKU	108320840
Manufacturers	DAB
Manufacturers Warranty	2 Years
Weight	9.0 Kg
Motor Size	5512W
Full Load Current (FLC)	16A
Voltage	415V 3Ph 50Hz
Cable Length	1.5m
Max Temperature	55°C
Material	Plastic
Country of Manufacture	Italy
