DAB E2D1 5M MY15 Control Panel for 2 Pumps

E2D1 5M MY15

APPLICATIONS:

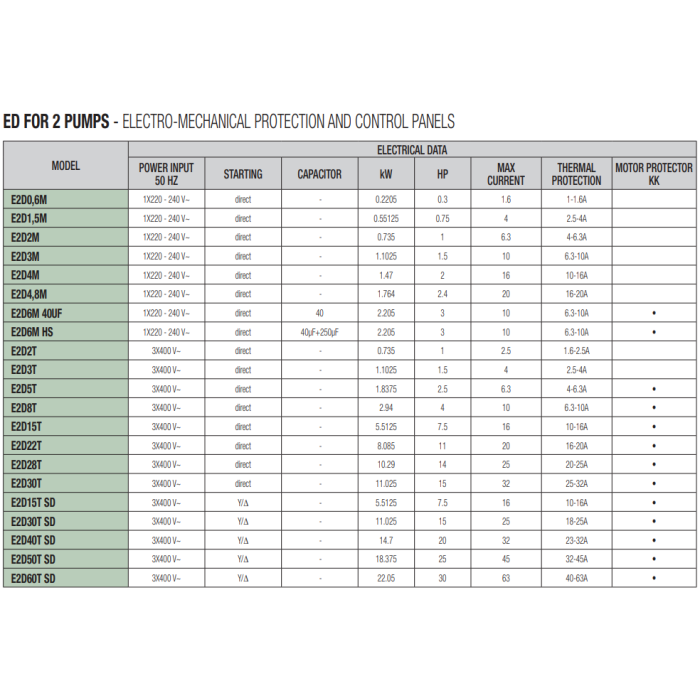

Control panels for automatic protection and control, through digital controls (floats, pressure switches, timers, etc.), of 2 single-phase or three-phase electric pumps, with direct star/triangle start Y/D.

CONTROL PANEL CONSTRUCTION:

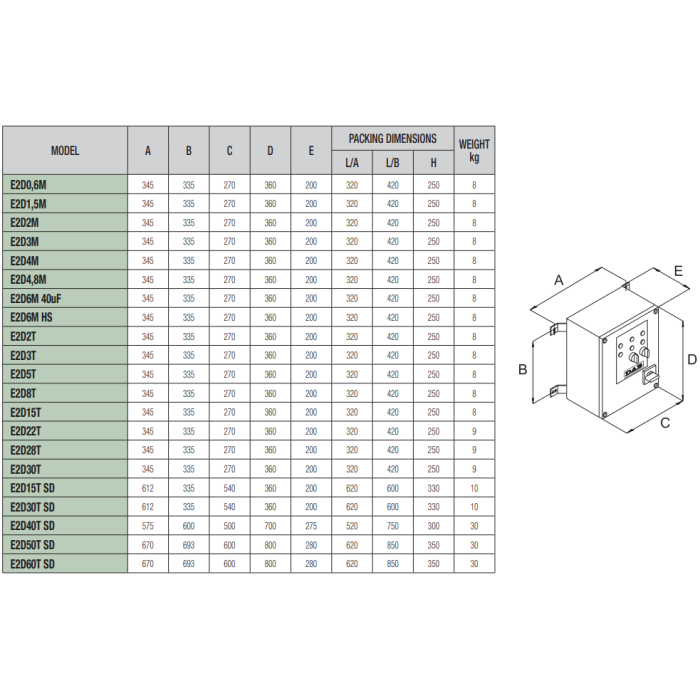

Panel construction to EN 60204-1 and EN 60439-1. Supplied on self-extinguishing thermoplastic material box with wall fastening bracket. The control panel is self-protected and protects the electric pump from overload, short circuit and power loss, with manual reset, and from over-temperature, with automatic reset.

Supplied on the box in self-extinguishing thermoplastic material and in metal models E2D50TSD and E2D60TSD, complete with brackets for wall mounting. The framework is self-protected and protects the pump from overload, short circuits with manual reset. The models E2D6M, E2D6MHS, from E2D5T to E2D60T SD can handle the signal over temperature protection if the pump is provided with it. The models E2D6MHS IS provided with additional electrolytic condenser for high startup torque.

COMPLETE WITH:
- Power line switch with pad lockable door handle (except in single-phase version)
- Self-protected transformer for the power supply of the external controls - Exchange model for the alternation of starting pumps
- Terminals for connecting the electric pump and the float / pressure control switches
- Terminals without potential for controlling alarm and remote installation of an audible / visual alarm
- Button on the front panel for manual operation (single phase versions)
- Switch on the front panel for manual operation - 0 - Automatic
- Amperometric protection reports
- Pump running indicator
- Voltage indicator
- Limits of use ambient temperature: -10° C +40° C
- Degree of protection IP55

FRONT PANEL NOTIFICATION:
- Red lamp, overload protection activation.
- Green lamp, pump in operation.
- White lamp, auxiliary circuits working correctly.
- Red lamp, dry run or maximum pressure.
