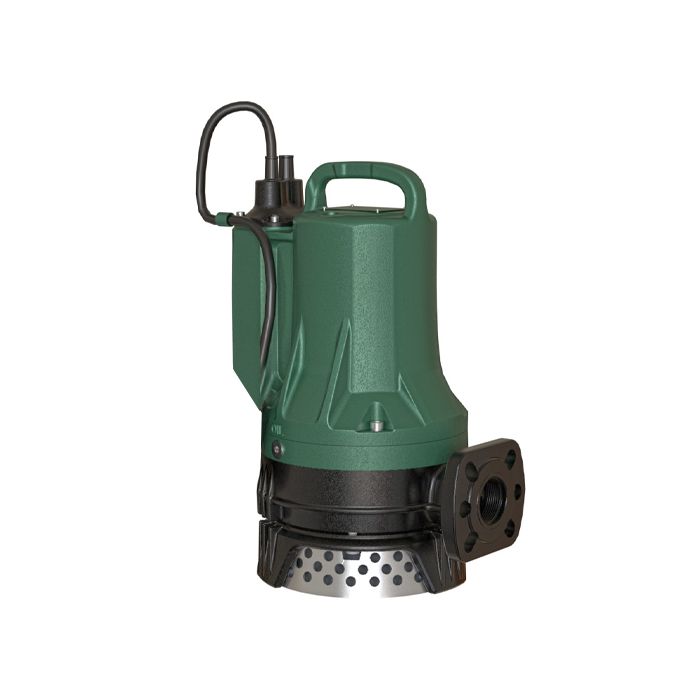

DAB Drenag FX 15.22 TNA Submersible Wastewater Pump 415v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
DAB Drenag FX 15.22 TNA Submersible Wastewater Pump 415v - 60191277
Drenag FX is a submersible pump for the drainage water, groundwater or rainwater in commercial building service; The pump is suitable for applications with high prevalence. The pump is certified according to the wastewater standard EN 12050-2. Suitable for fixed installations with a coupling device or mobile if placed directly on the bottom of the tank. It is designed for quick maintenance thanks to a constructive solution that provides easy access to the main components of the pump. Automatic versions with power up to 1.5 kW. ATEX version available for use in potentially explosive environments. (ATEX certifications: II2G Ex db k IIB T4 or IEC EX: Ex db IIB T4 Gb).
CONSTRUCTION FEATURES OF THE PUMP
Open impeller and wear-resistant rubber disc for the use even in the presence of abrasive particles. Pump body and impeller in spheroidal cast iron. Motor shaft in AISI 304 stainless steel. Double mechanical seal in SiC-SiC/SiC-C in oil chamber not in contact with the pumped liquid. Delivery port both flanged and threaded.
CONSTRUCTION FEATURES OF THE MOTOR
Single-phase asynchronous motor (MA / MNA versions) and three-phase (TNA versions). Rotor mounted on lubricated bearings. Continuous operation in S1 with the motor completely immersed. Dry running for a maximum time of 10 minutes. Over-temperature sensors in the motor windings with intervention threshold at +130°C. Cable glande with resin, 07RN8-F power cable with quick connection. Single-phase versions with integrated capacitor, available with float for automatic operation (MA version) with power up to 1.5 kW. In the three-phase motors the over-temperature sensor connection is responsibility of the user.
| SKU | 60191277 |
|---|---|
| Weight | 39.0 Kg |

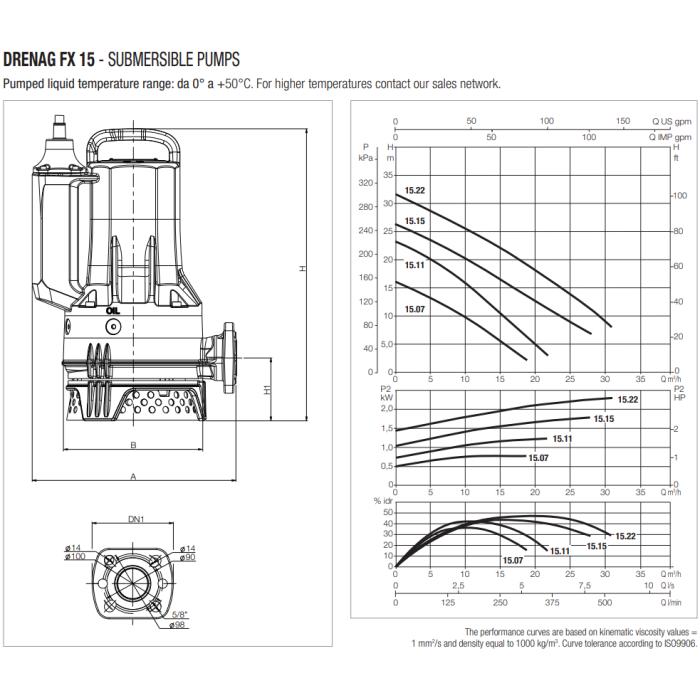

| Dimensions | 439mm (h) x 306mm (dia) |
| Manufacturers | DAB |
| Manufacturers Warranty | 2 Years |
| Material | Cast Iron |
| Impeller Material | Cast Iron |
| Connection Type | 1 1/2 Inch BSP Female |
| Voltage | 415V 3Ph 50Hz |
| Max Flow | 31m3/hr |
| Max Head | 32m |
| Full Load Current (FLC) | 5.2A |
| Motor Size | 3.1kW |
| Cable Length | 10m |
| Immersion Depth | 20m |
