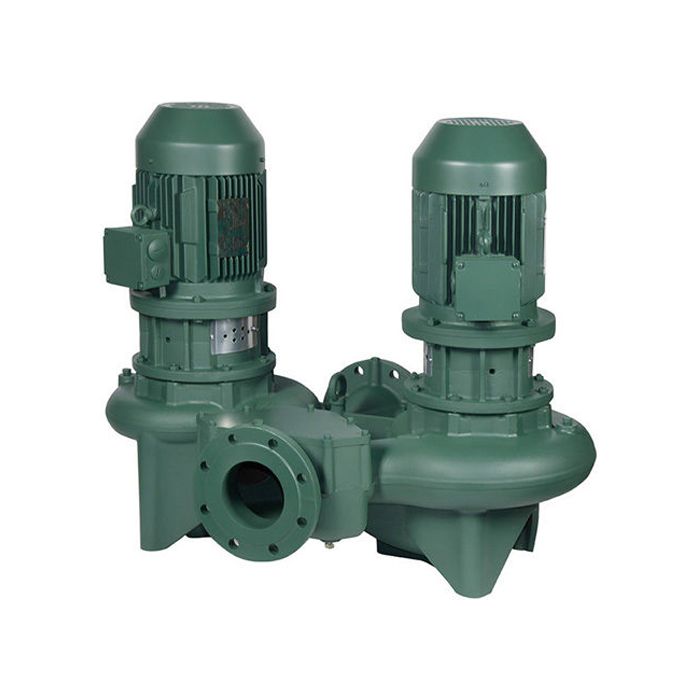

DAB DCP-G 65-6150/A/BAQE/18.5-IE3 Twin Head In-Line Circulator Pump 415v

Name: DAB DCP-G 65-6150/A/BAQE/18.5-IE3 Twin Head In-Line Circulator Pump 415v
Brand: DAB
SKU: 60167351
Price: 8967 GBP
Availability: InStock

SKU

60167351

MRRP £12,810.00 + VAT Our price £8,967.00 (+ VAT) Incl. VAT: £10760.40

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

APPLICATIONS
In-line port circulation pumps, suitable for heating, air conditioning, refrigeration and sanitary water systems. Available in the single and twin versions.

CONSTRUCTION FEATURES
PN10 - PN16 flanged suction and delivery ports with threaded holes for control manometers. Cast iron pump body and motor support, cast iron or technopolymer impeller depending on mode. Stainless steel motor shaft. External ventilation three-phase asynchronous motor. For its protection we recommend the use of remote overload cut-outs, in compliance with current local regulations.

More Information
SKU	60167351
Manufacturers	DAB
Manufacturers Warranty	2 Years
Weight	450.0 Kg
Dimensions	950mm (h) x 649mm (w) x 475mm (d)
Connection Type	65mm Flanged
Motor Size	18.5kW
Full Load Current (FLC)	32A
Voltage	415V 3Ph 50Hz
RPM	2947rpm
Max Flow	102m3/hr
Max Head	61m
Max Pressure	6.1 Bar
Max Temperature	140°C
Material	Cast Iron
