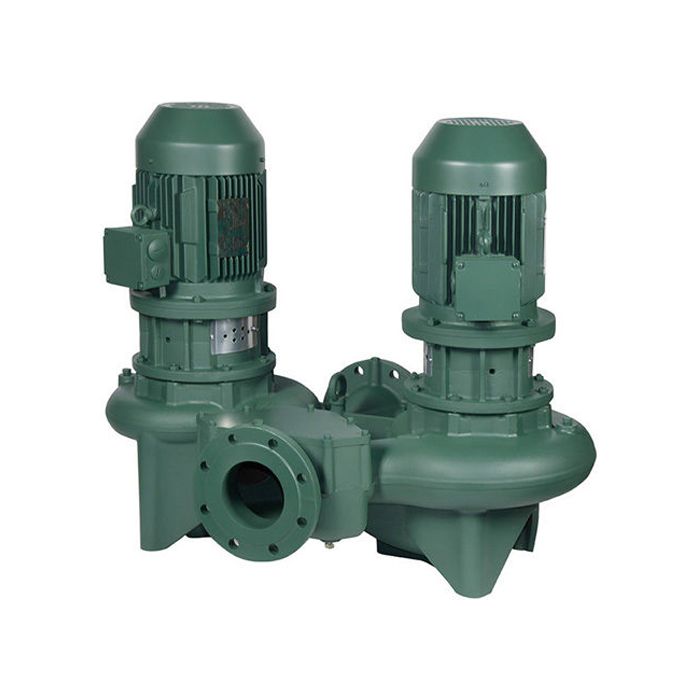

DAB DCP 50/2450 T-IE3 Twin Head In-Line Circulator Pump 415v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
APPLICATIONS
In-line port circulation pumps, suitable for heating, air conditioning, refrigeration and sanitary water systems. Available in the single and twin versions.
CONSTRUCTION FEATURES
PN10 - PN16 flanged suction and delivery ports with threaded holes for control manometers. Cast iron pump body and motor support, cast iron or technopolymer impeller depending on mode. Stainless steel motor shaft. External ventilation three-phase asynchronous motor. For its protection we recommend the use of remote overload cut-outs, in compliance with current local regulations.
| SKU | 60180114 |
|---|---|
| Manufacturers | DAB |
| Manufacturers Warranty | 2 Years |
| Weight | 66.0 Kg |
| Dimensions | 455mm (h) x 427mm (w) x 365mm (d) |
| Connection Type | 50mm Flanged |
| Motor Size | 3kW |
| Full Load Current (FLC) | 5.9A |
| Voltage | 415V 3Ph 50Hz |
| RPM | 2900rpm |
| Max Flow | 36m3/hr |
| Max Head | 25m |
| Max Pressure | 2.5 Bar |
| Max Temperature | 140°C |
| Material | Cast Iron |
