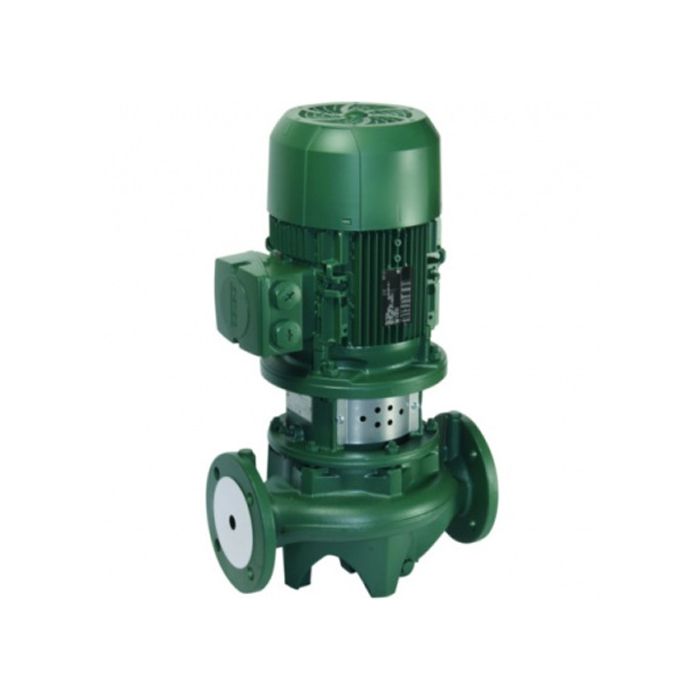

DAB CM-G 65-1530/A/BAQE/2.2-IE3 Single Head In-Line Circulator Pump 415v

SKU
1D4311G6W
MRRP £2,400.00 + VAT Our price £1,680.00 (+ VAT) Incl. VAT: £2,016.00

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

APPLICATIONS
In-line port circulation pumps, suitable for heating, air conditioning, refrigeration and sanitary water systems.
Available in the single and twin versions.

CONSTRUCTION FEATURES
PN 10 - PN 16 flanged suction and delivery ports with threaded holes for control manometers. Cast iron pump body and motor support, cast iron or technopolymer impeller depending on mode. Stainless steel motor shaft. External ventilation three-phase asynchronous motor. For its protection we recommend the use of remote overload cut-outs, in compliance with current local regulations.

More Information
SKU 1D4311G6W
Manufacturers DAB
Manufacturers Warranty 2 Years
Weight 96.0 Kg
Dimensions 644mm (h) x 475mm (w) x 344mm (d)
Connection Type 65mm Flanged
Motor Size 2.2kW
Full Load Current (FLC) 5A
Voltage 415V 3Ph 50Hz
RPM 1455rpm
Max Flow 55m3/hr
Max Head 15m
Max Pressure 1.5 Bar
Max Temperature 140°C
Material Cast Iron
