Calpeda TM 61E Peripheral Booster Pump 240V

SKU
TM-61e-CI
MRRP £235.00 + VAT Our price £153.00 (+ VAT) Incl. VAT: £183.60

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

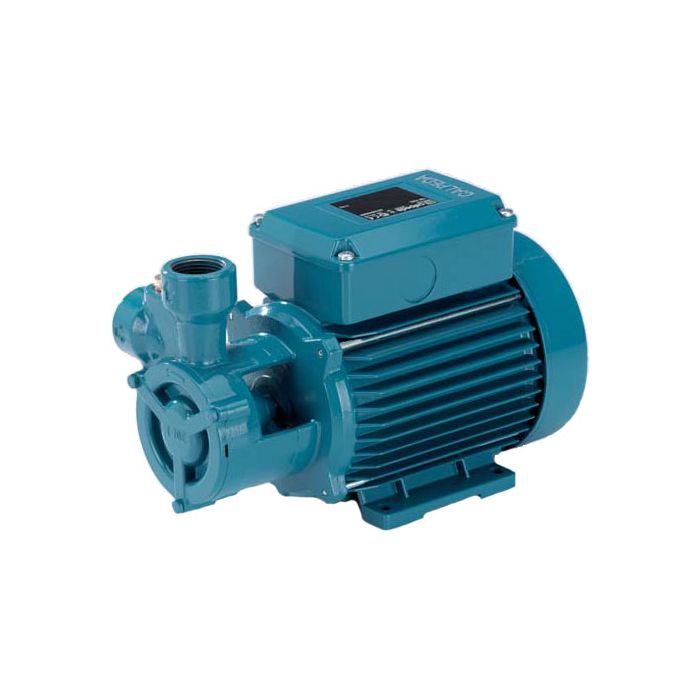

Calpeda TM 61E Peripheral Booster Pump 240V - TM-61e-CI

Calpeda T close-coupled peripheral pumps (regenerative) with turbine impellers.

T/TP: version with pump casing and lantern bracket in cast iron.

B-T/B-TP: version with pump casing and lantern bracket in bronze.



Suitable for pumping clean liquids without abrasives, without suspended solids,non-explosive, non-aggressive for the pump materials and increasing network pressure.

These pumps are well suited to being mounted in cooling and air-conditioning machines and equipment and for circulation and boiler feed.



Operating conditions:

  • Liquid temperature -10°C to +90°C
  • Ambient temperature up to 40°C
  • Total suction lift up to 7m
  • 1" Suction and Discharge Ports (screwed connection)
  • Suitable for continuous duty
More Information
SKU TM-61e-CI
Manufacturers Calpeda
Manufacturers Warranty 1 Year
Weight 6.3 Kg

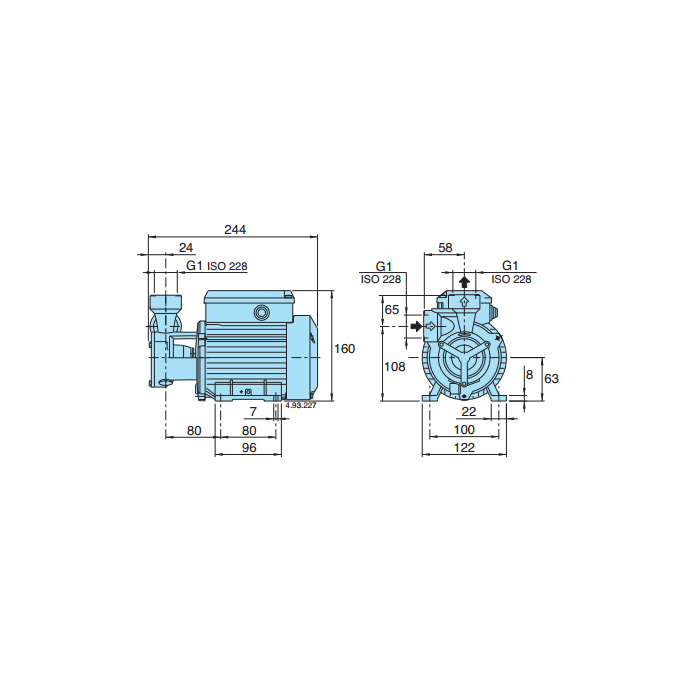

Dimensions 160mm High x 122mm Wide x 244mm Deep
Motor Size 0.33 kW
Voltage 240V 1Ph 50Hz
Max Flow 2.4 m3/hr
Max Head 38m
Material Cast Iron
Old Sku TM61E
