Calpeda T 61E EYXYKRY FPM Hot Oil Peripheral Booster Pump 415V

Name: Calpeda T 61E EYXYKRY FPM Hot Oil Peripheral Booster Pump 415V
Brand: Calpeda
SKU: 70020021031
Price: 402 GBP
Availability: InStock

SKU

70020021031

MRRP £573.00 + VAT Our price £402.00 (+ VAT) Incl. VAT: £482.40

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

Calpeda T 61E EYXYKRY FPM Hot Oil Peripheral Booster Pump 415V - 70020021031

Calpeda T close-coupled peripheral pumps (regenerative) with turbine impellers.

T/TP: version with pump casing and lantern bracket in cast iron.

Pump details:

T61E 230/400/3/50 EYXYKRY FPM (Hot Oil)

This pump is suitable for pumping low viscosity oils to a maximum temperature of 200°C.

Operating conditions:

Liquid temperature upto 200°C
Ambient temperature up to 40°C
Total suction lift up to 7m
1" Suction and Discharge Ports (screwed connection)
Suitable for continuous duty

More Information
SKU	70020021031
Manufacturers	Calpeda
Manufacturers Warranty	1 Year
Weight	6.3 Kg

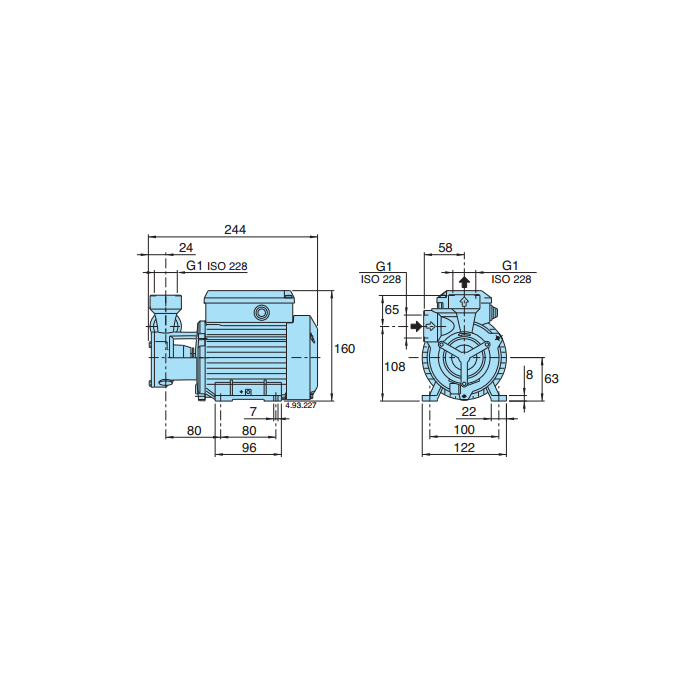

Dimensions	160mm High x 122mm Wide x 244mm Deep
Motor Size	0.33 kW
Voltage	415V 3Ph 50Hz
Max Flow	2.4 m3/hr
Max Head	38m
Material	Cast Iron
