Calpeda NMDM 20/110Z/A End Suction Threaded Pump 240V

SKU
NMDM20/110Z/A
MRRP £614.00 + VAT Our price £400.00 (+ VAT) Incl. VAT: £480.00

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Calpeda NMDM 20/110Z/A close coupled, centrifugal end suction pump with back-to-back impellers and screwed (threaded) connection, and 0.55kW (0.75HP) 240V 1Ph 50Hz motor - NMDM20/110Z/A

Calpeda NM and NMD threaded pump range are close-coupled, centrifugal pumps with electric motor and extended shaft directly connected to the pump.


NM:   single-impeller
NMD:  two back-to-back impellers (with axial thrust balancing).

The NM and NMD threaded pump range are suitable for the following applications:

  • Clean liquids without  non-aggressive abrasives ( solids content up to 0.2%)
  • Mains water supply
  • Heating, air-conditioning, cooling and circulation plants
  • Civil and industrial applications
  • Fire fighting applications
  • Irrigation
More Information
SKU NMDM20/110Z/A
Manufacturers Calpeda
Manufacturers Warranty 1 Year
Weight 14.0 Kg

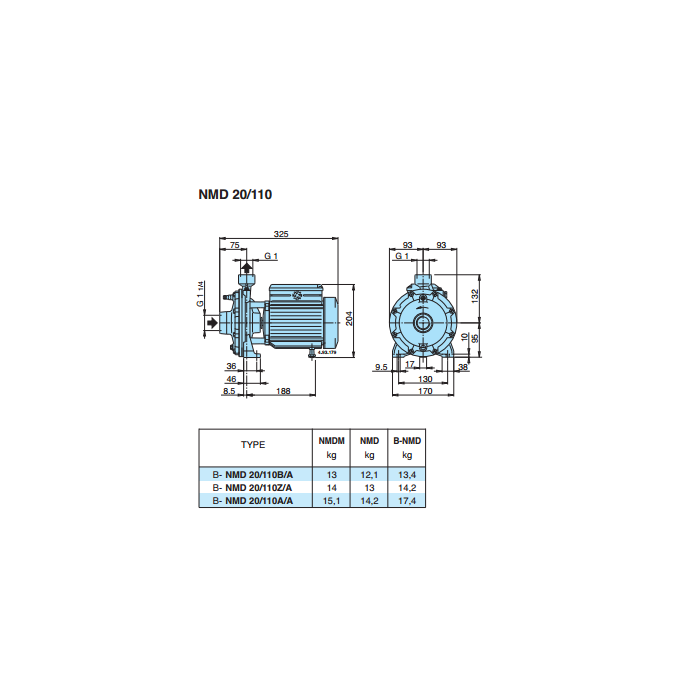

Dimensions 325mm (d) x 186mm (w) x 227mm (h)
Inlet Dimension 1 1/4" BSPF
Discharge Dimension 1" BSPF
Motor Size 0.55 kW
Full Load Current (FLC) 4.5A
Voltage 240V 1Ph 50Hz

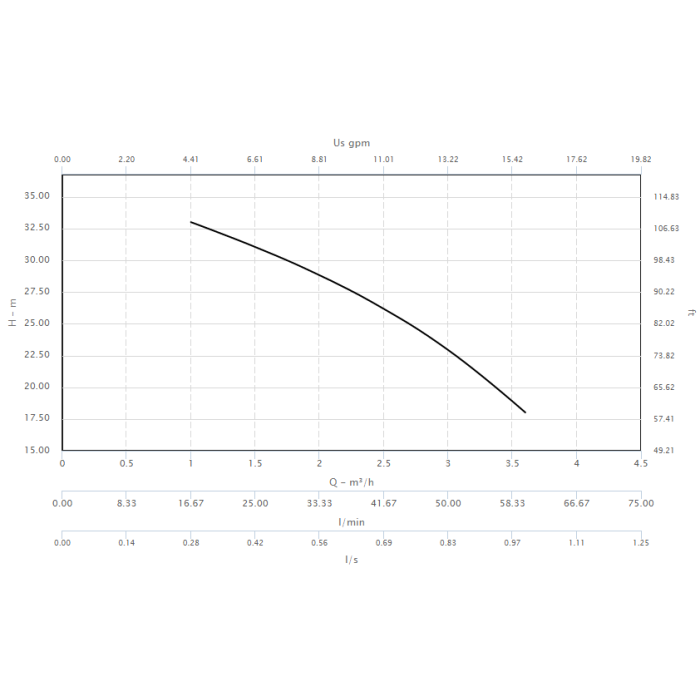

Max Flow 3.6m3/hr
Max Head 37m
Max Temperature 90°C
Material Cast Iron
